RS800V-ROLLER,SINGLE DRUM

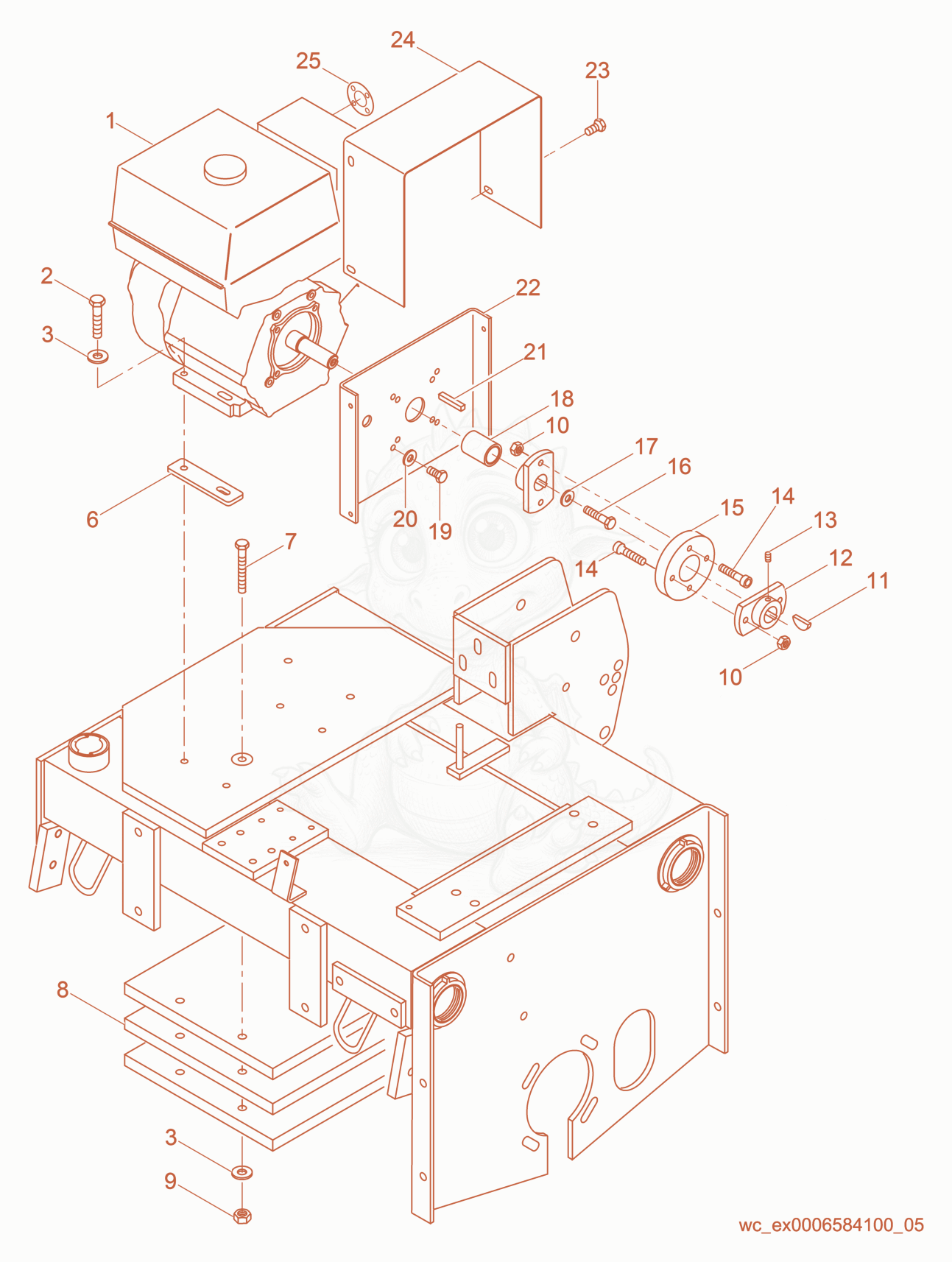

RS800V Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson RS800V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000086557Not stocked
    Vanguard engine×1
  • 25000011318
    $0.45
    SCREW M10 X 40 HX.HD. - 5000011318×4
  • 35000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×8
  • 65000073227Not stocked
    Spacer×2
  • 75000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×4
  • 85000072631
    $86.57
    PLATE-COUNTER WEIGHT - 5000072631×3
  • 95000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 105000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 115000027805
    $1.07
    KEY-WOODRUFF 1/4 X 1,#150 - 5000027805×1
  • 125000072130
    $491.91
    COUPLING-ROLLER DRIVE - 5000072130×2
  • 135000052444
    $0.48
    SCREW-SET 1/4-20 X 1/4,KNURLED - 5000052444×4
  • 145000011538
    $1.80
    SCREW M8 X 45 SOC.HD. - 5000011538×4
  • 155000073150
    $69.41
    COUPLING-FLEXIBLE,RUBBER - 5000073150×1
  • 165000025567
    $9.99
    SCREW 3/8-24 X 1 GR5,HX.LOCK - 5000025567×1
  • 175000025637
    $0.06
    WASHER 3/8 NOM,STEEL,FLAT - 5000025637×3
  • 185000080004
    $24.86
    SPACER-SHAFT - 5000080004×1
  • 195000052203
    $0.19
    SCREW 5/16-24 X 7/8 GR5,HX.HD. - 5000052203×4
  • 205000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×6
  • 215000052027
    $0.35
    KEY-SQUARE 1/4 X 7/8 - 5000052027×1
  • 225000086961
    $87.95
    PLATE-ENGINE FACE P-5000112006 - 5000086961×1
  • 235000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×4
  • 245000075465
    $51.43
    COVER-ENGINE COUPLING - 5000075465×1
  • 255000087445
    $69.84
    BAFFLE-ENGINE EXHAUST - 5000087445×1
