RSS800A-ROLLER,SINGLE DRUM

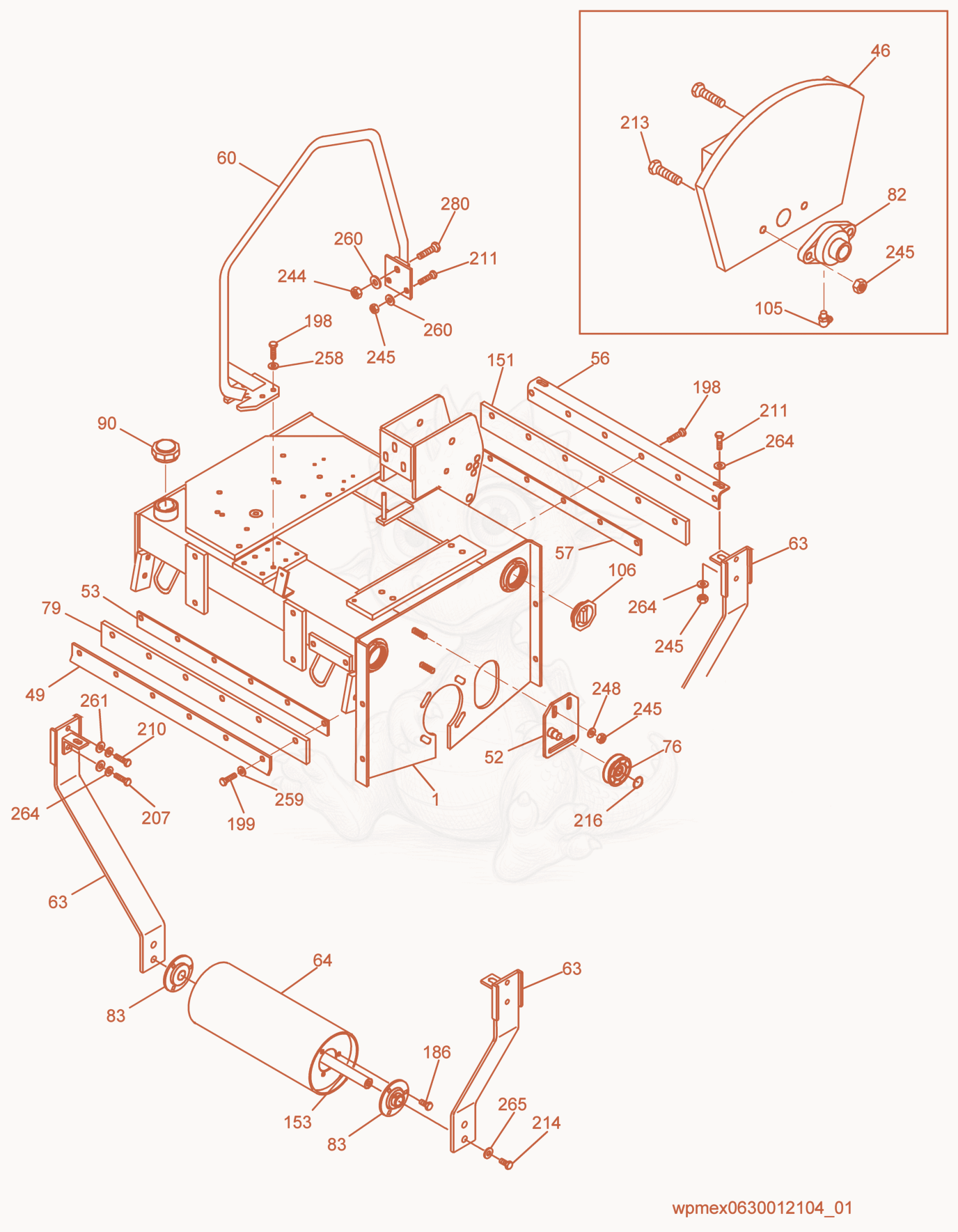

RSS800A Frame cpl. Diagram

Exploded parts diagram of the Frame cpl. of a Wacker Neuson RSS800A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000400401
    $8,076.90
    FRAME WELDMENT - 5000400401×1
  • 465000072120
    $443.43
    PLATE-BEARING FLANGE SUPPORT - 5000072120×1
  • 495000073012
    $94.80
    HOLDER-SCRAPER - 5000073012×1
  • 525000076958
    $70.63
    BRACKET-IDLER PULLEY - 5000076958×1
  • 535000077001
    $22.57
    SPACER-SCRAPER POSITIONER P-5000176420 - 5000077001×1
  • 565000080153
    $165.70
    MOUNT - 5000080153×1
  • 575000080156
    $68.88
    PAD-STRIP - 5000080156×1
  • 605000080088
    $348.47
    BRACKET-LIFTING DEVICE - 5000080088×1
  • 635000080151
    $152.92
    BRACE-ROLLER SUPPORT - 5000080151×1
  • 645000073912
    $914.42
    Roller Support Stand,Rs800 5000073912×2
  • 765000076957
    $51.11
    PULLEY-IDLER - 5000076957×1
  • 795000073011
    $298.43
    SCRAPER - 5000073011×1
  • 825000073148
    $95.91
    BEARING-FLANGE MOUNT - 5000073148×1
  • 835000074081
    $29.26
    BEARING-FLANGE MOUNT, SET-3PCS - 5000074081×4
  • 905000073167
    $52.37
    CAP-WATER TANK - 5000073167×1
  • 1055002005948
    $2.20
    FITTING-GREASE - 5002005948×1
  • 1065000074259
    $3.28
    PLUG 2 NPT,STEEL - 5000074259×2
  • 1515000080155
    $218.23
    SCRAPER - 5000080155×1
  • 1535000073917
    $26.13
    AXLE-ROLLER - 5000073917×2
  • 1865000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×12
  • 1985000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×8
  • 1995000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×6
  • 2075000016433
    $0.35
    SCREW M12 X 25-10.9,HX HD - 5000016433×7
  • 2105000020378
    $0.58
    SCREW M12 X 30-10.9,HX HD - 5000020378×4
  • 2115000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 2135000011301
    $0.85
    SCREW M12 X 50 HX.HD. - 5000011301×2
  • 2145000011505
    $4.33
    SCREW M14 X 30 HX.HD. - 5000011505×4
  • 2165002001038
    $0.11
    RET.RING-EXT 17MMX1MM, - 5002001038×1
  • 2445000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 2455000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×8
  • 2485000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×2
  • 2585000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×4
  • 2595000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×6
  • 2605000010666
    $0.61
    WASHER 12 FLAT - 5000010666×3
  • 2615000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×11
  • 2645000010620
    $0.26
    WASHER B13 FLAT - 5000010620×12
  • 2655000080596
    $2.08
    WASHER 14 SPR.LOCK,MZP - 5000080596×4
  • 2805000011431Not stocked
    Hexagonal head cap screw×1
