RT56-SC2 TRENCH ROLLER

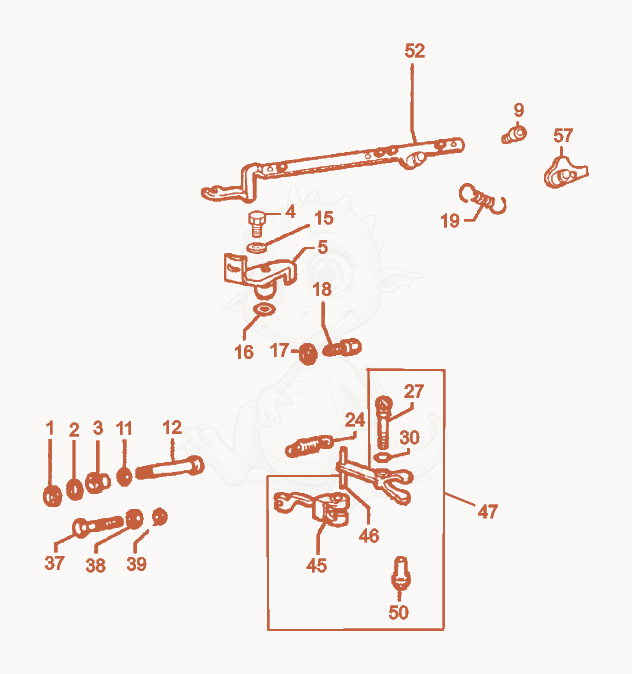

RT56-SC2 Governor Control Diagram

Exploded parts diagram of the Governor Control of a Wacker Neuson RT56-SC2, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000159276
$15.52
nut - 5000159276×1
25000083995
$1.30
WASHER-COPPER - 5000083995×1
35000155741
$93.14
SCREW-ADJUSTMENT - 5000155741×1
45000159319
$9.32
BOLT - 5000159319×1
55000159307
$353.78
lever - 5000159307×1
95000159477
$1.72
SCREW M3 X .5 X 6 - 5000159477×4
115000159292
$1.83
WASHER-COPPER - 5000159292×1
125000160386
$121.51
VALVE-FUEL DEVICE - 5000160386×1
155000159352
$0.69
X-5000215521 washer - 5000159352×1
165000159230
$1.30
O-RING - 5000159230×1
175000159273
$2.57
nut - 5000159273×2
185000159457
$10.55
SCREW - 5000159457×2
195000159315
$6.46
spring - 5000159315×1
245000159314
$18.38
SPRING-GOVERNOR - 5000159314×1
275000159321
$15.52
PIN-LEVER - 5000159321×1
305000159229
$1.30
O-RING - 5000159229×1
375000159252
$9.58
BOLT M6 X 10 - 5000159252×1
385000159270
$0.23
nut - 5000159270×1
395000083995
$1.30
WASHER-COPPER - 5000083995×1
455000159304
$194.03
GOVERNOR LEVER ASSEMBLY - 5000159304×1
465000159322
$11.45
pin - 5000159322×1
475000159304
$194.03
GOVERNOR LEVER ASSEMBLY - 5000159304×1
505000159256
$51.55
BUSHING - 5000159256×1
525000159245
$151.20
LINKAGE - 5000159245×1
575000159325
$92.93
plate - 5000159325×1
