RT820EC/HT-TRENCH ROLLER

RT820HT Brake Piping Diagram

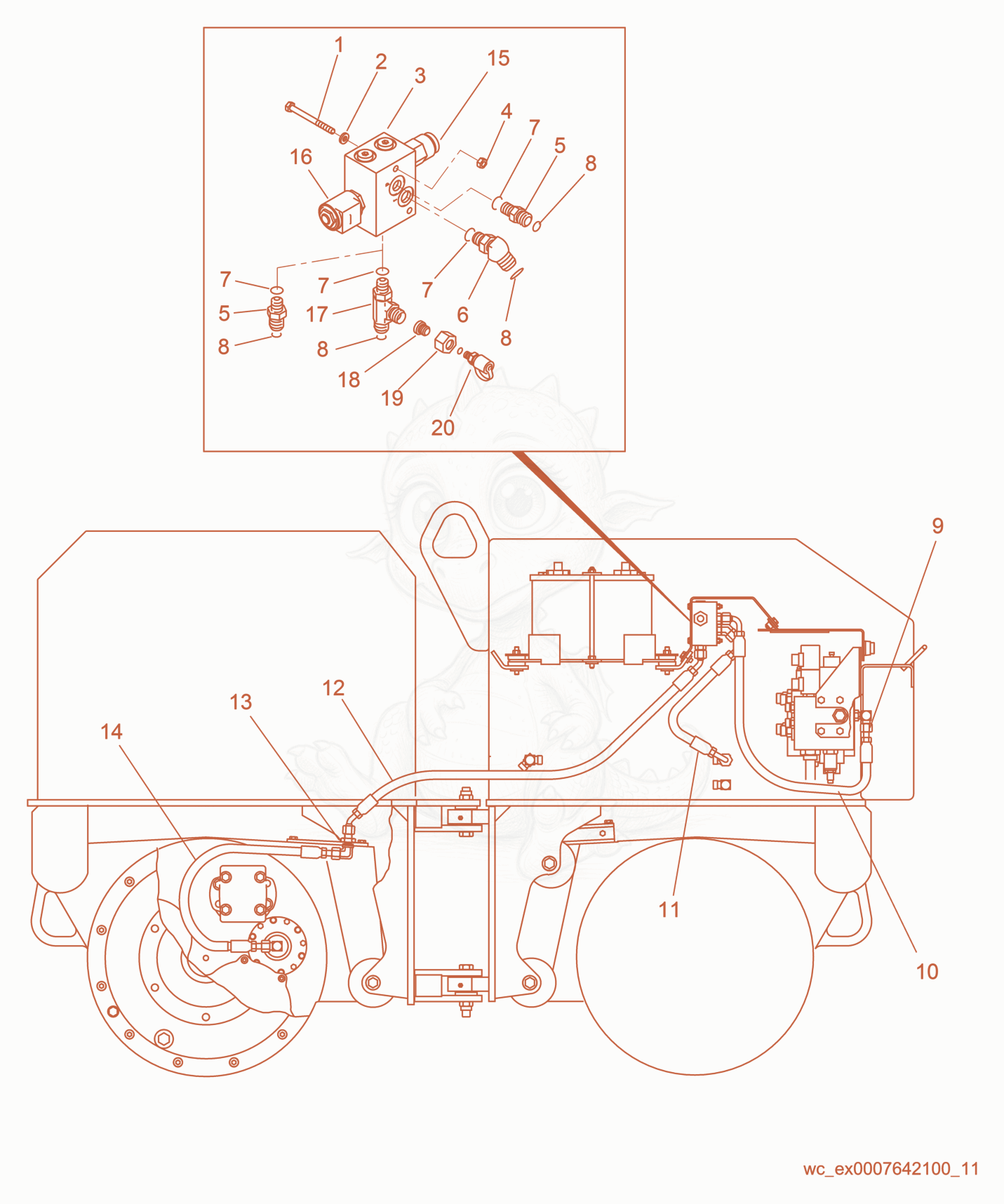

Exploded parts diagram of the Brake Piping of a Wacker Neuson RT820HT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011460
    $0.14
    SCREW M6 X 70 - 5000011460×2
  • 25000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 35000110754
    $450.76
    VALVE-BRAKE CONTROL - 5000110754×1
  • 45000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 55000078816
    $4.99
    FITTING-MALE ADAPTER,STRAIGHT - 5000078816×2
  • 65000083434
    $12.05
    FITTING-HYDRAULIC - 5000083434×1
  • 75000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×2
  • 85000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×2
  • 95000078962
    $11.04
    FITTING-ELBOW 90,HYDRAULIC - 5000078962×1
  • 95000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×1
  • 95000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 105000116707
    $60.82
    HOSE-ASSEMBLY - 5000116707×1
  • 115000117527
    $64.24
    HOSE-ASSEMBLY - 5000117527×1
  • 125000117528
    $82.36
    HOSE-ASSEMBLY - 5000117528×1
  • 135000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 135000086556
    $29.33
    FITTING-ORFS,BH,E90 06 ST - 5000086556×2
  • 145000117529
    $227.30
    HOSE-ASSEMBLY - 5000117529×1
  • 155000087013
    $8.81
    KIT-SEAL,RELIEF - 5000087013×1
  • 155000110751
    $278.58
    VALVE-PRESSURE REDUCING,120PSI - 5000110751×1
  • 165000087014
    $240.57
    VALVE-SOLENOID - 5000087014×1
  • 165000087015
    $43.68
    COIL-SOLENOID - 5000087015×1
  • 165000087016
    $13.89
    KIT-SEAL,SOLENOID - 5000087016×1
  • 175000083412
    $19.51
    FITTING-HYDRAULIC - 5000083412×1
  • 185000087228
    $100.60
    ADAPTER M8/06,ORFS - 5000087228×1
  • 195000087227Not stocked
    Fitting×1
  • 205000089203
    $26.26
    FITTING-TEST,W/PLASTIC CAP M8 - 5000089203×1
