S3000 GROUND HEATER

S3000 Enclosure cpl. (2) Diagram

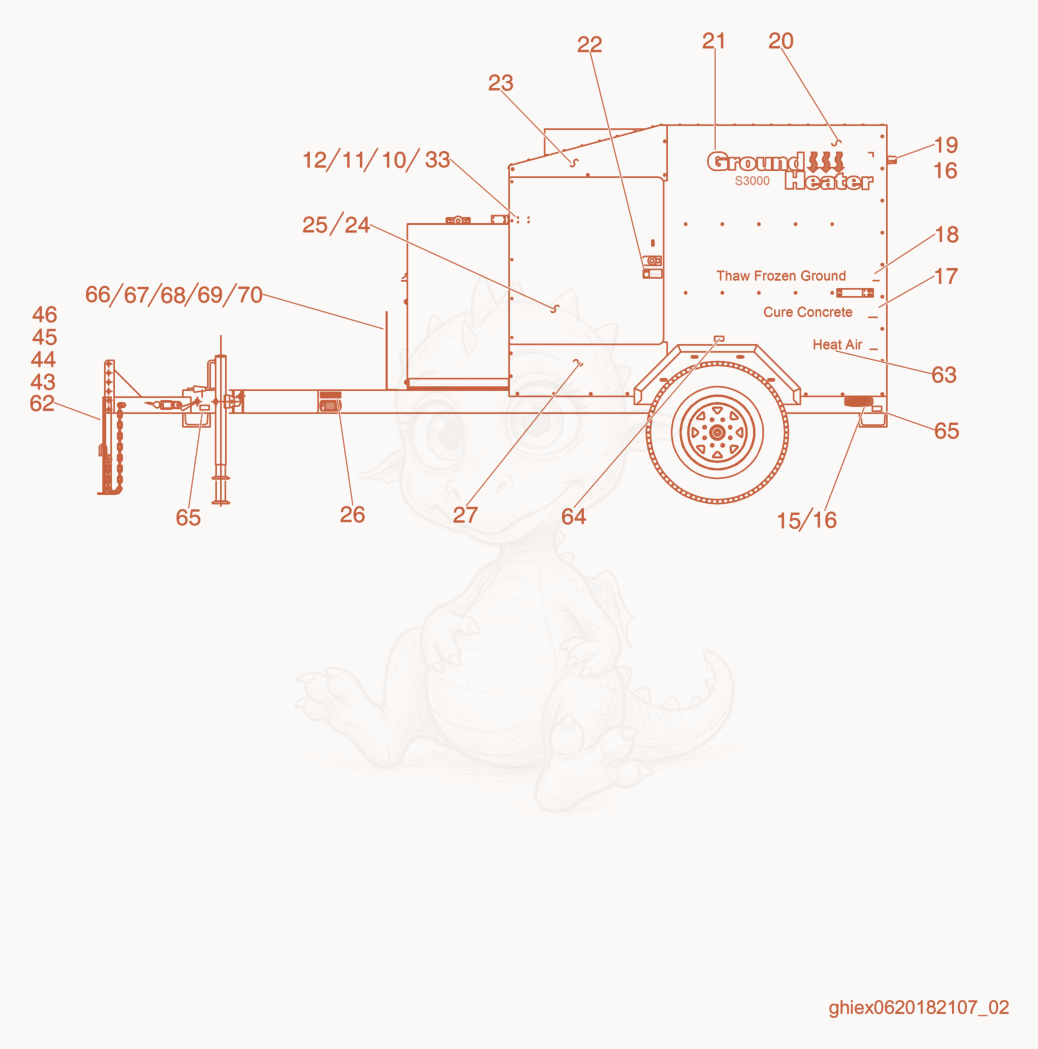

Exploded parts diagram of the Enclosure cpl. (2) of a Wacker Neuson S3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000167709Not stocked
    Screw×20
  • 115000167788Not stocked
    Flat washer×20
  • 125000167688Not stocked
    Nut×20
  • 155000166611Not stocked
    Light×2
  • 165000167807Not stocked
    screw×10
  • 175000168427Not stocked
    Label-cure concrete×2
  • 185000168426Not stocked
    Label-thaw frozen ground×2
  • 195000166505Not stocked
    Light×1
  • 215000168525Not stocked
    Label-logo×2
  • 225000168208Not stocked
    Label-fumes×2
  • 255000167857Not stocked
    Screw×15
  • 265000168260Not stocked
    Reflector×2
  • 335000168400Not stocked
    Holder×3
  • 605000168025Not stocked
    Label-tie downs×1
  • 635000168665Not stocked
    Label-heat air×2
  • 645000168564Not stocked
    Label-safety×2
  • 655000168009Not stocked
    Label-tie down marker×4
  • 665000181463Not stocked
    Bracket×1
  • 675000167730Not stocked
    Flat washer×4
  • 685000167735Not stocked
    Lock washer×2
  • 695000167705Not stocked
    Bolt×2
  • 705000167691Not stocked
    Nut×2
  • 715000180012Not stocked
    Label-hazard materials placard×3
