S3000 GROUND HEATER W/GEN

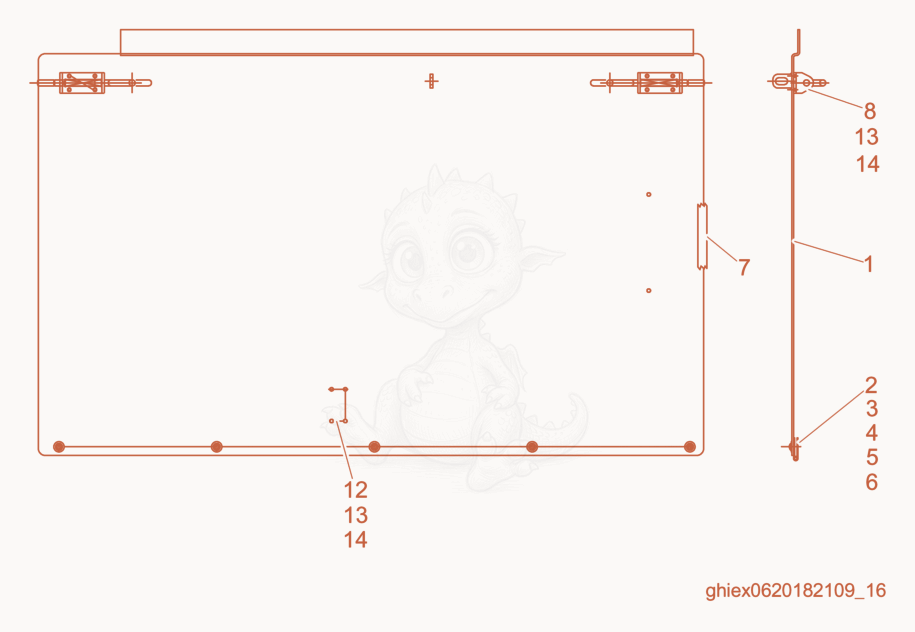

S3000 Right Rear Door Diagram

Exploded parts diagram of the Right Rear Door of a Wacker Neuson S3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000169680Not stocked
    Door×1
  • 25000167352Not stocked
    Hinge×1
  • 35000167857Not stocked
    Screw×5
  • 45000167729Not stocked
    Flat washer×10
  • 55000167733Not stocked
    Lock washer×5
  • 65000167690Not stocked
    Nut×5
  • 75000168354Not stocked
    Trim×1
  • 85000168521Not stocked
    Spring×2
  • 125000168400Not stocked
    Holder×2
  • 135000167709Not stocked
    Screw×12
  • 145000167688Not stocked
    Nut×12
