SC 50_0115718 Section

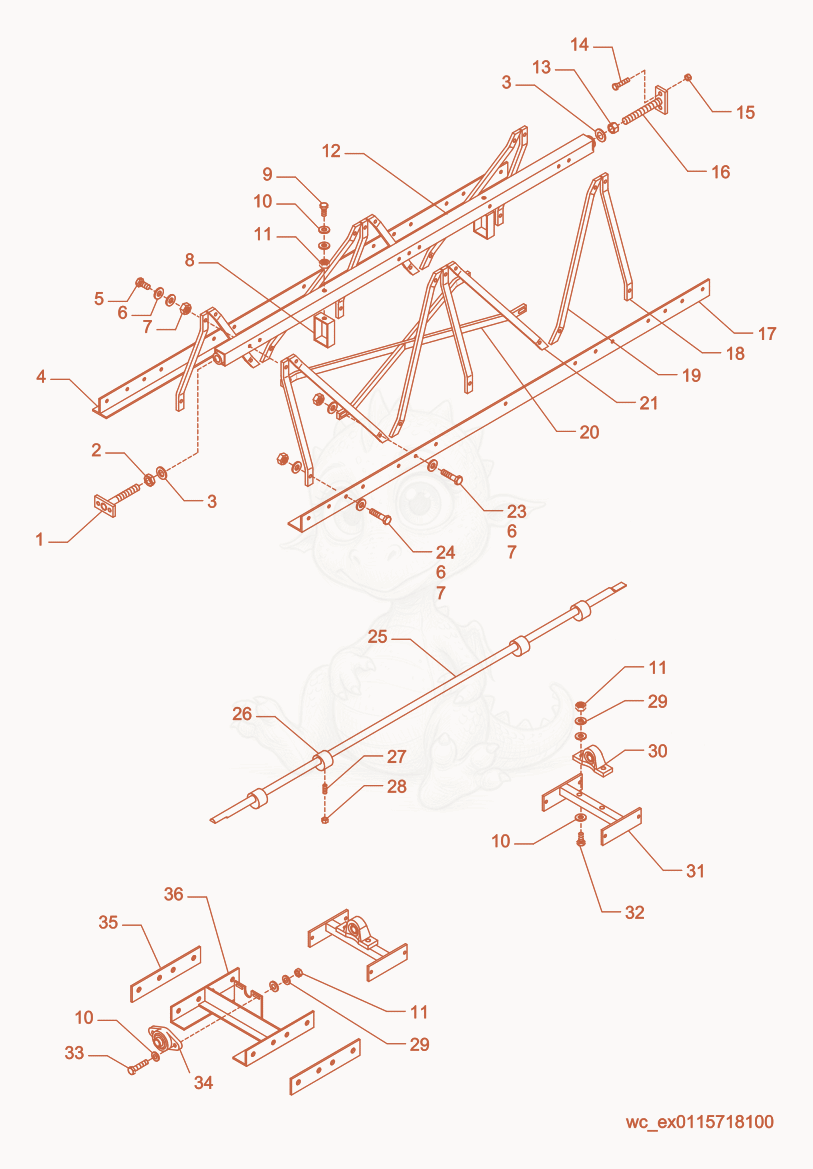

SC50 Truss Screed Components Diagram
- BOLT-T,COARSE THD. - 5000116407×1
- NUT-JAM,COARSE THD. - 5000116449×1
- WASHER 3/4 NOM,FLAT STEEL - 5000025640×2
- 45000116433Not stockedT-blade×1
- SCREW 5/16-18X2-3/4 GR8,HX HD - 5000025572×7
- WASHER 5/16 NOM,ST,FLAT - 5000025636×28
- NUT-LOCK 5/16-18,HEX,NYLON INS - 5000025634×21
- 85000116417Not stockedCable guide×2
- SCREW 3/8-16 X 2 GRADE 8 - 5000088045×2
- WASHER 3/8 NOM,STEEL,FLAT - 5000025637×16
- NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×8
- 125000116421Not stockedFrame×1
- NUT-JAM,FINE THD. - 5000116450×1
- SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×2
- NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×2
- BOLT-T,FINE THD. - 5000116408×1
- 175000117453Not stockedL-Blade×1
- 185000116423Not stockedStrut×6
- 195000116428Not stockedStrut×4
- BRACE-CROSS,5 FT. - 5000116441×1
- 215000116421Not stockedFrame×4
- SCREW 5/16-18 X 1-1/2,HX.HD. - 5000027218×4
- SCREW 5/16-18 X 1 GR5,HX.HD. - 5000025546×10
- SHAFT-5 FT. - 5000116380×1
- WEIGHT-ECCENTRIC - 5000116396×4
- 275000116455Not stockedSetscrew×4
- NUT 3/8-16,HEX - 5000025617×4
- WASHER-LOCK 3/8,MED. - 5000025649×6
- BEARING-PILLOW BLOCK,3/4 - 5000116402×2
- BRACKET-BEARING - 5000116435×2
- SCREW 3/8-16 X 2-1/2,HX.HD. - 5000116452×4
- 335000043841Not stockedHexagonal head cap screw×2
- BEARING-CONNECTOR - 5000116403×1
- 355000116437Not stockedPlate×1
- BRACKET-CONNECTOR - 5000116436×1
