SM60

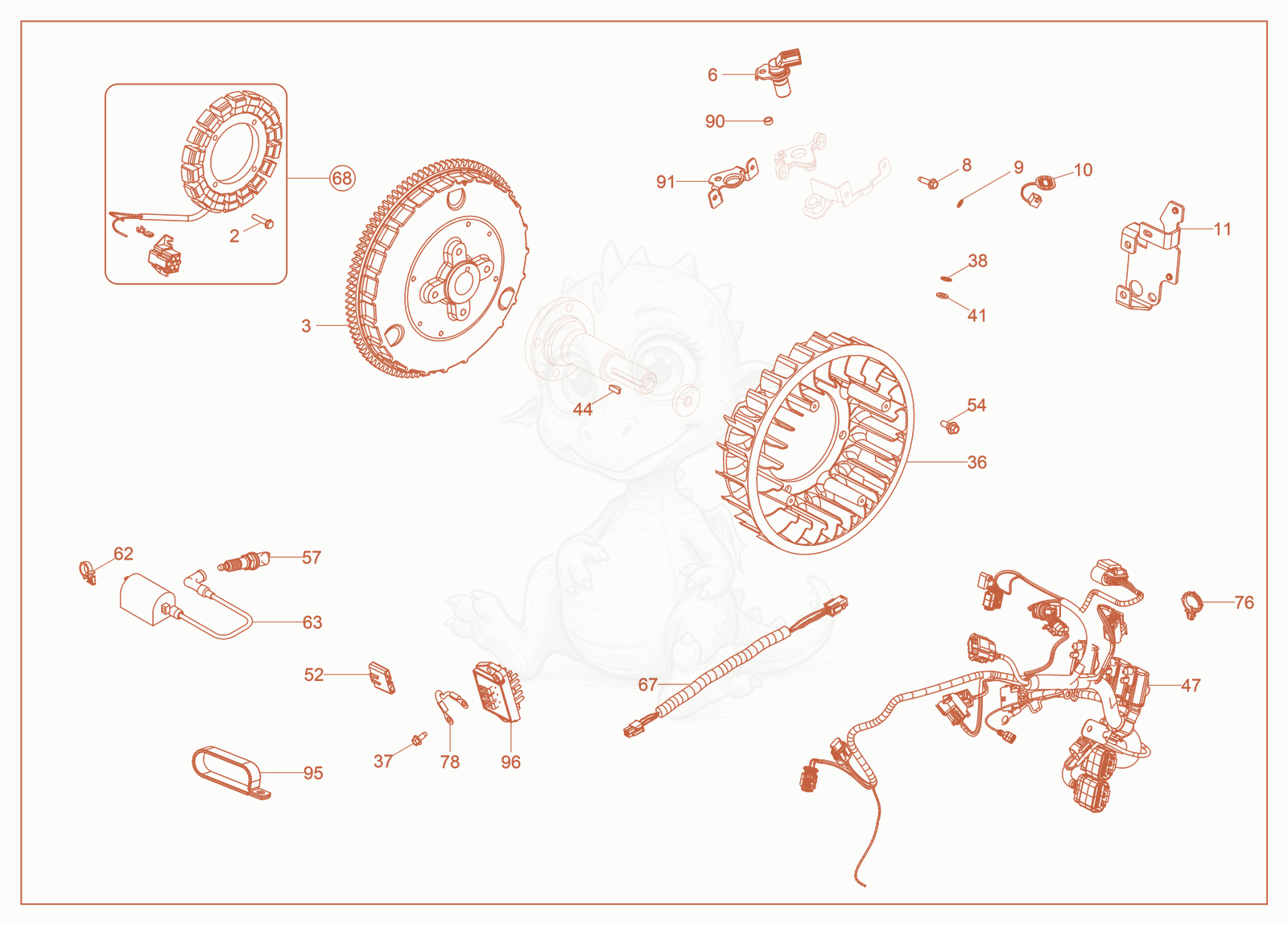

SM60 Ignition System SP Diagram
- Screw - 5100067499×2
- Flywheel - 5100067538×1
- Speed sensor - 5100067577×1
- Screw - 5100067500×2
- Lock washer - 5100067468×1
- Cap - 5100067494×1
- Bracket - 5100067516×1
- Fan - 5100067559×1
- Fan - 5100067559×5
- Lock washer - 5100067469×1
- Washer - 5000154902×1
- Key - 5000154886×1
- Wiring harness - 5100067562×1
- Connector - 5000154900×1
- Bolt - 5000154892×4
- Spark plug - 5100067471×2
- Clip - 5100067520×2
- Ignition coil - 5100067714×2
- Stator - 5000154882×1
- Spacer - 5100067523×1
- Bracket - 5100067517×1
- Regulator (20-30 Amp) - 5100067578×1
