ST31

ST31(S05-6) Hydraulic Tank Diagram

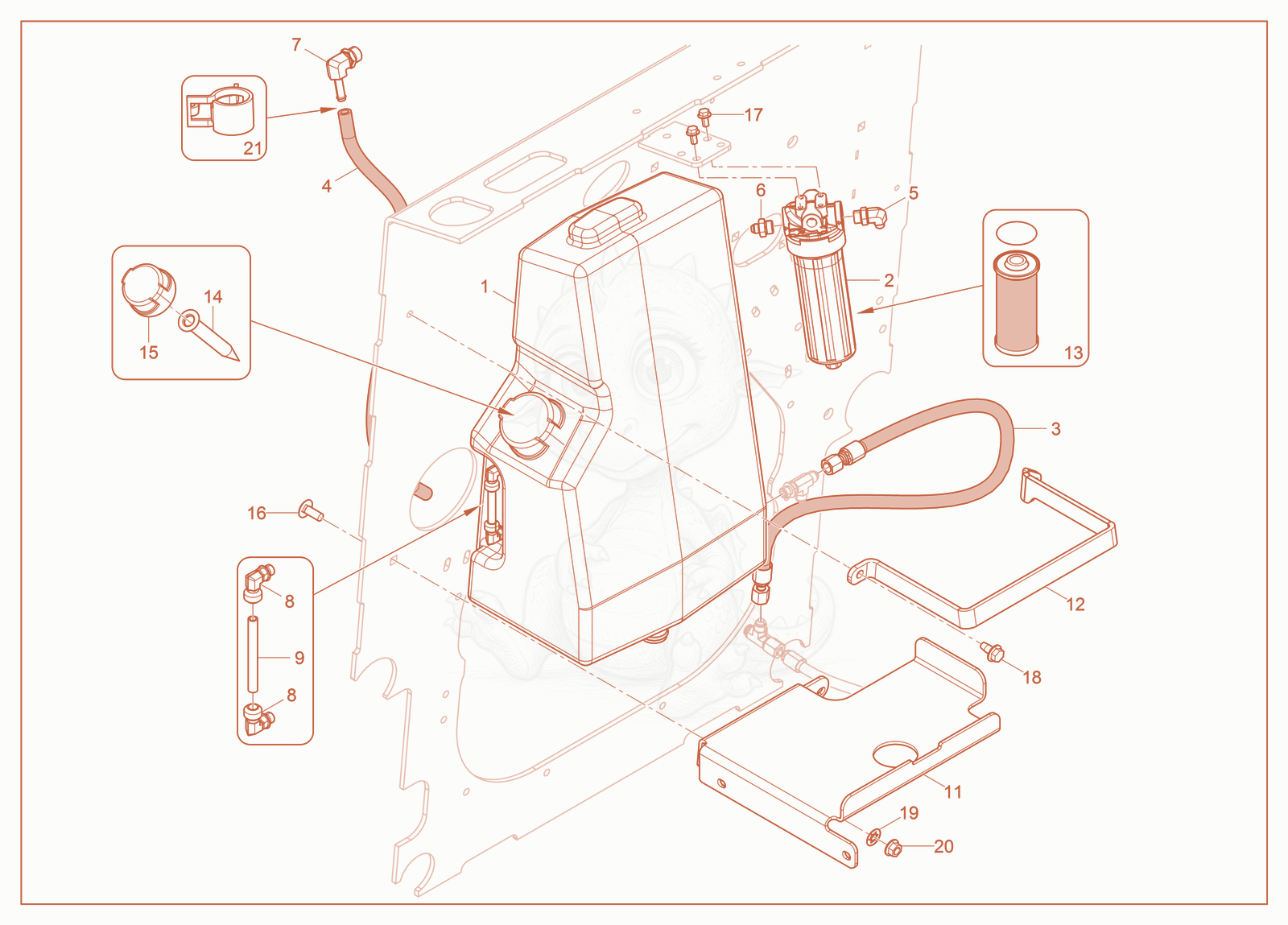

Exploded parts diagram of the Hydraulic Tank of a Wacker Neuson ST31(S05-6), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340101Not stocked
    Hydraulic tank×1
  • 21000380927Not stocked
    Hydraulic oil filter×1
  • 31000343144Not stocked
    Hydraulic hose×1
  • 41000343145Not stocked
    Hose×1
  • 51000343376
    $21.37
    FITTING HYD 12MB-08MJ90 - 1000343376×1
  • 61000343330Not stocked
    Fitting×1
  • 71000365837Not stocked
    Fitting×1
  • 81000342665Not stocked
    Fitting×2
  • 91000342666Not stocked
    Sight tube×1
  • 111000348711
    $136.92
    PLATE HOLD DOWN TANK PAINTED - 1000348711×1
  • 121000368350Not stocked
    Bracket×1
  • 131000382918Not stocked
    Filter element×1
  • 141000340159
    $11.54
    SCREEN HYD FILL - 1000340159×1
  • 151000340157
    $32.85
    CAP HYDRAULIC - 1000340157×1
  • 161000343297
    $0.85
    BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×4
  • 171000343289Not stocked
    Flanged bolt×2
  • 181000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×2
  • 191000343294
    $0.06
    RETAINER BOLT M10 - 1000343294×2
  • 201000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×4
  • 211000357140
    $1.19
    HOSE CLAMP CTB 16 - 1000357140×1
