ST40 Compact Track Loader

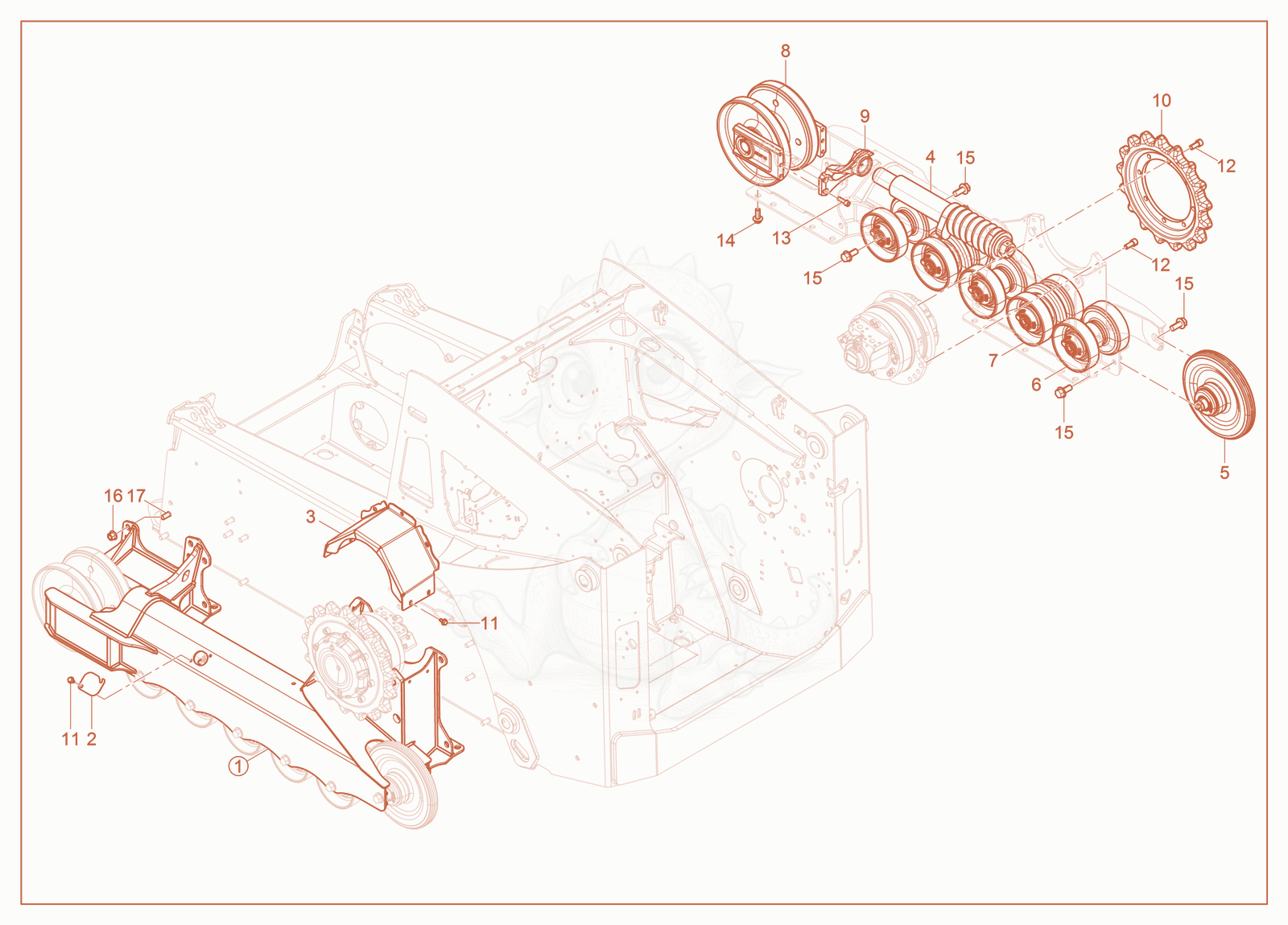

ST40(S06-5) Undercarriage Diagram

Exploded parts diagram of the Undercarriage of a Wacker Neuson ST40(S06-5), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000494878Not stocked
    Undercarriage weldment×1
  • 11000494877Not stocked
    Undercarriage weldment×1
  • 21000347309Not stocked
    Access cover×2
  • 31000431641Not stocked
    Motor cover×2
  • 41000362849Not stocked
    Tension cylinder×1
  • 41000362846Not stocked
    Tension cylinder×1
  • 51000339842Not stocked
    Roller×2
  • 61000339848Not stocked
    Roller×6
  • 71000339841Not stocked
    Roller×4
  • 81000339843Not stocked
    Roller×2
  • 91000362848Not stocked
    Guide×2
  • 101000362845Not stocked
    Sprocket×2
  • 111000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×18
  • 121000343282Not stocked
    Screw×32
  • 131000343279Not stocked
    Hex screw×8
  • 141000343281Not stocked
    Flange bolt×20
  • 151000343278Not stocked
    Flange bolt×24
  • 161000343276Not stocked
    Flange nut×26
  • 171000340809Not stocked
    Stud×26
