ST45 Compact Track Loader

ST45(S06-6) Two Speed Brake System Diagram

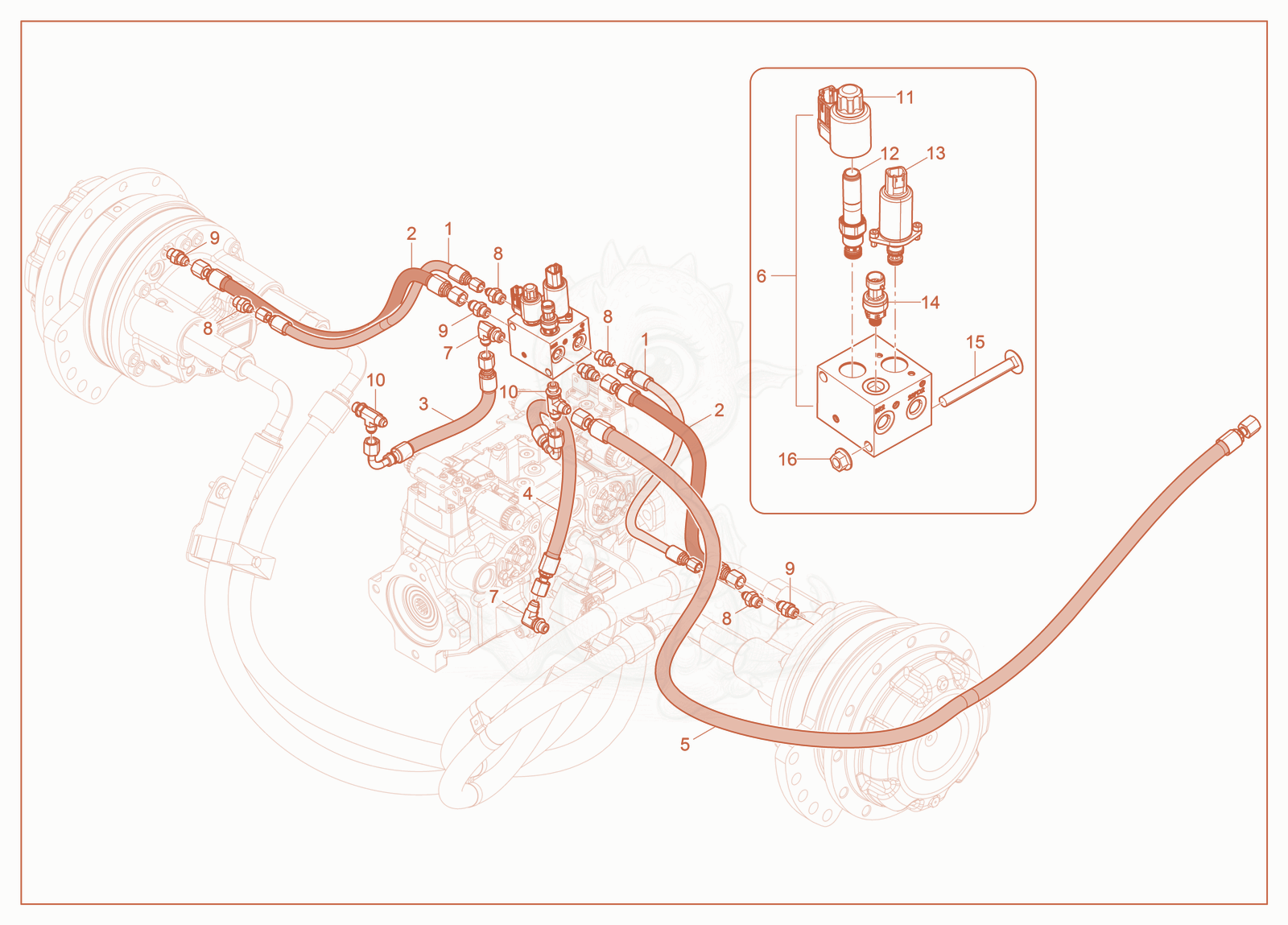

Exploded parts diagram of the Two Speed Brake System of a Wacker Neuson ST45(S06-6), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000368406Not stocked
    Hose assembly×2
  • 21000340183Not stocked
    Hose assembly×2
  • 31000363032Not stocked
    Hose assembly×1
  • 41000362940Not stocked
    Hose assembly×1
  • 51000363028Not stocked
    Hose assembly×1
  • 61000340171Not stocked
    Valve×1
  • 71000343340Not stocked
    Fitting×2
  • 81000343338
    $2.95
    FITTING HYD 06MB-06MJ - 1000343338×4
  • 91000343339
    $2.74
    FITTING HYD 06MB-04MJ - 1000343339×4
  • 101000343369Not stocked
    Tee fitting×2
  • 111000437948
    $121.41
    valve - 1000437948×1
  • 121000365402
    $29.43
    MAGNET SPOOL - 1000365402×1
  • 131000365406
    $352.85
    valve - 1000365406×1
  • 141000342842Not stocked
    Valve×1
  • 151000343337
    $2.61
    BOLT M10 X 90 CARRIAGE 8.8 ZINC - 1000343337×2
  • 161000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×2
