STP750 115/60-PUMP,ELE.SUBMER.

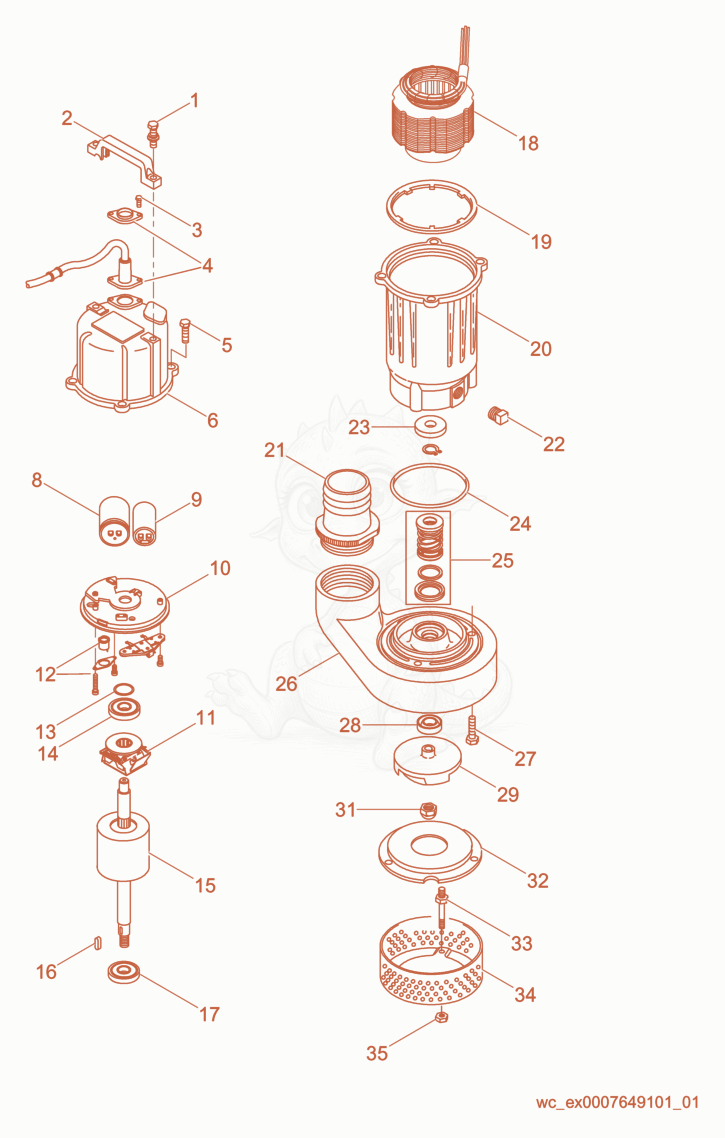

STP750 Pump Components Diagram
- SCREW M6 X 25,HX.HD. - 5000071756×2
- 25000079465Not stockedLifting handle×1
- 35000085463Not stockedBolt×2
- 45000079442Not stockedCable×1
- 55000054913Not stockedHexagonal head cap screw×4
- 65000087248Not stockedCover×1
- 85000087249Not stockedRunning capacitor×1
- 95000079450Not stockedCapacitor×1
- 105000087250Not stockedBracket×1
- 115000079463Not stockedCentrifugal switch×1
- 125000085471Not stockedBreaker×1
- 135000079482Not stockedShim×1
- 145000051263Not stockedBall bearing×1
- 155000085475Not stockedRope cpl.×1
- 165000079459Not stockedKey×1
- BEARING-RADIAL BALL,6202 - 5002006013×1
- 185000079458Not stockedStator×1
- GASKET - 5000079446×1
- 205000079447Not stockedHousing×1
- 215000079448Not stockedFitting×1
- 225000079464Not stockedOil plug×1
- NLA - SEAL-SHAFT 15 X 30 X 7,1B - 5000073361×1
- NLA O-RING, G90 - 5000079470×1
- NLA - SEAL-MECHANICAL 14MM DIA. - 5000079471×1
- 265000079466Not stockedVolute×1
- 275000079453Not stockedScrew×3
- SEAL-SHAFT SC14 X 24 X 6 - 5000079472×1
- 295000079467Not stockedImpeller×1
- 315000085487Not stockedNut×1
- 325000079476Not stockedPlate×1
- 335000085489Not stockedStud bolt×3
- 345000079475Not stockedStrainer×1
- 355000085491Not stockedNut×3
- 365000079463Not stockedCentrifugal switch×1
