TH412e

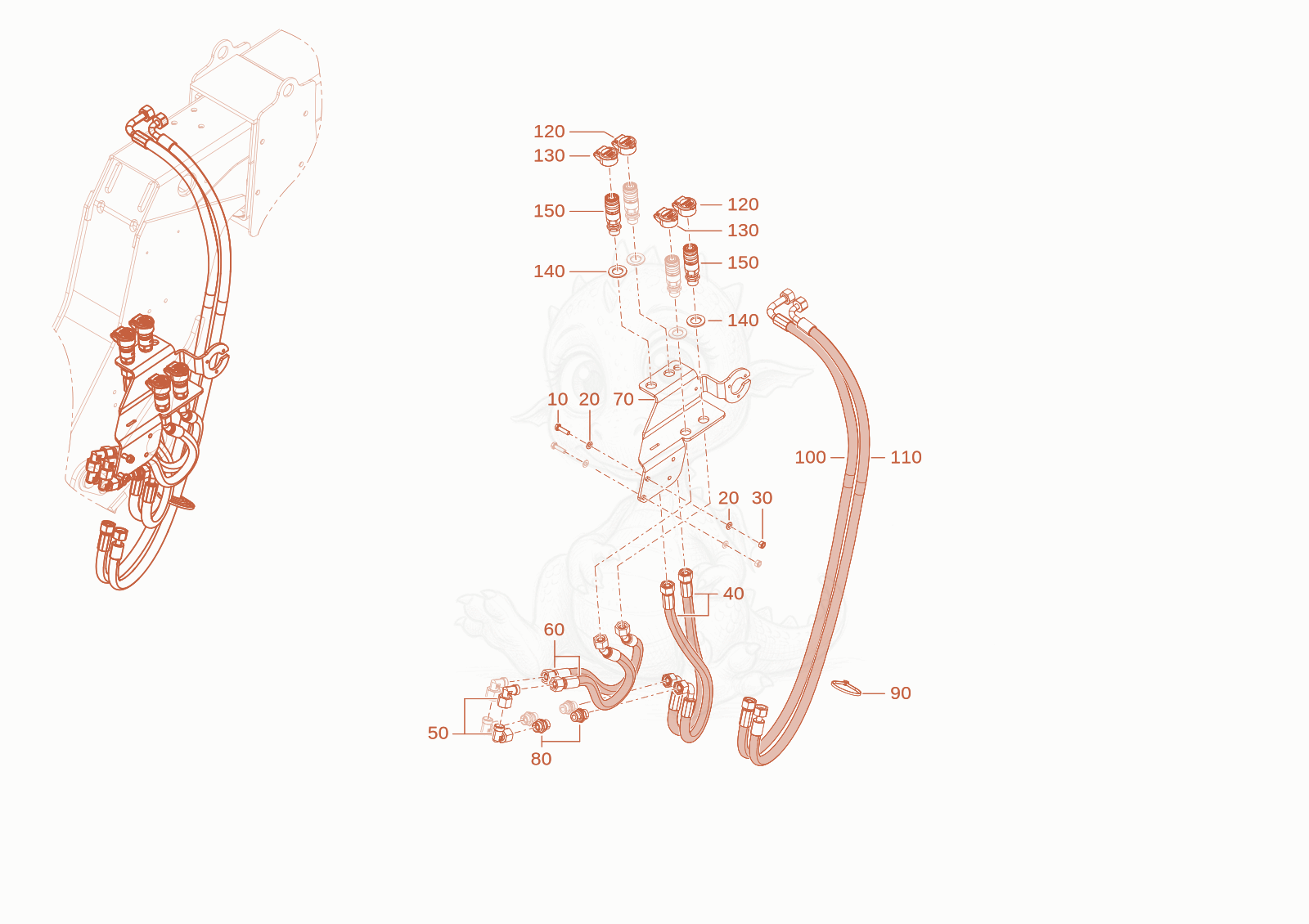

TH412E(T02-01) plug coupling Diagram

Exploded parts diagram of the plug coupling of a Wacker Neuson TH412E(T02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 201000015431Not stocked
    washer×4
  • 301000013022Not stocked
    hexagon nut×2
  • 401000431155Not stocked
    Hose×2
  • 501000015512Not stocked
    screw joint×4
  • 601000297806
    $41.79
    SLHYDR 2SC 12 PN15 0 PN15 45 L540,0 - 1000297806×2
  • 701000480710Not stocked
    bracket×1
  • 801000015494Not stocked
    screw joint×4
  • 901000193828
    $0.89
    cable strap - 1000193828×1
  • 1001000430908Not stocked
    Hose×1
  • 1101000336415Not stocked
    Hose×1
  • 1201000429648Not stocked
    dust cap×2
  • 1301000434595Not stocked
    dust cap×2
  • 1401000082620
    $0.08
    washer 23 - 1000082620×4
  • 1501000426444Not stocked
    quick lock coupling×4
  • 1601000417357Not stocked
    SWVE15LR1/2KDSOMD×2
