TH627 Telehandler

TH627(418-02) quickhitch plate Diagram

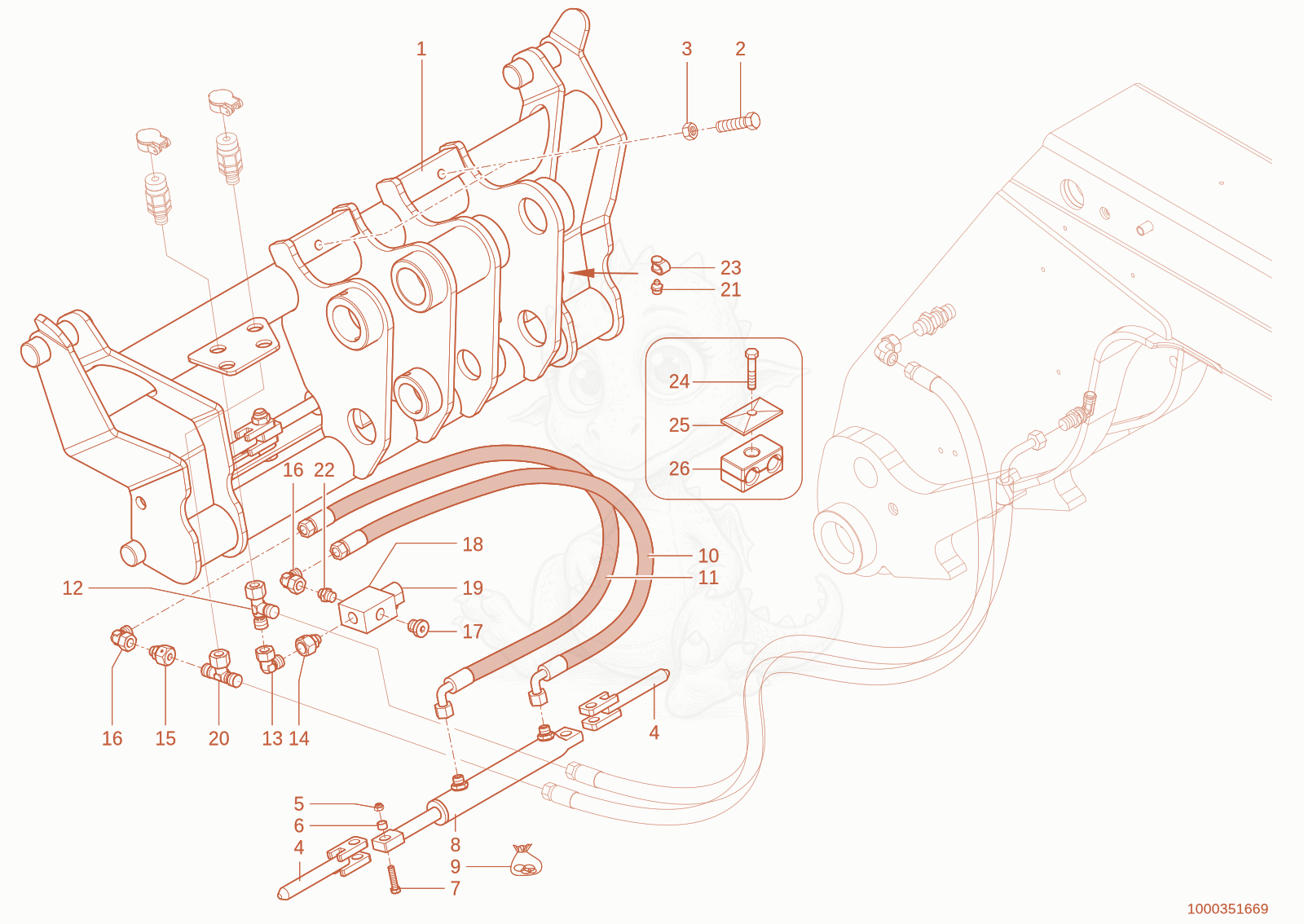

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH627(418-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000251627
    $6,970.82
    Quickhitchplate 1000251627×1
  • 21000032955Not stocked
    limit stop×2
  • 31000048990Not stocked
    hexagon nut×2
  • 41000251592
    $157.16
    pin - 1000251592×2
  • 51000020788Not stocked
    hexagon nut×2
  • 61000251629
    $59.73
    pipe - 1000251629×2
  • 71000085371
    $2.36
    hex screw M16x70 - 1000085371×2
  • 81000251628
    $3,014.75
    Hydrauliccylinder 1000251628×1
  • 91000262388
    $118.45
    SEAL KIT - 1000262388×1
  • 101000242415
    $28.61
    SLHYDR 2SC 8,0PN10 0 PN10 90 L740,0 - 1000242415×1
  • 111000102251
    $35.16
    SLHYDR 2SC 8,0PN10 0 PN10 90 L570,0 0 - 1000102251×1
  • 121000015539Not stocked
    screw joint×1
  • 131000015512Not stocked
    screw joint×1
  • 141000015521Not stocked
    screw joint×1
  • 151000020688Not stocked
    screw joint×1
  • 161000015510Not stocked
    screw joint×2
  • 171000030660Not stocked
    lock plug×1
  • 181000027858
    $169.32
    VALVE-SOLENOID - 1000027858×1
  • 191000027822Not stocked
    solenoid valve×1
  • 201000085108
    $18.68
    ET15LOMDA3C - 1000085108×1
  • 211000050469
    $1.68
    grease nipple - 1000050469×2
  • 221000106888
    $5.47
    GE10LR1/2"EDOMDA3C - 1000106888×1
  • 231000033455
    $0.30
    CAP - 1000033455×2
  • 241000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 251000031230Not stocked
    cover plate×1
  • 261000031999
    $1.93
    CLAMP - 1000031999×1
