TH730

TH730(415-04) Hydraulic circuit pressure discharge Diagram

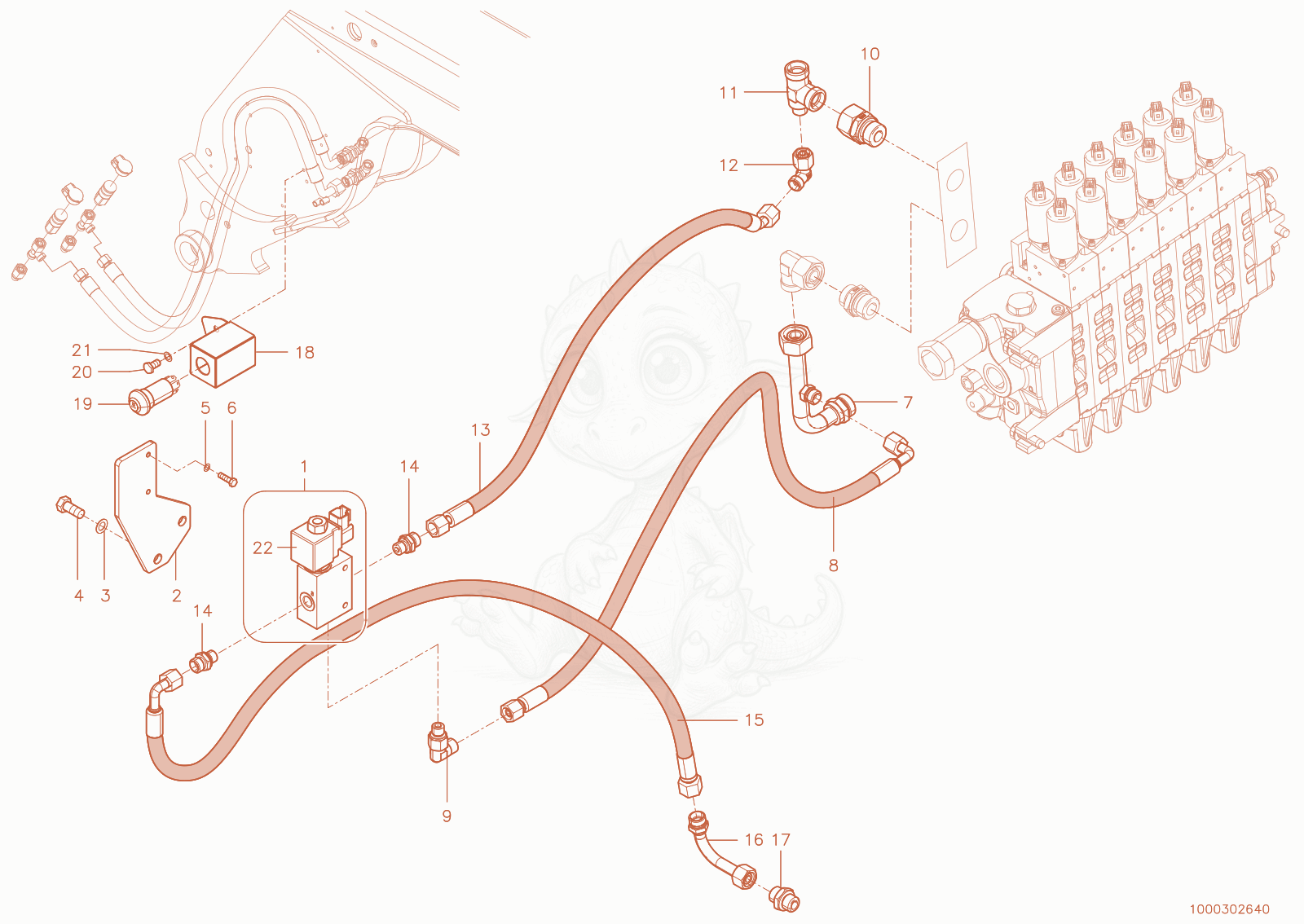

Exploded parts diagram of the Hydraulic circuit pressure discharge of a Wacker Neuson TH730(415-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000375847
    $567.67
    Retrofit kit - 1000375847×1
  • 21000289296Not stocked
    bracket×1
  • 31000092291
    $0.80
    WASHER - 1000092291×2
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 51000092290
    $0.74
    WASHER - 1000092290×2
  • 61000085385
    $0.83
    hex screw - 1000085385×2
  • 71000289592
    $150.50
    connection piece - 1000289592×1
  • 81000289682Not stocked
    Hose×1
  • 91000146696
    $21.60
    EWE10LR 1/4 - 1000146696×1
  • 101000240635
    $37.22
    EGE 18PLR ED R3/4 A3C - 1000240635×1
  • 111000028368Not stocked
    screw joint×1
  • 121000015510Not stocked
    screw joint×1
  • 131000289640Not stocked
    Hose×1
  • 141000015490Not stocked
    screw joint×1
  • 151000290441Not stocked
    Hose×1
  • 161000051026Not stocked
    connection piece×1
  • 171000028596Not stocked
    screw joint×1
  • 181000285404
    $51.73
    Bracket - 1000285404×1
  • 191000285667
    $54.16
    feeler - 1000285667×1
  • 201000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 211000092291
    $0.80
    WASHER - 1000092291×2
  • 221000486997Not stocked
    solenoid×1
