TH730

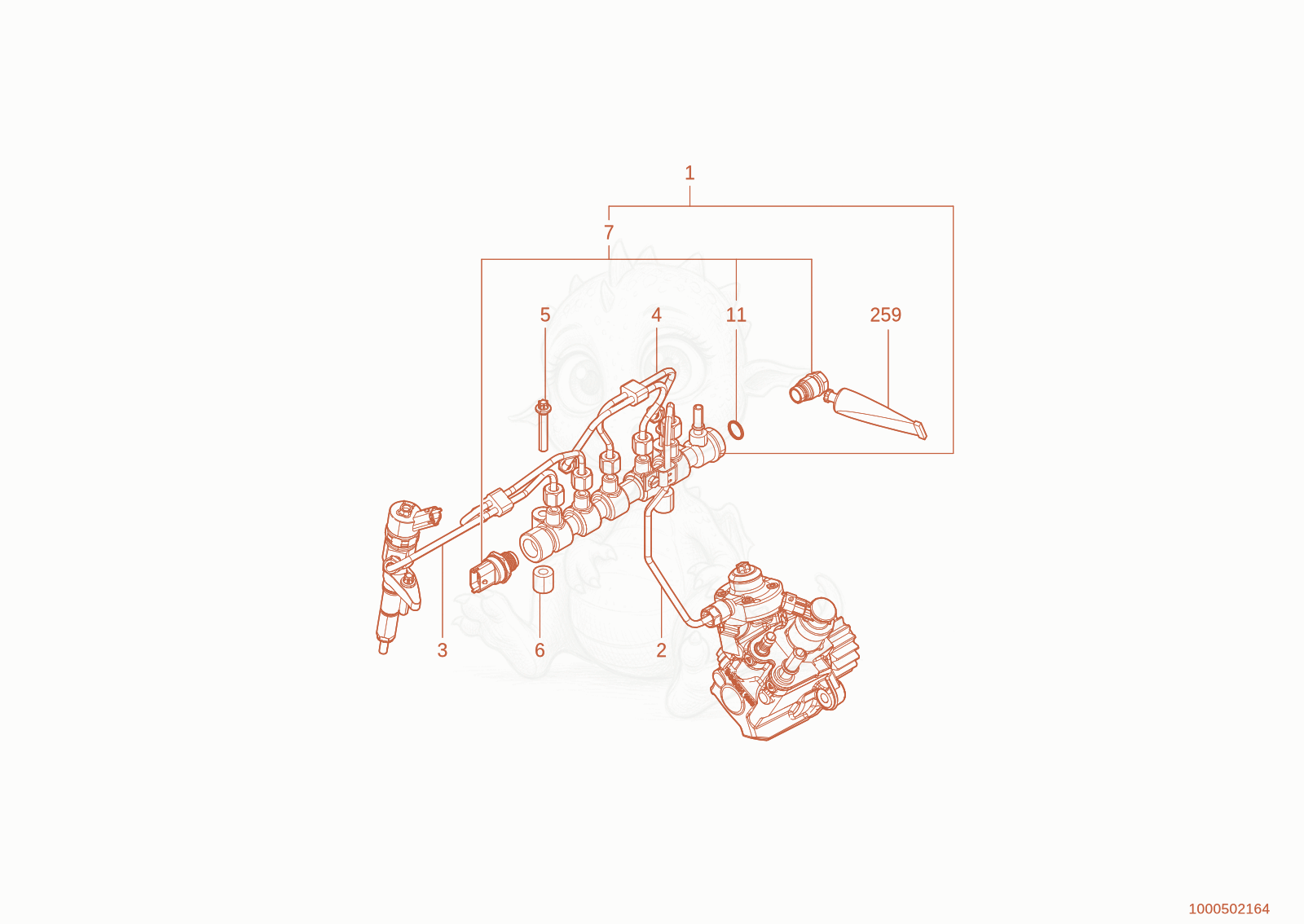

TH730(415-24) fuel injection equipment Diagram

Exploded parts diagram of the fuel injection equipment of a Wacker Neuson TH730(415-24), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000327517Not stocked
    injection line×1
  • 21000460344Not stocked
    injection line×1
  • 31000460341Not stocked
    injection line×1
  • 41000502311
    $131.74
    rail - 1000502311×1
  • 51000272006
    $3.27
    torx screw - 1000272006×2
  • 61000492740Not stocked
    distance piece×2
  • 71000428473Not stocked
    repairing set×1
  • 111000428370
    $4.64
    O-ring - 1000428370×1
  • 2591000460300
    $56.49
    Grease - 1000460300×1
