Telehandlers

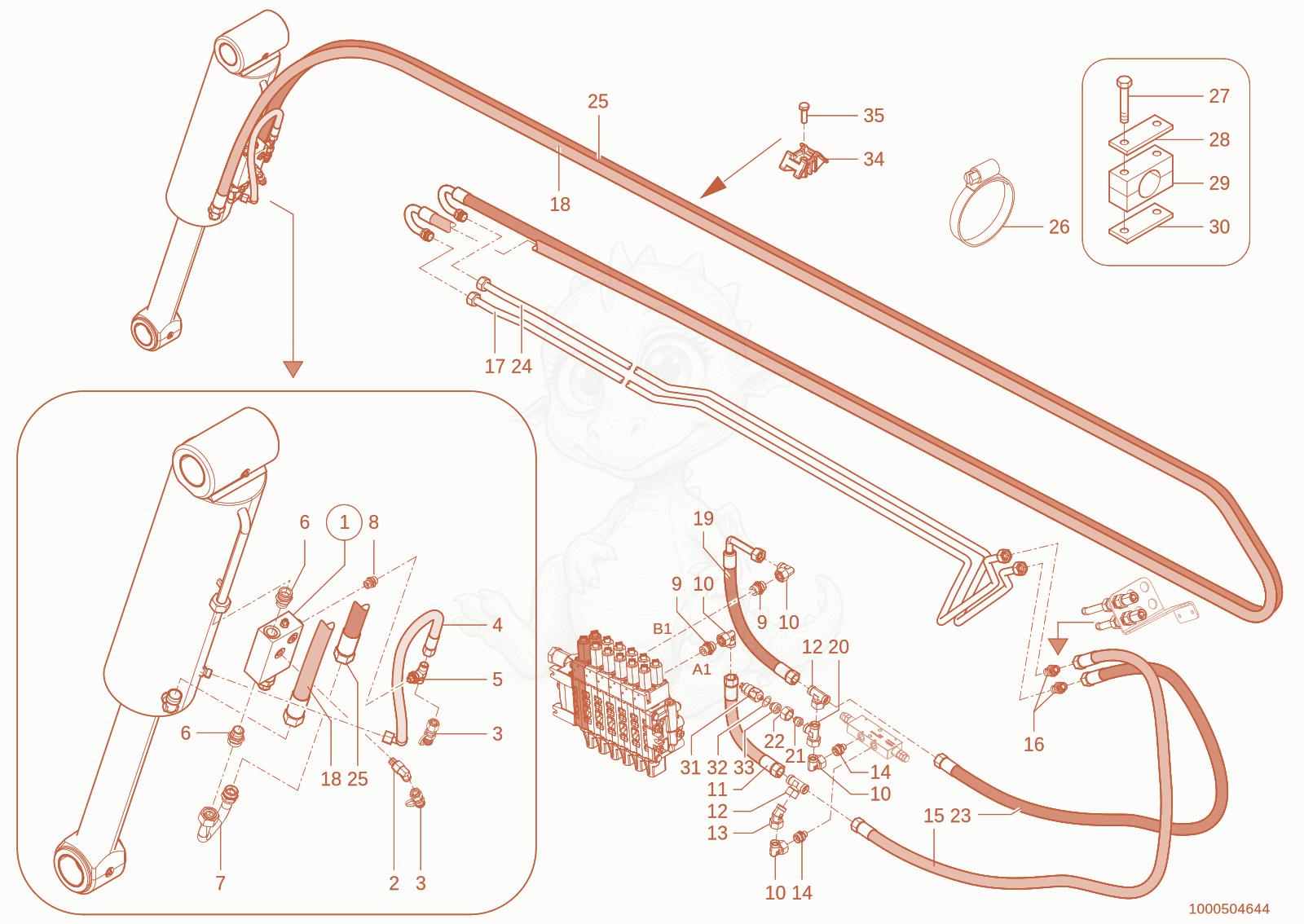

TH730(415-34) Tilt ram cycle Diagram
- valve - 1000309849×1
- EWE10LR 1/4 - 1000146696×1
- PR��FANSCHLUSS 10 L A3C - 1000152124×2
- SLHYDR 2SC 8,0PN10 0 PN10 90 L600,0 - 1000103768×1
- ETE10-L R 1/4" A3C - 1000172357×1
- 61000015559Not stockedscrew joint×1
- HYDRAULIC PIPE - 1000271469×1
- 81000015494Not stockedscrew joint×1
- 91000015565Not stockedscrew joint×2
- 101000015513Not stockedscrew joint×6
- 111000289608Not stockedHose×1
- ET18LOMDA3C - 1000085077×2
- EW 18 L 45° - 1000149608×1
- 141000052133Not stockedscrew joint×6
- 151000289625Not stockedHose×1
- 161000015563Not stockedscrew joint×2
- 171000379857Not stockedpipe line×1
- Slhydr16Pn15Pd18180L7160 1000289691×1
- 191000289627Not stockedHose×1
- 201000015517Not stockedscrew joint×1
- 211000028206Not stockedlock piece×1
- 221000050506Not stockedunion nut×1
- 231000289626Not stockedHose×1
- 241000379856Not stockedpipe line×1
- Slhydr16Pn18Pd18180L7110 1000289690×1
- 261000285201Not stockedclamp×1
- 271000015340Not stockedhex screw×2
- 281000031260Not stockedcover plate×1
- CLAMP - 1000031502×1
- 301000286593Not stockedweld plate×1
- pressure switch - 1000276818×1
- seal ring - 1000085676×1
- CONNECTION PIECE - 1000151022×1
- sockets - 1000291567×1
- 351000018400Not stockedhex screw×1
