TH735

TH735(415-06) Cab Diagram

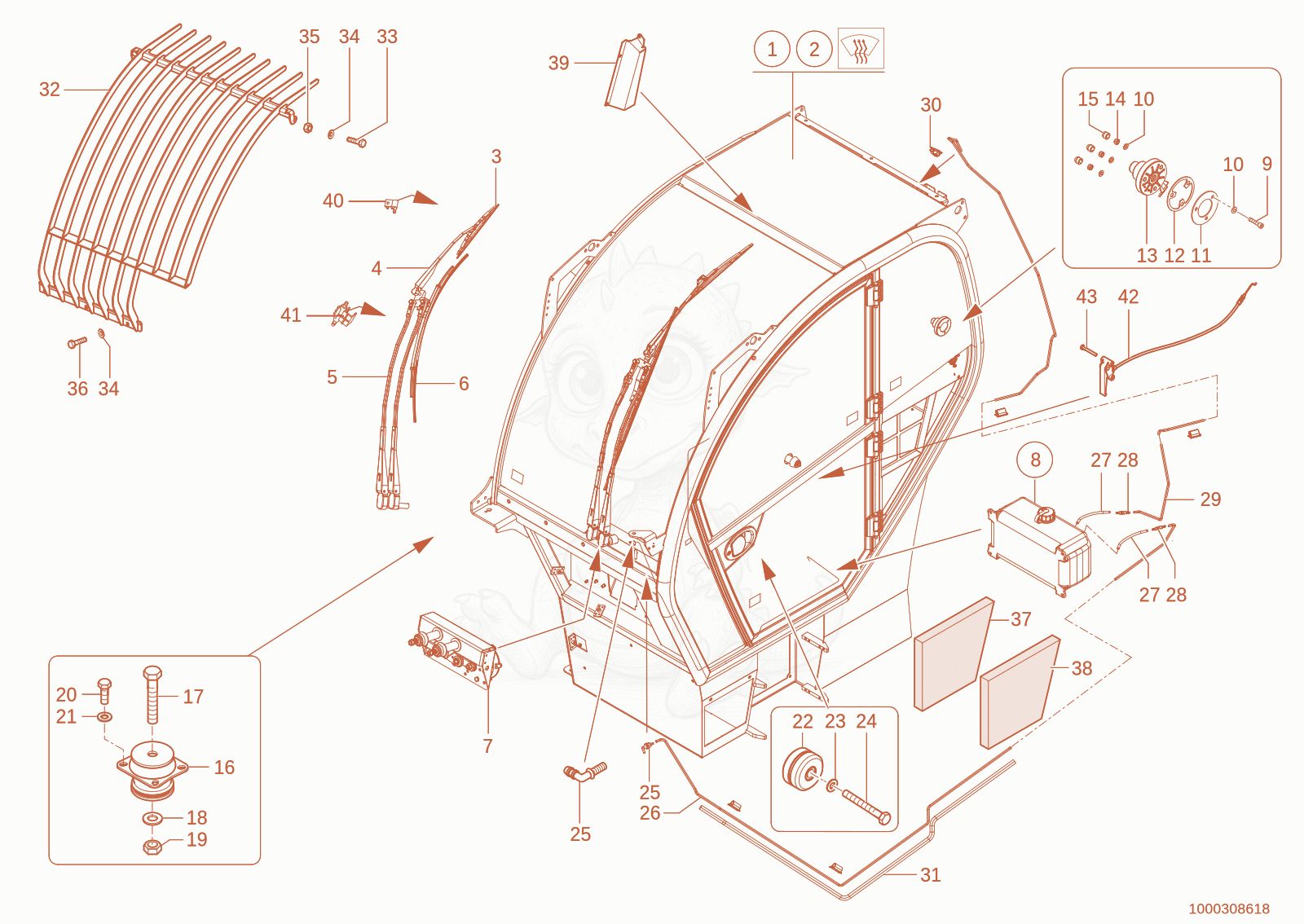

Exploded parts diagram of the Cab of a Wacker Neuson TH735(415-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000283539Not stocked
    cabin×1
  • 21000283575Not stocked
    cabin×1
  • 31000308590Not stocked
    wiper blade×1
  • 41000308589Not stocked
    wiper arm×1
  • 51000308593Not stocked
    wiper arm×1
  • 61000284802Not stocked
    wiper blade×1
  • 71000308588Not stocked
    wiper motor×1
  • 81000151063
    $257.82
    water container - 1000151063×1
  • 91000273108Not stocked
    cheese head screw×3
  • 101000092290
    $0.74
    WASHER - 1000092290×6
  • 111000308615Not stocked
    lining×1
  • 121000308606Not stocked
    washer×1
  • 131000308604Not stocked
    door fastener×1
  • 141000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 151000308608Not stocked
    cap×3
  • 161000294719Not stocked
    cone bearing×2
  • 171000101222
    $9.27
    hex screw - 1000101222×2
  • 181000021001
    $0.89
    WASHER - 1000021001×2
  • 191000020788Not stocked
    hexagon nut×2
  • 201000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
  • 211000092291
    $0.80
    WASHER - 1000092291×8
  • 221000236499
    $166.55
    Bearing 1000236499×1
  • 231000235712
    $28.09
    WASHER - 1000235712×1
  • 241000085347
    $4.75
    hex screw - 1000085347×1
  • 251000308595Not stocked
    angle cut piece×2
  • 261000324819
    $58.54
    Hose - 1000324819×1
  • 271000324818Not stocked
    hose×2
  • 281000145436
    $34.57
    Valve - 1000145436×1
  • 291000324820Not stocked
    hose×1
  • 301000308602Not stocked
    hose clamp×2
  • 311000324862Not stocked
    hose×1
  • 321000274678Not stocked
    Protective screen kpl.×1
  • 331000015346Not stocked
    hex screw×2
  • 341000092291
    $0.80
    WASHER - 1000092291×7
  • 351000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 361000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 371000272301
    $30.81
    Filter - 1000272301×1
  • 381000272288Not stocked
    Carbon Filter×1
  • 391000335158Not stocked
    cover plate×1
  • 401000162389
    $19.07
    NOZZLE - 1000162389×1
  • 411000133219
    $20.77
    Nozzle - 1000133219×1
  • 421000145186
    $98.00
    Door opener - 1000145186×1
  • 431000109212
    $3.60
    Screw - 1000109212×2
