TH740

TH740(415-37) trim Diagram

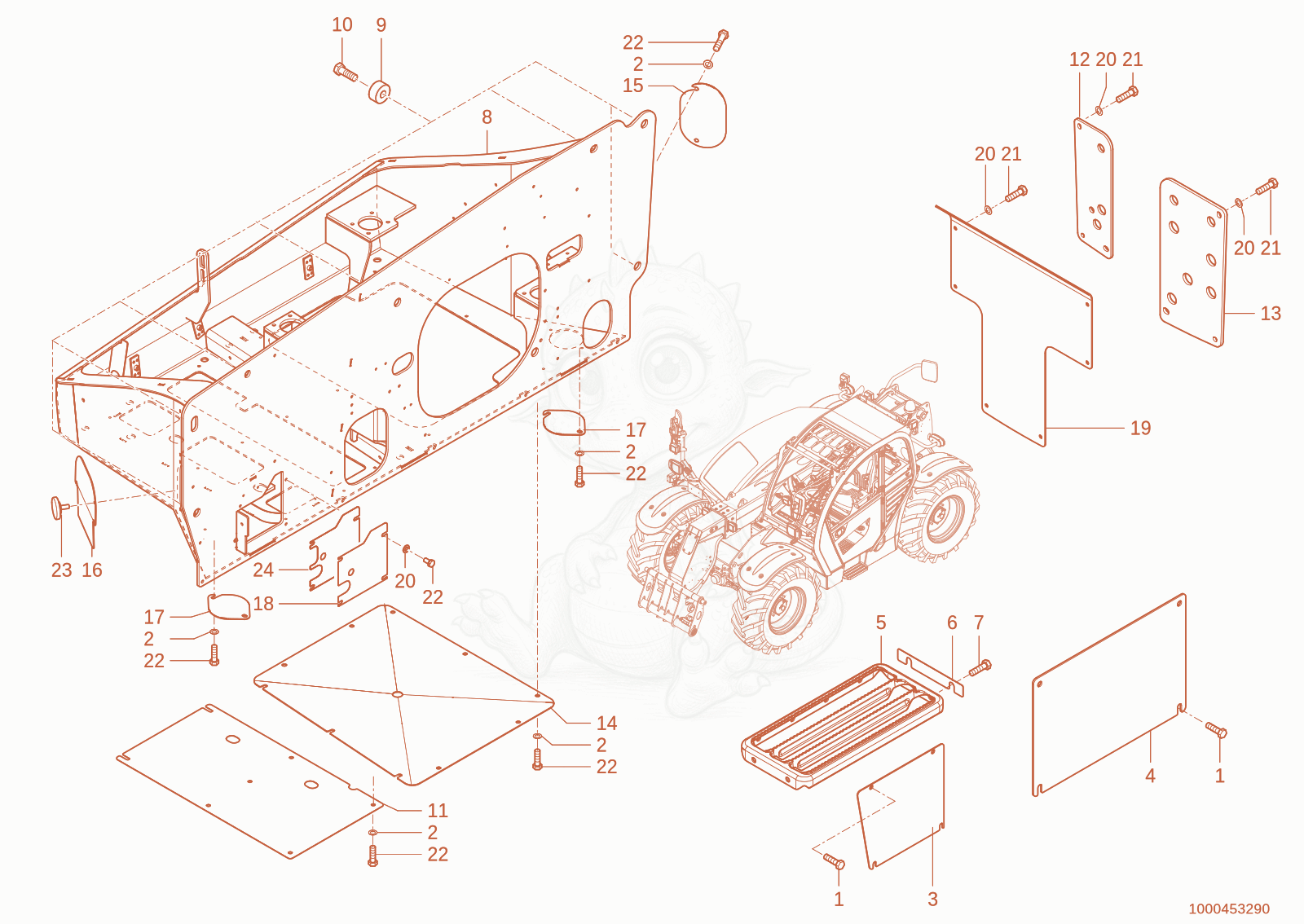

Exploded parts diagram of the trim of a Wacker Neuson TH740(415-37), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376521Not stocked
    screw×8
  • 21000013027Not stocked
    washer×19
  • 31000339569Not stocked
    cover plate×1
  • 41000356886Not stocked
    cover plate×1
  • 51000337678Not stocked
    step strap×1
  • 61000345392Not stocked
    spacer×2
  • 71000048168Not stocked
    cheese head screw×4
  • 81000448630Not stocked
    engine sump×1
  • 91000048022Not stocked
    hex screw×7
  • 101000270888Not stocked
    washer×7
  • 111000330198Not stocked
    Maintenance sheet metal×1
  • 121000301707Not stocked
    connection plate×1
  • 131000380963Not stocked
    connection plate×1
  • 141000330248
    $452.75
    Cover - 1000330248×1
  • 151000326774Not stocked
    cover×1
  • 161000417248Not stocked
    Maintenance cover×1
  • 171000330200Not stocked
    cover×2
  • 181000353518Not stocked
    Maintenance cover×1
  • 191000301709Not stocked
    Maintenance sheet metal×1
  • 201000015431Not stocked
    washer×27
  • 211000013008Not stocked
    hex screw×13
  • 221000019136Not stocked
    hex screw×27
  • 231000182999
    $4.88
    Handle - 1000182999×1
  • 241000353513Not stocked
    Maintenance cover×1
