TH744(416-12) lubrication line Diagram

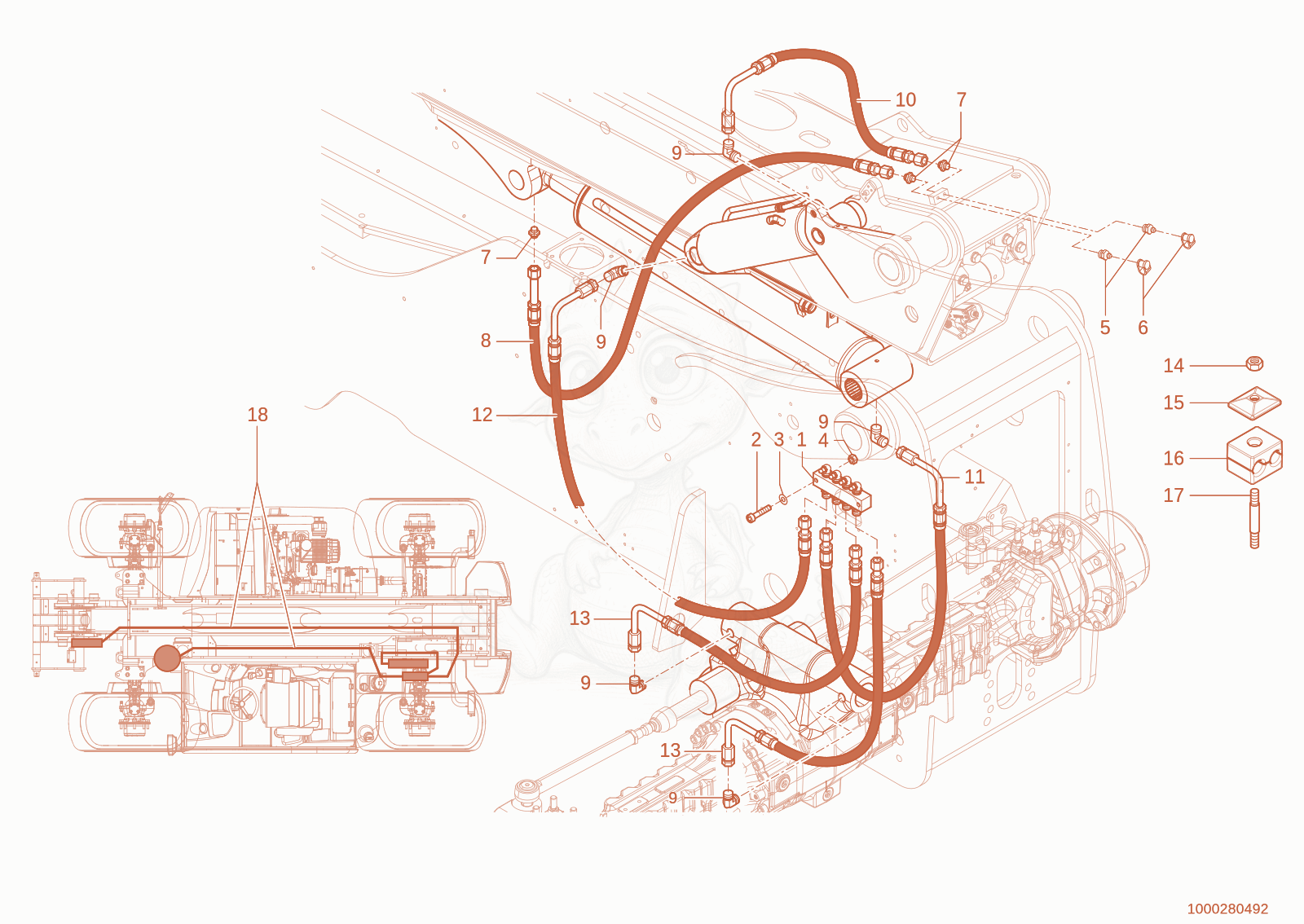

Exploded parts diagram of the lubrication line of a Wacker Neuson TH744(416-12), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000150149
    $168.74
    Nipple block - 1000150149×1
  • 21000126329
    $2.30
    CHEESE HEAD SCREW - 1000126329×2
  • 31000095342
    $1.22
    washer X-1000092302 - 1000095342×2
  • 41000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 51000050469
    $1.68
    grease nipple - 1000050469×2
  • 61000033455
    $0.30
    CAP - 1000033455×2
  • 71000150994
    $1.42
    GE06-LLM10X1K A3C - 1000150994×5
  • 81000279584Not stocked
    hp hose×1
  • 91000028213Not stocked
    screw joint×3
  • 101000250857Not stocked
    hp hose×1
  • 111000279583Not stocked
    hp hose×1
  • 121000165516Not stocked
    hp hose×1
  • 131000165239Not stocked
    hp hose×2
  • 141000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 151000031211Not stocked
    cover plate×1
  • 161000280065Not stocked
    clamp×1
  • 171000048884Not stocked
    stud×1
  • 181000322437Not stocked
    lubrication line×15
