Telehandlers

TH750(416-18) central greasing divice Diagram

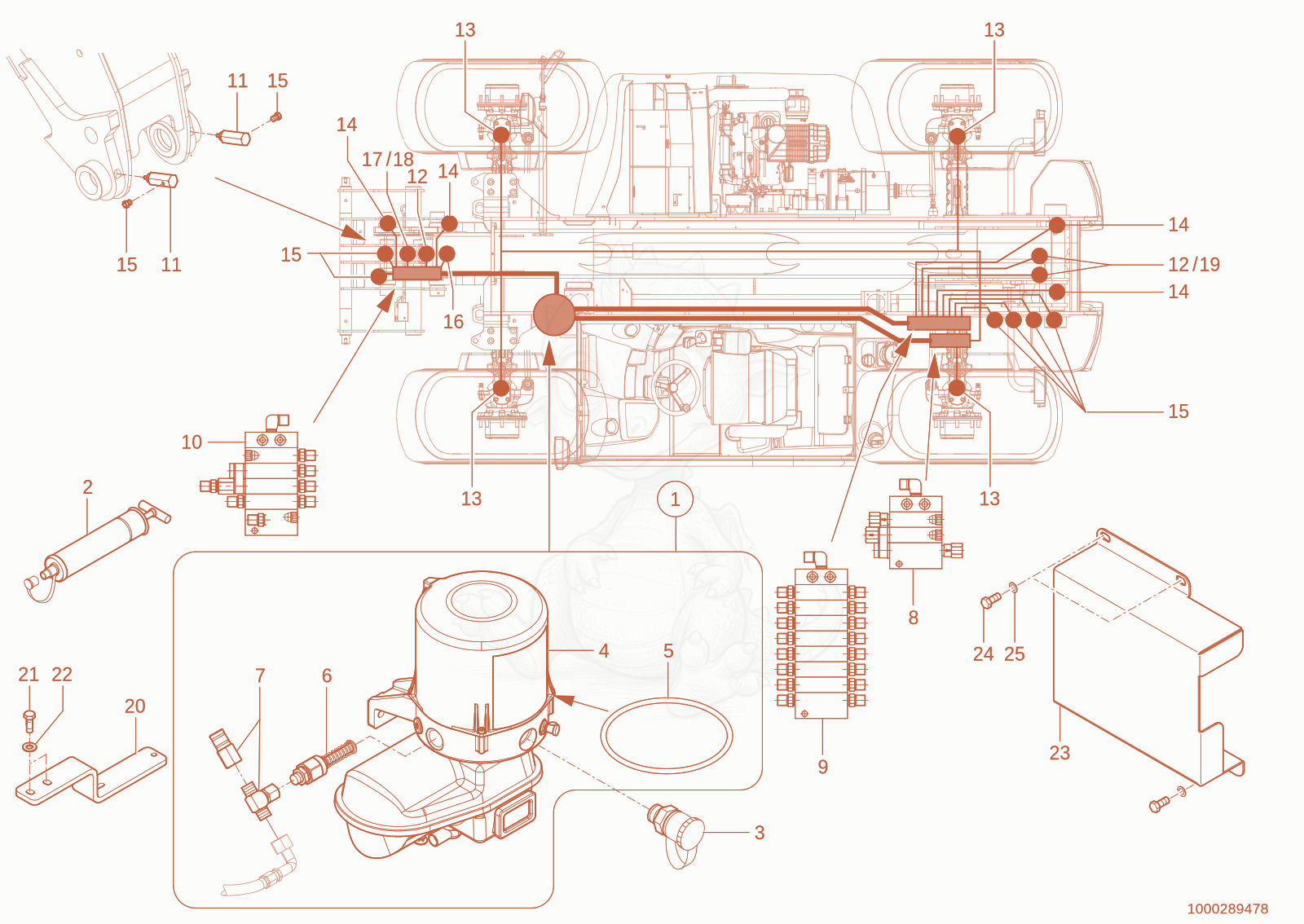

Exploded parts diagram of the central greasing divice of a Wacker Neuson TH750(416-18), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000176240
    $1,505.79
    Electropump 1000176240×1
  • 21000175460
    $57.60
    GREASE PRESS - 1000175460×1
  • 31000175461
    $76.43
    CONNECTION PIECE - 1000175461×1
  • 41000252111
    $136.16
    Container - 1000252111×1
  • 51000252112
    $4.10
    O-ring - 1000252112×1
  • 61000281553
    $288.10
    pump element - 1000281553×1
  • 71000281555
    $101.57
    excesspressure valve - 1000281555×1
  • 81000285327
    $458.01
    distributor block - 1000285327×3
  • 91000295691Not stocked
    distributor block×3
  • 101000295690Not stocked
    distributor block×1
  • 111000295696
    $21.31
    Screw Joint - 1000295696×2
  • 121000332515Not stocked
    edge screw union×3
  • 131000332521Not stocked
    screw connection×8
  • 141000332510
    $8.70
    extension - 1000332510×6
  • 151000074432
    $5.65
    screw connection - 1000074432×9
  • 161000332589Not stocked
    edge screw union×1
  • 171000138722Not stocked
    screw joint×1
  • 181000074430
    $26.26
    angle screw joint - 1000074430×1
  • 191000332527Not stocked
    angle screw joint×1
  • 201000281354Not stocked
    bracket×1
  • 211000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 221000092291
    $0.80
    WASHER - 1000092291×2
  • 231000281357Not stocked
    cover×1
  • 241000019136Not stocked
    hex screw×3
  • 251000015431Not stocked
    washer×3
