TH755

TH755(416-24) Quickhitch facility wiring harnesses Diagram

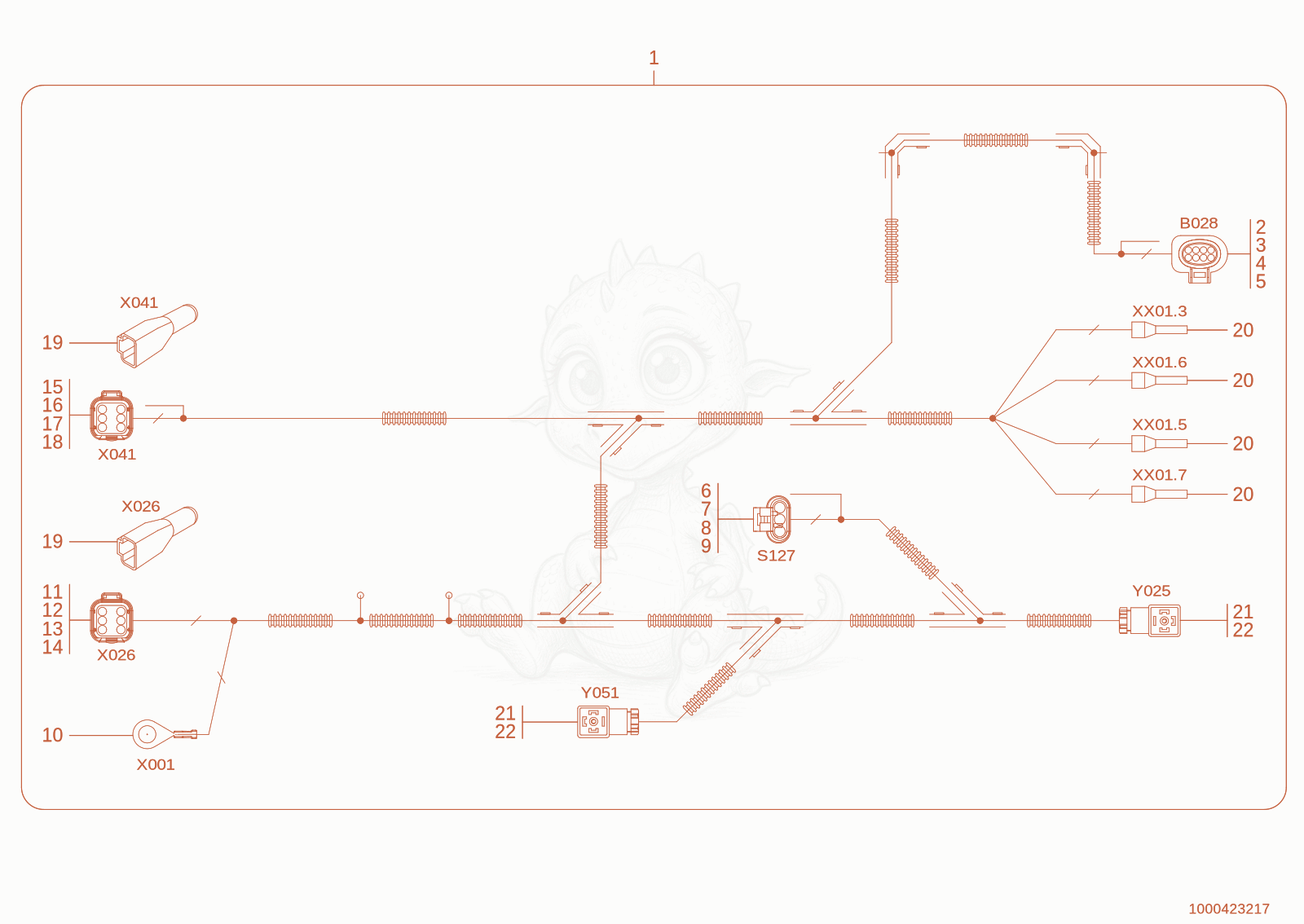

Exploded parts diagram of the Quickhitch facility wiring harnesses of a Wacker Neuson TH755(416-24), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000400650Not stocked
    wiring harness×1
  • 21000262118
    $17.60
    bushing housing - 1000262118×1
  • 31000104732
    $3.06
    CONTACT - 1000104732×7
  • 41000104740
    $1.41
    lock plug - 1000104740×1
  • 51000104738
    $1.51
    seal - 1000104738×7
  • 61000051989Not stocked
    bushing housing×1
  • 71000128773
    $0.32
    Plug - 1000128773×1
  • 81000051990Not stocked
    bushing contact×2
  • 91000052672Not stocked
    seal×2
  • 101000100364
    $3.82
    cable lug - 1000100364×1
  • 111000362407Not stocked
    pin contact×4
  • 121000030446Not stocked
    plug×1
  • 131000309282Not stocked
    pin contact×1
  • 141000085023
    $9.14
    Pin housing - 1000085023×1
  • 151000355191Not stocked
    pin contact×2
  • 161000030446Not stocked
    plug×1
  • 171000085028Not stocked
    pin contact×3
  • 181000299132Not stocked
    pin housing×1
  • 191000150334
    $10.67
    Rubber cap - 1000150334×1
  • 201000098962
    $0.68
    endsleeve - 1000098962×1
  • 211000000455
    $8.90
    Plug - 1000000455×1
  • 221000191288
    $12.57
    Seal - 1000191288×1
