TH942

TH942(416-29) Oil circulation - Control valve Diagram

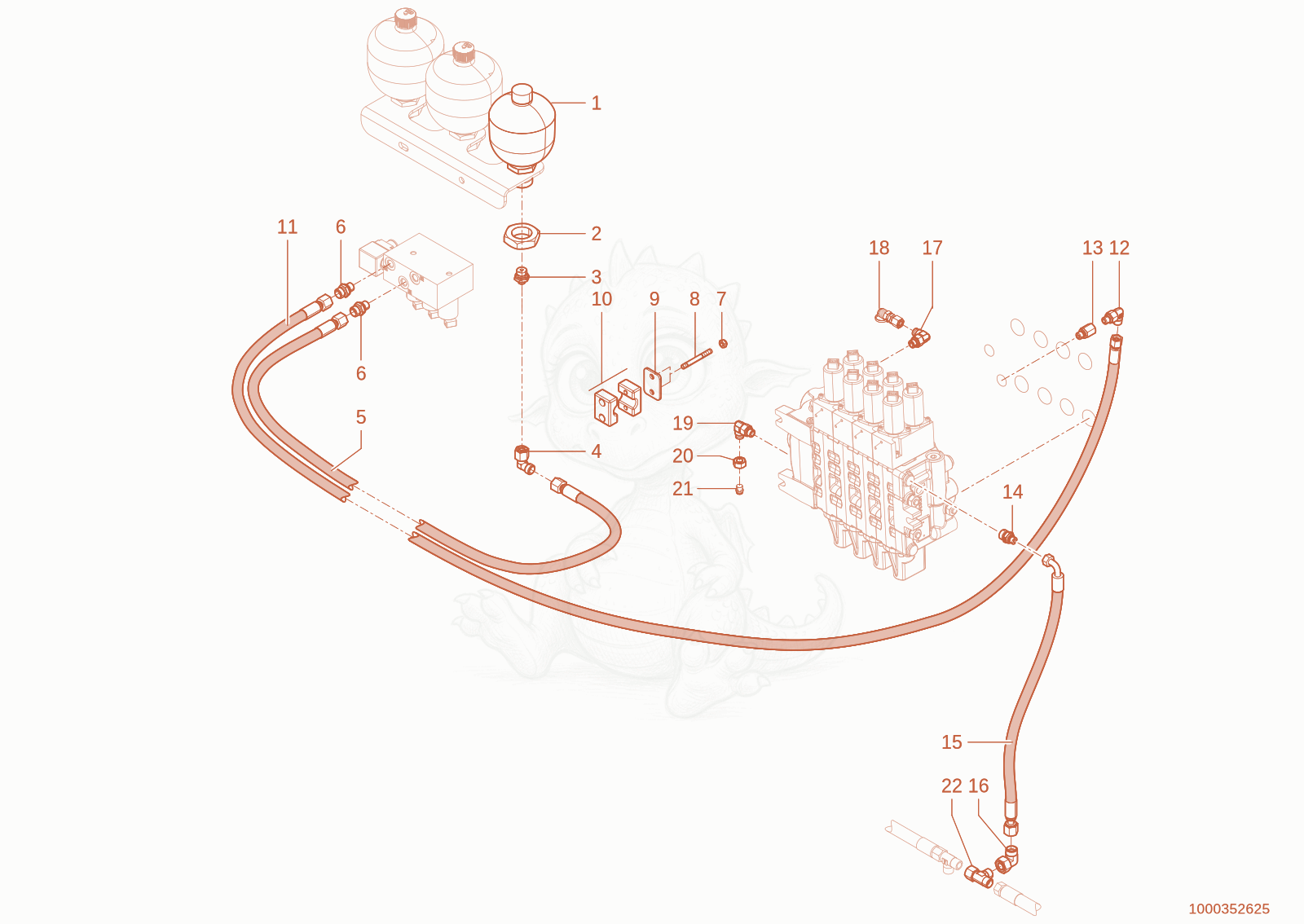

Exploded parts diagram of the Oil circulation - Control valve of a Wacker Neuson TH942(416-29), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000352230
    $369.40
    Pressure accumulator - 1000352230×1
  • 21000049039Not stocked
    hexagon nut×1
  • 31000106888
    $5.47
    GE10LR1/2"EDOMDA3C - 1000106888×1
  • 41000015510Not stocked
    screw joint×1
  • 51000277473Not stocked
    Hose×1
  • 61000015490Not stocked
    screw joint×1
  • 71000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 81000048887
    $1.31
    STUD - 1000048887×2
  • 91000031260Not stocked
    cover plate×1
  • 101000031602
    $3.52
    CLAMP - 1000031602×1
  • 111000271449Not stocked
    Hose×1
  • 121000146696
    $21.60
    EWE10LR 1/4 - 1000146696×1
  • 131000175386Not stocked
    filter×1
  • 141000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×1
  • 151000147933
    $17.98
    SLHYDR 2SC 10 PN12 0 PN12 90 L560,0 - 1000147933×1
  • 161000170681
    $53.60
    EW 12 L 45�� - 1000170681×1
  • 171000028741Not stocked
    screw joint×1
  • 181000270654Not stocked
    minimess point×1
  • 191000028741Not stocked
    screw joint×1
  • 201000050501Not stocked
    union nut×1
  • 211000114996Not stocked
    lock piece×1
  • 221000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
