TH955

TH955(416-06) 3. Quickhitch facility cycle Diagram

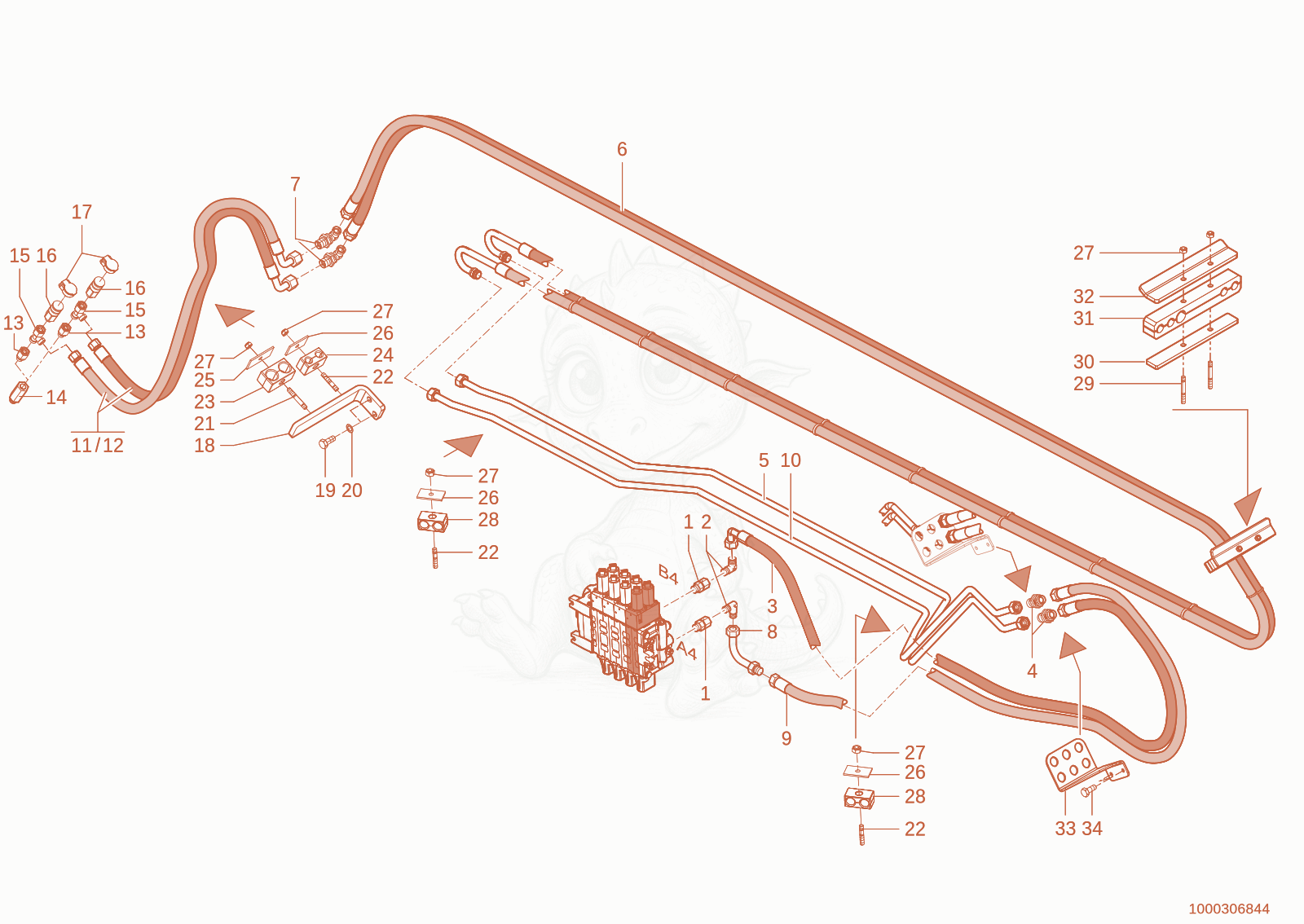

Exploded parts diagram of the 3. Quickhitch facility cycle of a Wacker Neuson TH955(416-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000240635
    $37.22
    EGE 18PLR ED R3/4 A3C - 1000240635×2
  • 21000052139
    $9.69
    W18-L - 1000052139×3
  • 31000314755Not stocked
    Hose×1
  • 41000015563Not stocked
    screw joint×2
  • 51000293504Not stocked
    pipe line×1
  • 61000299431Not stocked
    hose×1
  • 71000028331Not stocked
    screw joint×2
  • 81000147641
    $38.64
    CONNECTION PIECE - 1000147641×1
  • 91000314758Not stocked
    Hose×1
  • 101000293505Not stocked
    pipe line×1
  • 111000306499Not stocked
    Hose×2
  • 121000306499Not stocked
    Hose×2
  • 131000028198Not stocked
    screw joint×2
  • 141000293697
    $54.45
    VERSCHRAUBUNG - 1000293697×2
  • 151000015539Not stocked
    screw joint×2
  • 161000019246Not stocked
    quick lock coupling×2
  • 171000033344
    $6.47
    Cover - 1000033344×2
  • 181000239988
    $48.66
    Bracket - 1000239988×1
  • 191000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 201000092291
    $0.80
    WASHER - 1000092291×2
  • 211000048893Not stocked
    stud×1
  • 221000233926
    $1.99
    Stud M8x110-8.8 VZD - 1000233926×3
  • 231000124488
    $4.83
    CLAMP - 1000124488×1
  • 241000031275
    $2.16
    CLAMP - 1000031275×1
  • 251000031245Not stocked
    cover plate×1
  • 261000031230Not stocked
    cover plate×3
  • 271000013022Not stocked
    hexagon nut×6
  • 281000031626
    $3.54
    CLAMP - 1000031626×1
  • 291000048896Not stocked
    stud×2
  • 301000279223Not stocked
    plate×1
  • 311000266487Not stocked
    clamp×1
  • 321000269314Not stocked
    cover plate×1
  • 331000268223Not stocked
    bracket×1
  • 341000013008Not stocked
    hex screw×2
