TH955(416-16) wheel cover Diagram

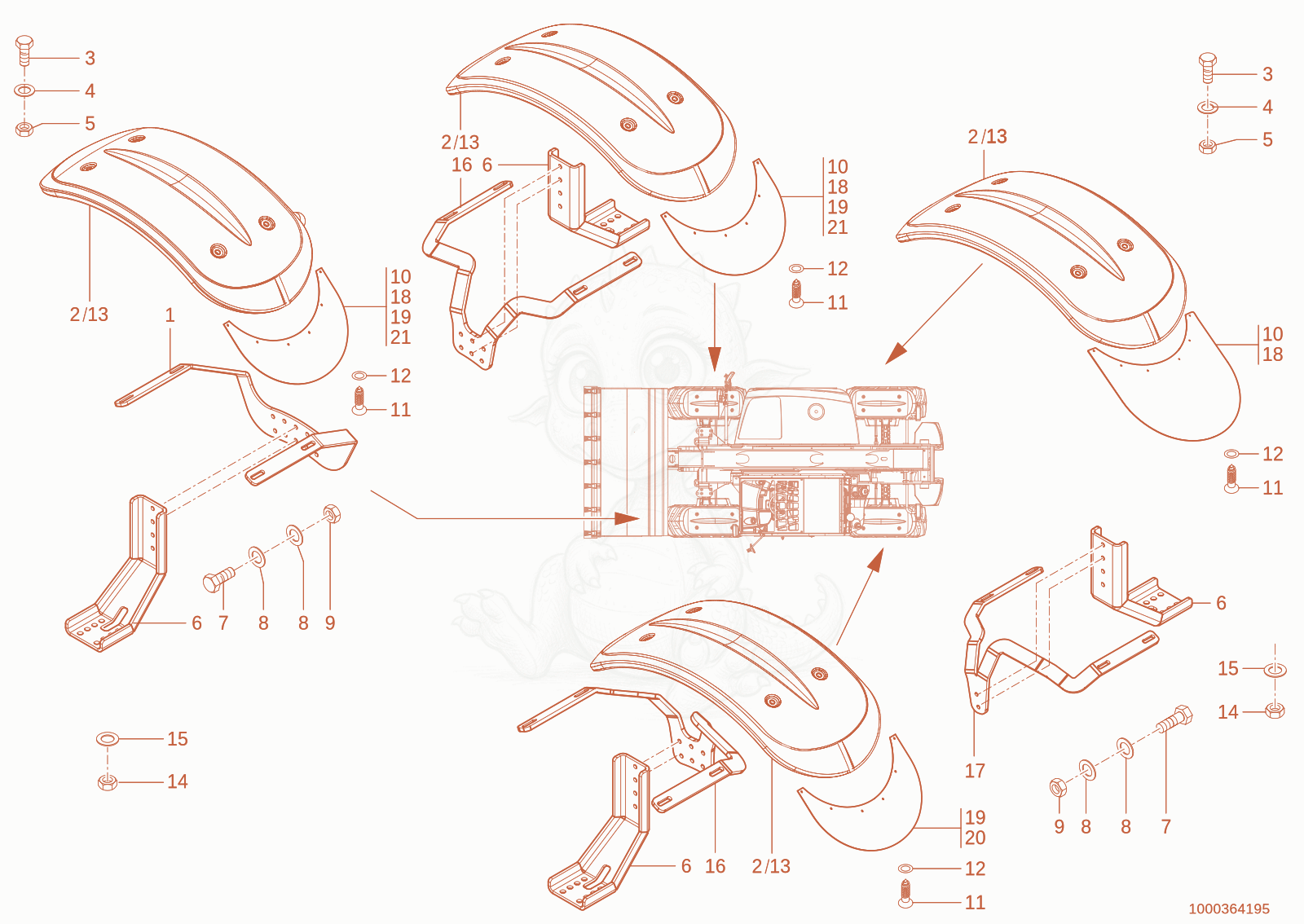

Exploded parts diagram of the wheel cover of a Wacker Neuson TH955(416-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000271106Not stocked
    bracket×1
  • 21000342219Not stocked
    wheel cover×4
  • 31000085413
    $1.20
    hex screw - 1000085413×16
  • 41000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×32
  • 51000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×16
  • 61000303571Not stocked
    bracket×4
  • 71000047790Not stocked
    hex screw×8
  • 81000049219Not stocked
    washer×16
  • 91000019657
    $3.09
    HEXAGON NUT - 1000019657×8
  • 101000344642Not stocked
    spray rubber×2
  • 111000048623Not stocked
    ovalhead screw×12
  • 121000095342
    $1.22
    washer X-1000092302 - 1000095342×12
  • 131000289521Not stocked
    wheel cover×4
  • 141000020788Not stocked
    hexagon nut×16
  • 151000021001
    $0.89
    WASHER - 1000021001×16
  • 161000298505Not stocked
    bracket×2
  • 171000298508Not stocked
    bracket×1
  • 181000304208Not stocked
    spray rubber×1
  • 191000179527Not stocked
    spray rubber×1
  • 201000294225Not stocked
    spray rubber×2
  • 211000340838Not stocked
    spray rubber×2
