TRAILER-CUB 700 GM

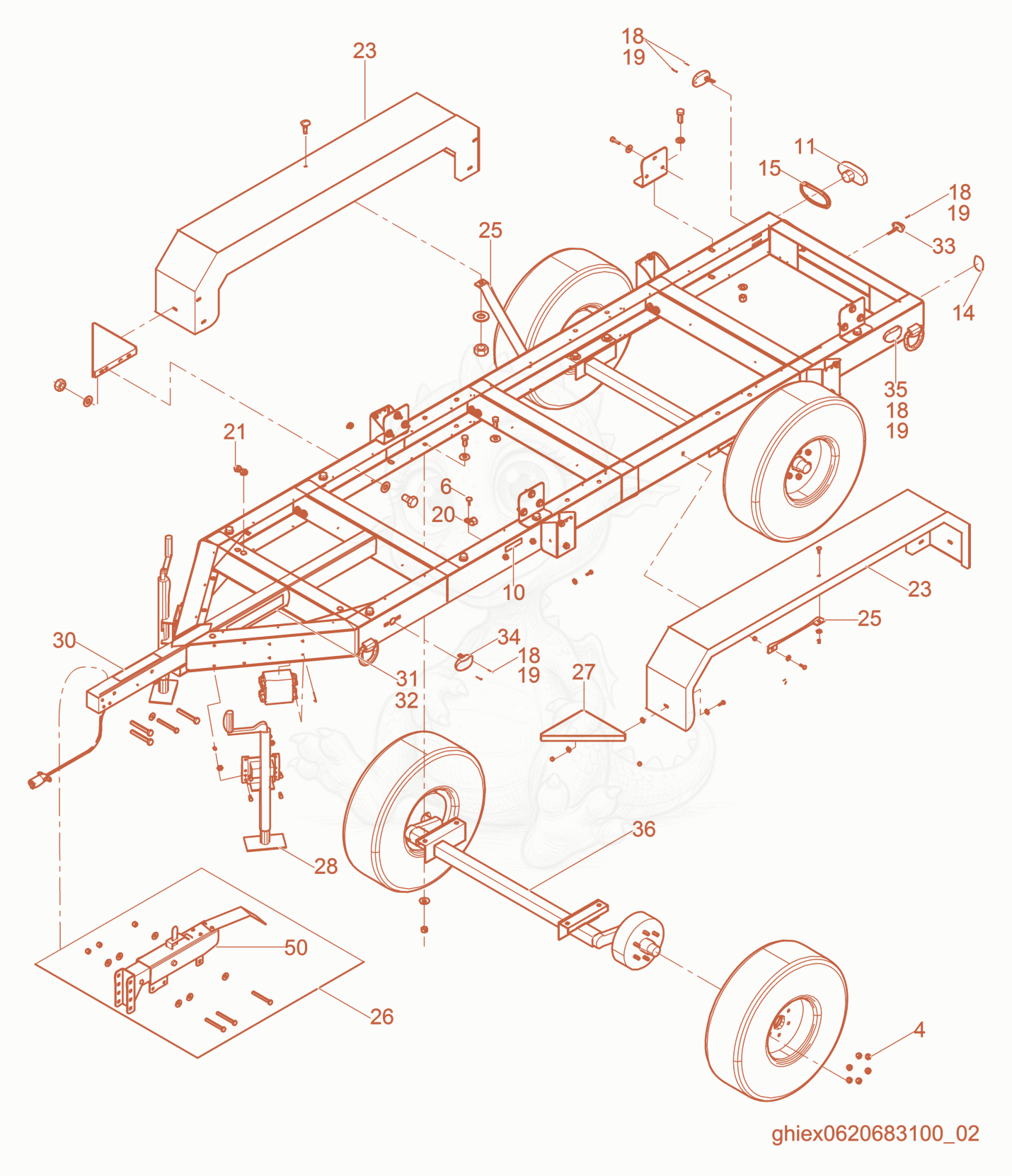

TRAILER-CUB700GM Trailer Frame w/Surge Brake Tandem Axle Diagram
- NUT-LUG - 5000151981×24
- RIVET-POP,LARGE HEAD - 5000155902×10
- Label - 5000152148×1
- LIGHT-TAIL - 5000151975×2
- REFLECTOR-RED - 5000152149×2
- Grommet - 5000151999×2
- SCREW-MACHINE #8 - 5000152004×10
- NUT-SPEED - 5000151956×10
- CLAMP-WIRE RETAINER - 5000155901×10
- GROMMET-HOLE - 5000152200×17
- COUPLING,PINTLE EYE - 5000152203×1
- Fender - 5000152011×2
- CHAIN-SAFETY - 5000151952×2
- BRACE-FENDER - 5000151958×2
- ACTUATOR-HYD.BRAKE - 5000155883×1
- BRACKET-FENDER,STEP - 5000151961×2
- JACK W/MTG.PLATE - 5000155899×2
- Label-safety - 5000158541×1
- Label - 5000158528×1
- Label - 5000158517×1
- LIGHT-LICENSE PLATE LED - 5000175124×1
- LIGHT-AMBER - 5000175260×2
- LIGHT-RED - 5000175261×2
- 365000175269Not stockedTandem hydraulic axle×2
- CABLE W/HOOKS - 5000152230×1
