VP1030A-VIBROPLATE

VP1030A Beltguard/Clutch Diagram

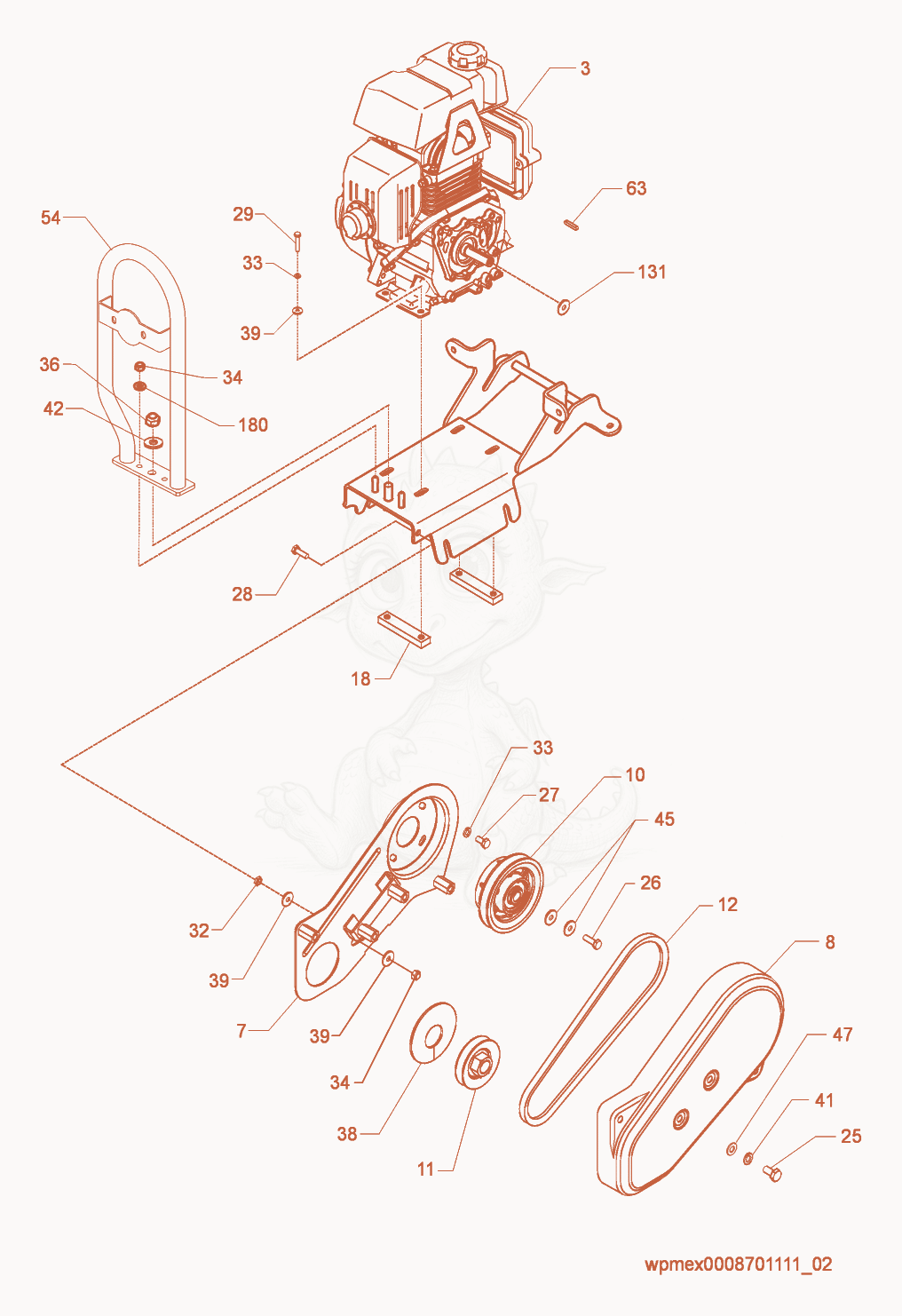

Exploded parts diagram of the Beltguard/Clutch of a Wacker Neuson VP1030A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000400019
    $1,843.40
    ENGINE-HONDA GX100UT SE3 X-5100045647 - 5000400019×1
  • 75000130073Not stocked
    Beltguard×1
  • 85000130010
    $96.29
    BELTGUARD-FRONT - 5000130010×1
  • 105000130041
    $373.67
    CLUTCH-CENTRIFUGAL - 5000130041×1
  • 115000130522
    $51.87
    X-5000403567 PULLEY-EXCITER,MACHINED - 5000130522×1
  • 125000114178
    $7.95
    BELT-V A30 - 5000114178×1
  • 185000130139
    $9.13
    CONSOLE-BAR - 5000130139×2
  • 255000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×4
  • 265000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×1
  • 275000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 285000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 295000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×4
  • 325000010805
    $0.06
    NUT-M8,JAM - 5000010805×1
  • 335000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×8
  • 345000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×3
  • 365000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×3
  • 385000130040
    $2.45
    GUARD-STONE - 5000130040×1
  • 395000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×6
  • 415000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×4
  • 425000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×1
  • 455000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×2
  • 475000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 545000401281
    $104.28
    HANDLE LIFTCAGE WELDMENT - 5000401281×1
  • 635000013838
    $3.01
    KEY A5 X 5 X 30 FORM A - 5000013838×1
  • 1315000130904
    $1.36
    WASHER 25.4 X 15.5 X 5.0 - 5000130904×1
  • 1805000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×2
