VP1030A

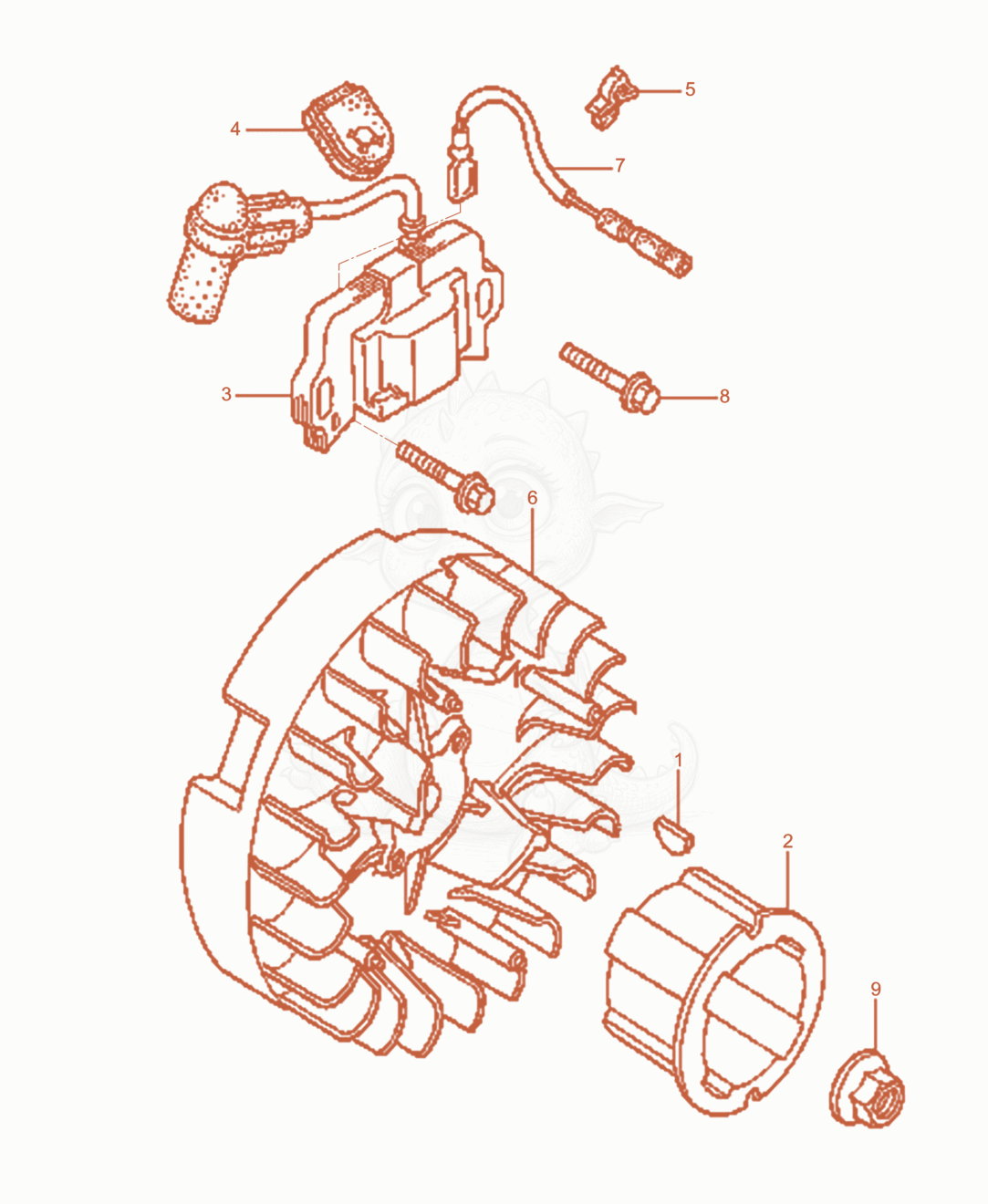

VP1030A Flywheel/Ignition Coil Diagram
- WEDGE 25 X 18 - 5000068967×1
- Carrier - 5100049213×1
- ignition coil - 5100051893×1
- Grommet - 5000162120×1
- Clip - 5000157743×1
- flywheel - 5100051894×1
- Wire - 5000162122×1
- SCREW M6 X 20,HX.FLANGE - 5000071055×2
- NUT 14MM - 5000162686×1
