VP1135R-AU

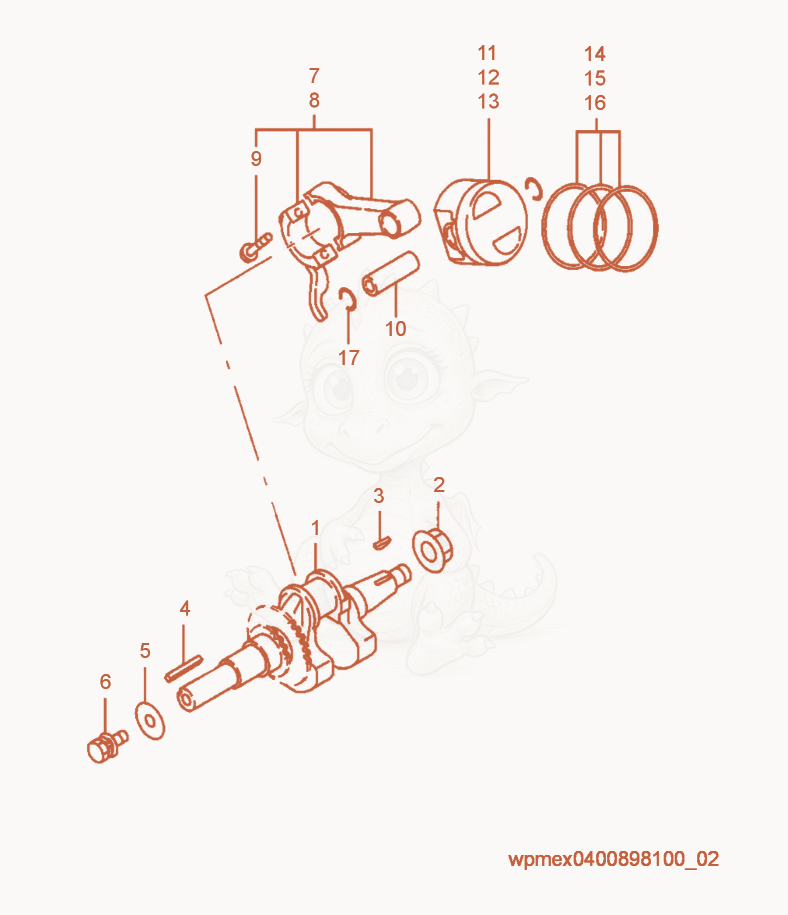

VP1135R-AU Crankshaft Diagram

Exploded parts diagram of the Crankshaft of a Wacker Neuson VP1135R-AU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000216800Not stocked
    Crankshaft cpl.×1
  • 25000156463
    $3.18
    NUT-FLANGE - 5000156463×1
  • 35000156464
    $4.48
    KEY-WOODRUFF - 5000156464×1
  • 45000216684Not stocked
    Key×1
  • 55000216798Not stocked
    Washer×1
  • 65000156616
    $2.86
    BOLT-FLANGE - 5000156616×1
  • 75000205119
    $232.16
    CONNECTING ROD COMPLETE - 5000205119×1
  • 85000216801Not stocked
    Connecting rod cpl.×1
  • 95000156466
    $9.30
    BOLT-CONNECTING ROD - 5000156466×2
  • 105000216802Not stocked
    Piston pin×1
  • 115000216803Not stocked
    Piston×1
  • 125000216804Not stocked
    Piston×1
  • 135000216805Not stocked
    Piston×1
  • 145000205121
    $62.18
    SET-PISTON,RINGS - 5000205121×1
  • 155000216806Not stocked
    Piston Ring Set×1
  • 165000216807Not stocked
    Piston Ring Set×1
  • 175000117229
    $1.20
    Clip - 5000117229×2
