VP1135R-AU

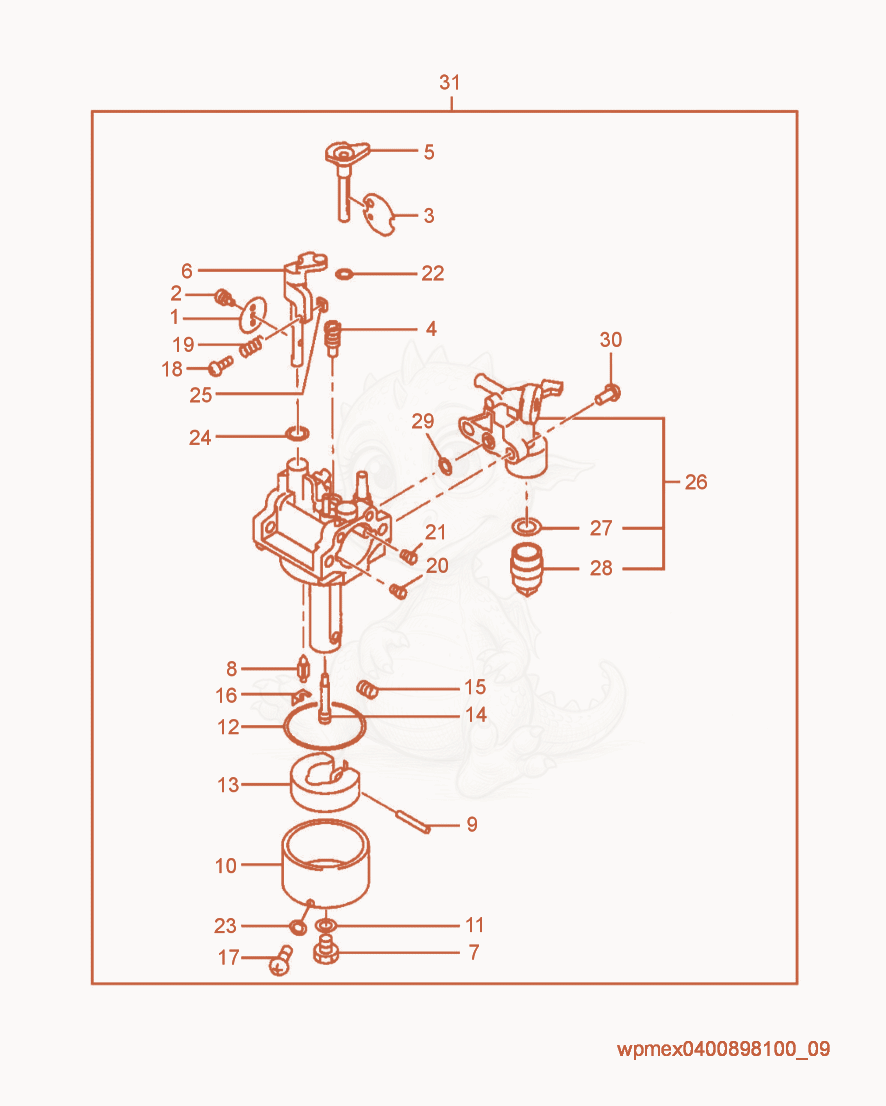

VP1135R-AU Carburetor cpl. Diagram
- VALVE-THROTTLE - 5000205150×1
- screw - 5000088468×1
- VALVE-CHOKE SHUTTER - 5000156536×1
- JET-PILOT - 5000156537×1
- LEVER-CHOKE CONTROL - 5000156538×1
- 65000216814Not stockedThrottle shaft×1
- 75000088474Not stockedBolt×1
- needle - 5000156541×1
- pin - 5000205152×1
- X-5000208318 BOWL-CARBURETOR - 5000156760×1
- Gasket - 5000053688×1
- GASKET-FLOAT CHAMBER - 5000053684×1
- FLOAT-ASSEMBLY - 5000077416×1
- JET-NOZZLE,MAIN - 5000205153×1
- JET-MAIN - 5000205154×1
- CLIP - 5000156418×1
- bolt - 5000156761×1
- Screw - 5000210058×1
- Spring - 5000210059×1
- JET-AIR - 5000115768×1
- JET-PILOT,AIR - 5000156548×1
- seal - 5000084503×1
- GASKET - 5000156549×1
- seal - 5000156546×1
- Nut - 5000210060×1
- VALVE-FUEL - 5000210061×1
- GASKET - 5000208321×1
- CUP - 5000208322×1
- O-Ring - 5000210062×1
- Screw - 5000210063×1
- Carburetor - 5000216813×2
