VP2050A

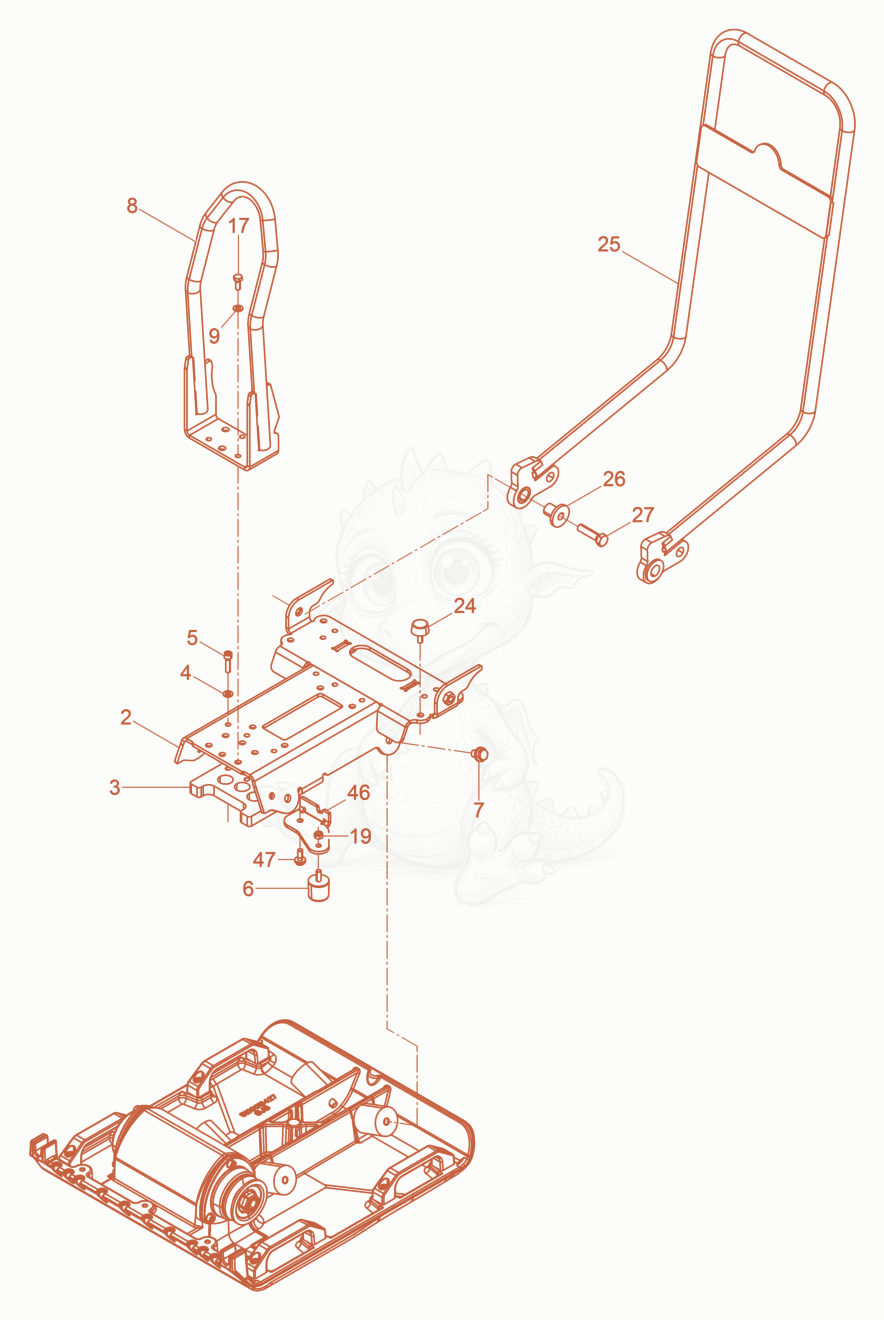

VP2050A Vibration Plate Diagram
- Upper Mass - 5100025664×1
- Plate - 5100025410×1
- WASHER-FLAT,M8,ZINC - 5000010622×6
- SCREW M8 X 30 SOC.HD. - 5000011541×6
- Shockmount 35 x 40 - 5100016327×1
- corrugated-head screw M12x 16 - 5100024478×4
- Shackle - 5100026160×1
- WASHER-FLAT,M8,ZINC - 5000010622×3
- SCREW M8 X 20 HX.HD. - 5000012362×3
- NUT-LOCK VM8 HEX - 5000033356×1
- Shockmount 30 x 15 - 5100016317×4
- Shackle cpl. - 5100018366×1
- Bush - 5100016433×2
- SCREW M12 X 50 HX.HD. - 5000220523×2
- PLUG .285 DIA,PUSH-IN,PLASTIC - 5002006531×3
- Plate - 5100018431×1
- corrugated-head screw M 8x 20 - 5100018058×1
