VP2050AW VIBROPLATE

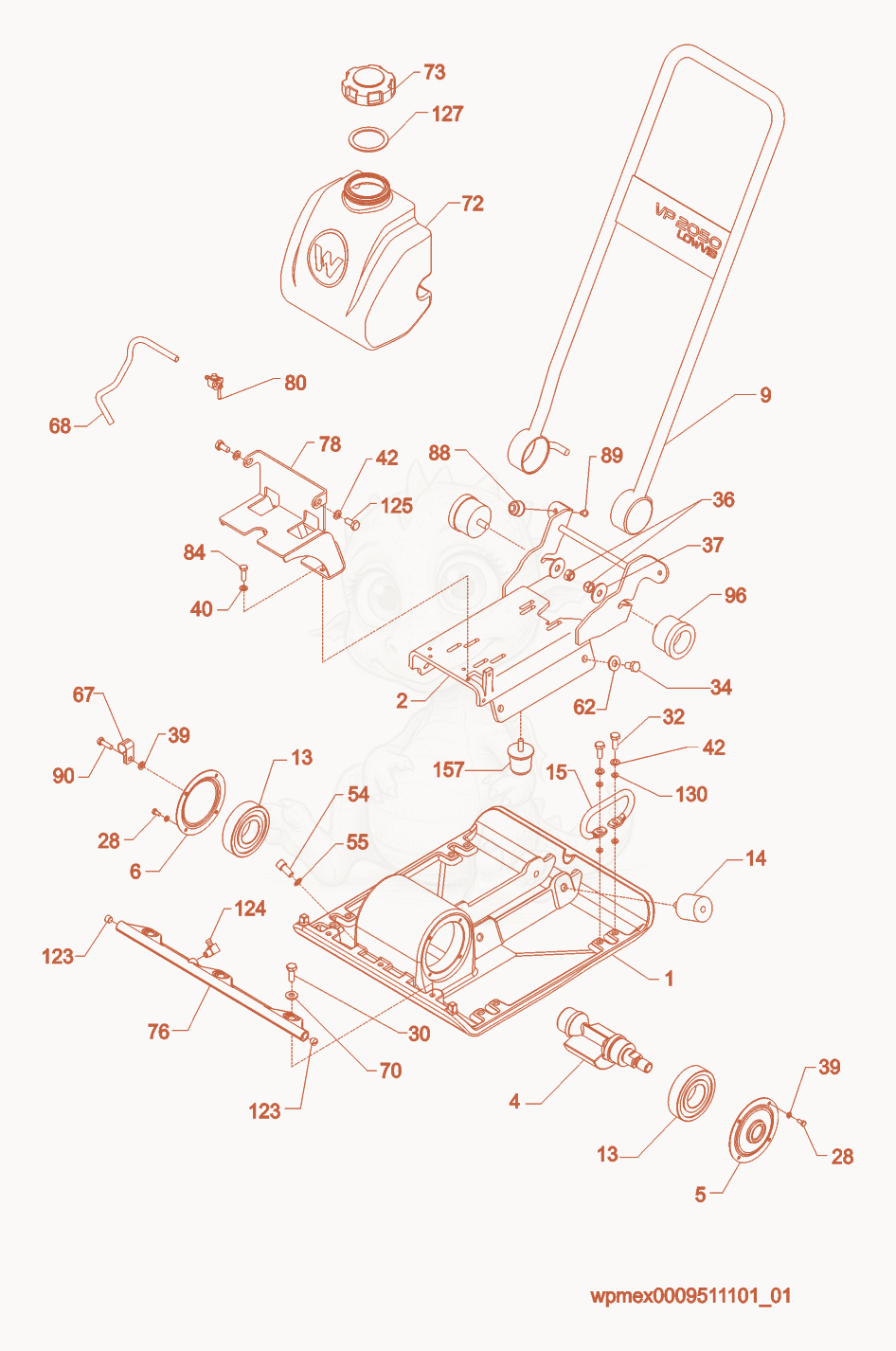

VP2050AW Baseplate/Console cpl. Diagram

Exploded parts diagram of the Baseplate/Console cpl. of a Wacker Neuson VP2050AW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000401273
    $775.13
    ASM_Baseplate 50 cm - 5000401273×1
  • 25000401603
    $551.66
    Console weldment - 5000401603×1
  • 45000119047
    $217.29
    SHAFT-EXCITER - 5000119047×1
  • 55000155432
    $112.26
    CAPS-SEAL COMPLETE - 5000155432×1
  • 65000119157
    $19.81
    ASM_Plate-Endcap, w/o Hole, Painted - 5000119157×1
  • 95000130577
    $327.60
    GUIDE HANDLE ASSEMBLY - 5000130577×1
  • 135000119144
    $78.32
    BEARING-RADIAL BALL,6310-C3 - 5000119144×2
  • 145000130000
    $41.40
    SHOCKMOUNT 50X55,FORM B - 5000130000×4
  • 155000130881
    $69.08
    HANDLE LIFTING KIT - 5000130881×4
  • 285000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×8
  • 305000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×3
  • 325000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×8
  • 345000016433
    $0.35
    SCREW M12 X 25-10.9,HX HD - 5000016433×4
  • 365000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 375000114766
    $6.50
    WASHER .531X 1.625X.120,FLAT - 5000114766×2
  • 395000010649
    $0.07
    WASHER-LOCK B6 - 5000010649×8
  • 405000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×4
  • 425000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×10
  • 545000017086
    $1.28
    Screw-M12 x 25, 12.9,Soc Mechanical Zinc - 5000017086×1
  • 555000013444
    $3.06
    SEAL-RING 12 X 18 - 5000013444×1
  • 625000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 675000130003
    $9.78
    Clamp - 5000130003×1
  • 685002005049
    $18.95
    HOSE-FUEL 3/16 X 16.50 - 5002005049×1
  • 705000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×3
  • 725000401555
    $212.23
    Water Tank - 5000401555×1
  • 735000130374
    $19.01
    CAP-WATER TANK - 5000130374×1
  • 765000400303
    $159.41
    MANIFOLD-WATER ASSY,R-5000118387 - 5000400303×1
  • 785000400252
    $139.35
    BRACKET-TANK WELDMENT - 5000400252×1
  • 805000027149
    $19.44
    VALVE-SHUTOFF - 5000027149×1
  • 845000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×4
  • 885000105056
    $4.79
    SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
  • 895000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×2
  • 905000011470
    $0.11
    SCREW M6 X 20 HX.HD. - 5000011470×1
  • 965000130064
    $27.51
    SHOCKMOUNT-LOW VIBE - 5000130064×2
  • 1235000400300
    $4.80
    Plug - 5000400300×2
  • 1245000403537
    $9.57
    Fitting-Elbow - 5000403537×1
  • 1255000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×2
  • 1275000130641
    $12.53
    SEAL-RUBBER - 5000130641×1
  • 1305000130787
    $1.02
    SPACER-RUBBER - 5000130787×16
  • 1575000130961
    $30.49
    Shockmount - 5000130961×1
