Vibration Plate VP2050Aw CN

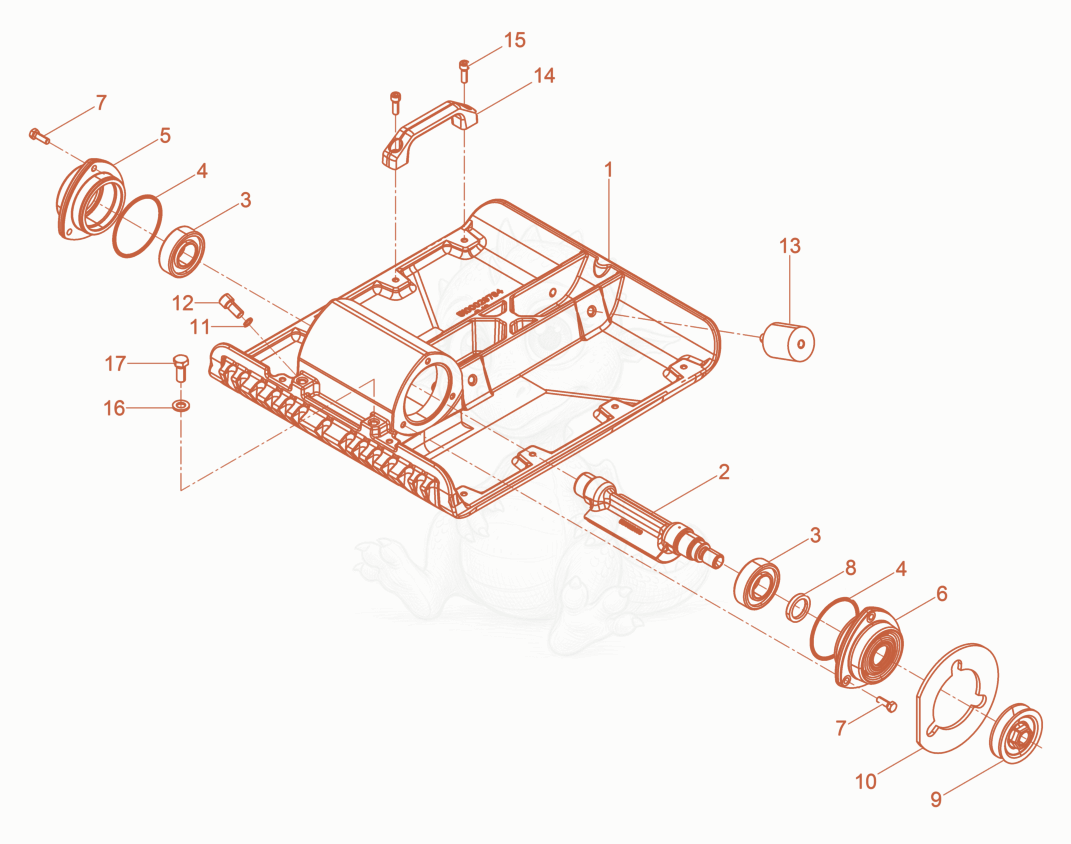

VP2050AWCN Baseplate cpl. Diagram

Exploded parts diagram of the Baseplate cpl. of a Wacker Neuson VP2050AWCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100029785
    $1,092.06
    Baseplate - 5100029785×1
  • 25100022481
    $397.87
    Eccentric shaft - 5100022481×1
  • 35100018326
    $89.72
    Cylindrical roller bearing NJ2207 - 5100018326×2
  • 45100016445
    $1.10
    O-ring 88,49x 3,53 - 5100016445×2
  • 55100022486
    $48.77
    Bearing bracket - 5100022486×1
  • 65100022485
    $46.26
    Bearing bracket (with hole) - 5100022485×1
  • 75000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×6
  • 85100016446
    $10.84
    Rotary shaft seal B 30x 42x 7 - 5100016446×1
  • 95100022460
    $62.13
    V-belt pulley - 5100022460×1
  • 105100028857
    $13.71
    Sealing - 5100028857×1
  • 115000124908
    $0.22
    SEAL RING A-12X15.5 AL - 5000124908×1
  • 125000011530Not stocked
    Cheese head screw×1
  • 135100016316
    $22.22
    Shockmount 50x55 - 5100016316×4
  • 145100024557
    $11.84
    Bow handle - 5100024557×4
  • 155100029787
    $0.41
    Cheese head screw M 8x 25 - 5100029787×8
  • 165000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
  • 175000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×2
