VP2050Y-VIBROPLATE

VP2050Y Air Cleaner/Muffler Diagram

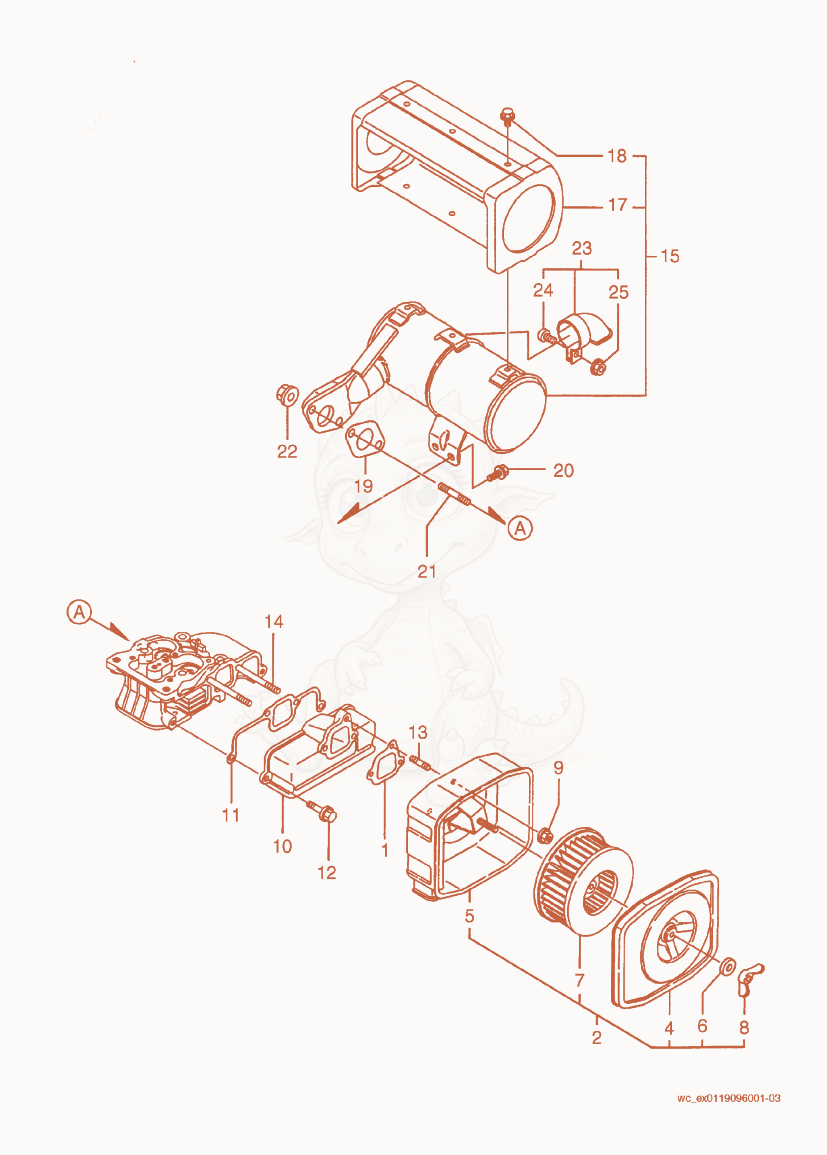

Exploded parts diagram of the Air Cleaner/Muffler of a Wacker Neuson VP2050Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000073652Not stocked
    Air cleaner gasket×1
  • 25000119892
    $161.61
    AIR CLEANER - 5000119892×1
  • 45000073654
    $58.32
    COVER-AIR CLEANER - 5000073654×1
  • 55000073655
    $53.50
    HOUSING-AIR CLEANER CASE - 5000073655×1
  • 65000073658
    $4.35
    SEAL-WASHER - 5000073658×1
  • 75000085578
    $34.82
    FILTER-AIR - 5000085578×1
  • 85000073657
    $2.92
    NUT-WING - 5000073657×1
  • 95000119893
    $2.01
    Nut - 5000119893×3
  • 105000119894
    $55.91
    MANIFOLD-INTAKE - 5000119894×1
  • 115000119895
    $4.38
    GASKET-INTAKE,AIR - 5000119895×1
  • 125000073614
    $1.39
    SCREW M6 X 25,HX.FLANGE - 5000073614×2
  • 135000085577
    $2.33
    STUD M6 X 14 - 5000085577×1
  • 145000073630
    $2.54
    STUD M6 X 55 - 5000073630×2
  • 155000150861
    $797.07
    MUFFLER W/COVER - 5000150861×1
  • 175000085606
    $168.44
    COVER-MUFFLER - 5000085606×1
  • 185000119905
    $2.07
    BOLT-M6 X 8 - 5000119905×6
  • 195000073660Not stocked
    Gasket×1
  • 205000073659
    $2.07
    SCREW M6 X 16,HX.FLANGE - 5000073659×2
  • 215000073640
    $2.54
    STUD M8 X 18 - 5000073640×2
  • 225000073665
    $2.09
    NUT M8,FLANGE - 5000073665×2
  • 235000150375
    $46.15
    BAFFLE-EXHAUST - 5000150375×1
  • 245000150376
    $2.22
    SCREW M6X18 - 5000150376×1
  • 255000119722
    $2.61
    NUT-M6 - 5000119722×1
