VP40H-VIBROPLATE

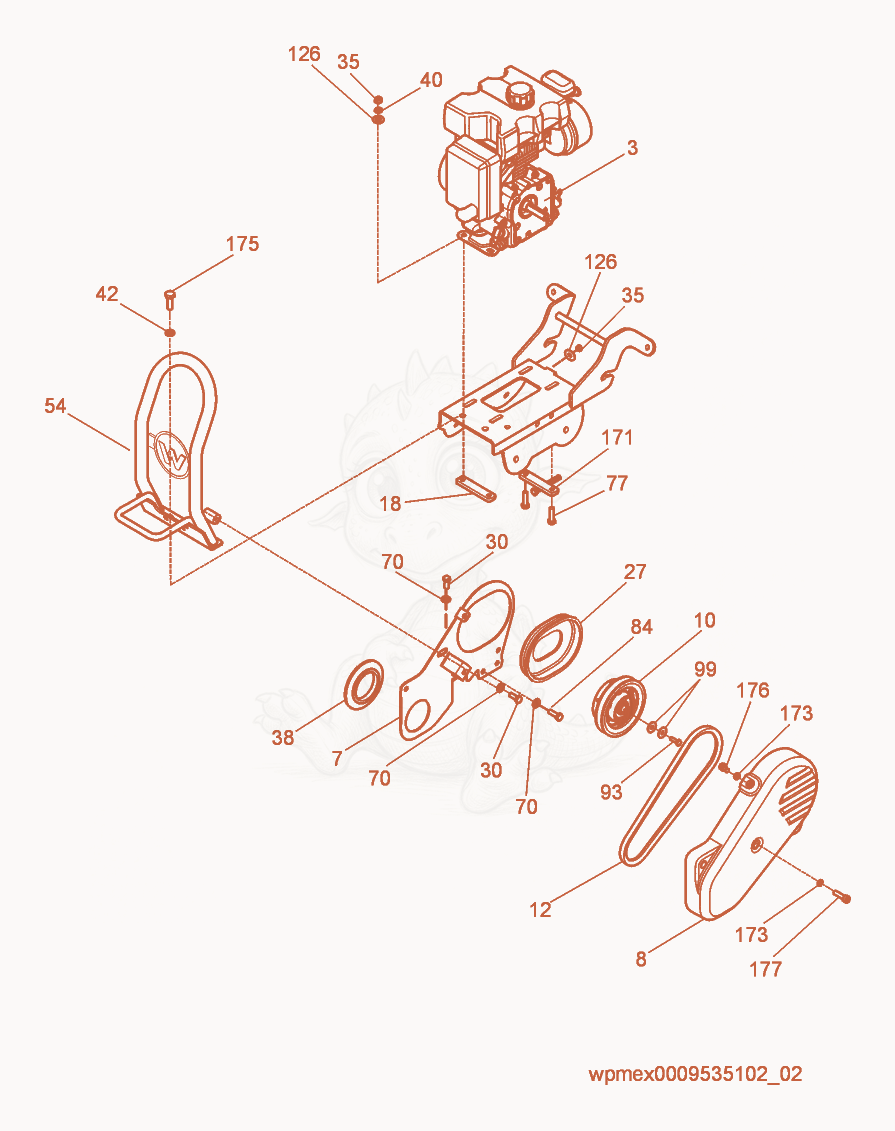

VP40H Beltguard/Clutch Diagram

Exploded parts diagram of the Beltguard/Clutch of a Wacker Neuson VP40H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000130955Not stocked
    Engine-Robin×1
  • 75000400221Not stocked
    Beltguard×1
  • 85000404869Not stocked
    Beltguard×1
  • 105000130041
    $373.67
    CLUTCH-CENTRIFUGAL - 5000130041×1
  • 125000401154Not stocked
    V-belt×1
  • 185000400185
    $12.09
    ENGINE BAR - 5000400185×1
  • 275000400168Not stocked
    Rubber cap×1
  • 305000011455
    $0.44
    SCREW M8 X 35 HX.HD. - 5000011455×2
  • 355000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 385000400169Not stocked
    Pad×1
  • 405000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×8
  • 425000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×2
  • 545000401276Not stocked
    Lifting handle×1
  • 705000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 775000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 845000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×4
  • 935000011470
    $0.11
    SCREW M6 X 20 HX.HD. - 5000011470×1
  • 995000010763
    $0.13
    WASHER M6 - DIN 440 R - 5000010763×2
  • 1265000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×5
  • 1715000400222Not stocked
    Bar×1
  • 1735000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 1755000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×2
  • 1775000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×2
