VP50HW-VIBROPLATE

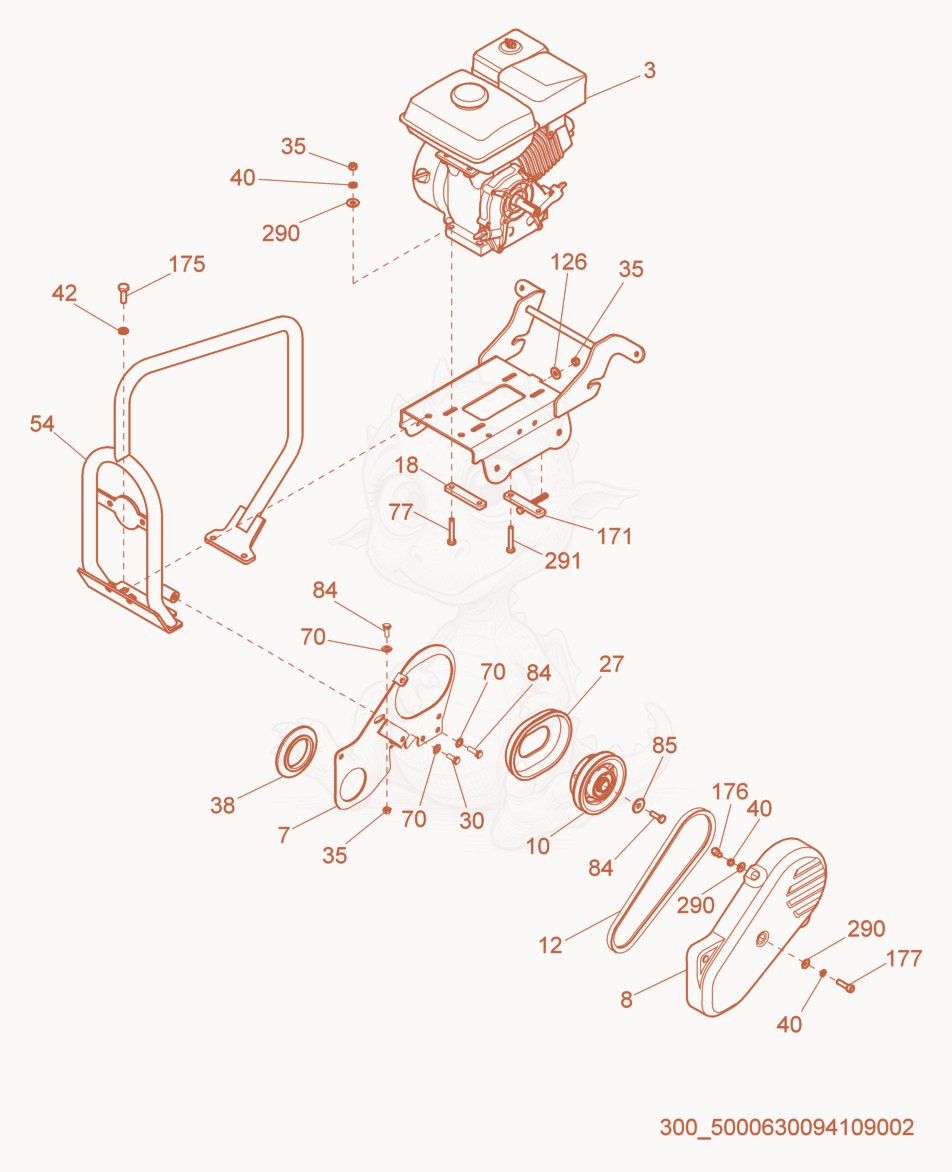

VP50HW Beltguard/Clutch Diagram

Exploded parts diagram of the Beltguard/Clutch of a Wacker Neuson VP50HW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000400906Not stocked
    Engine-Robin×1
  • 75000400221Not stocked
    Beltguard×1
  • 85000400219Not stocked
    Beltguard×1
  • 105000130047
    $448.80
    CLUTCH-CENTRIFUGAL - 5000130047×1
  • 125000400759Not stocked
    V-belt×1
  • 185000400185
    $12.09
    ENGINE BAR - 5000400185×1
  • 275000400168Not stocked
    Rubber cap×1
  • 305000011455
    $0.44
    SCREW M8 X 35 HX.HD. - 5000011455×1
  • 355000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 385000400169Not stocked
    Pad×1
  • 405000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×12
  • 425000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×2
  • 545000401762Not stocked
    Handle×1
  • 705000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 775000011452
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011452×2
  • 845000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×6
  • 855001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 1265000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×1
  • 1715000400222Not stocked
    Bar×1
  • 1755000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×2
  • 1775000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×2
  • 2905000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
  • 2915000011451
    $0.20
    SCREW M8 X 55 HX.HD. - 5000011451×2
