Vibration Plate VPH70

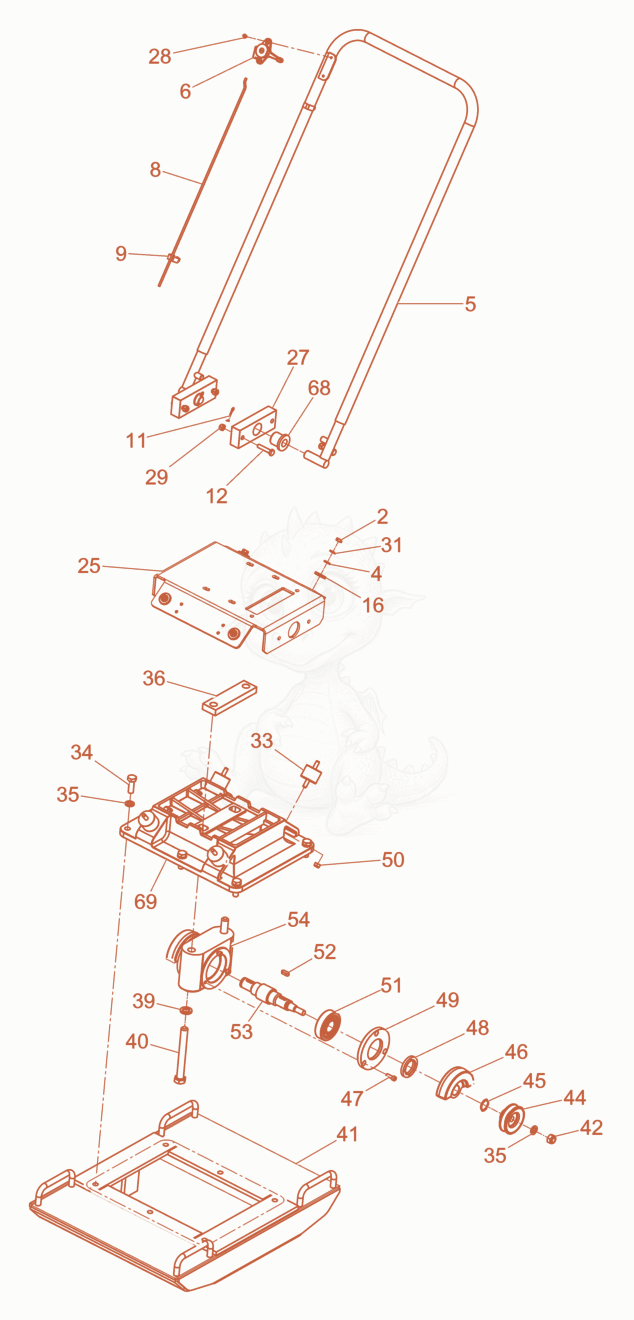

VPH70 Guide Handle/Baseplate Diagram
- NUT M8 8,HEX - 5000010882×4
- WASHER-FLAT,M8,ZINC - 5000010622×8
- 55000056220Not stockedHandle×1
- 65100065652Not stockedThrottle Control×1
- 85000056081Not stockedThrottle cable cpl.×1
- CLAMP RSI25-5/12, CLOSED-CLIP - 5000025314×2
- PIN 4.0 X 40 - 5000010492×2
- SCREW M8 X 40 HX.HD. - 5000011341×4
- WASHER - 5000031632×4
- 255000056234Not stockedEngine mount×1
- 275000056215Not stockedBracket×2
- SCREW M5 X 8 OV.HD.MACH - 5000020984×2
- NUT-LOCK M8 HEX - 5000010367×4
- WASHER-LOCK B8 - 5000012397×4
- SHOCKMOUNT 40 X 30-45SH,FORM A - 5003006101×4
- 341000015381Not stockedHex screw×6
- WASHER-LOCK B12 - 5000012648×7
- 365000056071Not stockedBar×1
- WASHER-LOCK B16 - 5000012650×2
- SCREW M16 X 140 HX HD - 5000029036×2
- 415000055128Not stockedBaseplate×1
- NUT-LOCK M12X1.75 HEX - 5000010366×1
- PULLEY - 5000056213×1
- Circlip(RET.RING-EXT 24MMX1.2MM, - 5002001837×2
- 465003006108Not stockedEccentric weight×2
- SCREW M6 X 20 SOC.HD. - 5000011551×6
- SEAL-SHAFT 1.38 X2.06 X.374,1B - 5002005630×2
- KIT-BEARING COVER REPLACEMENT - 5003009770×2
- 515100068494Not stockedBEARING-CYL.ROLLER,NJ306ETN1 C3×2
- KEY A8 X 7 X 20 - 5002001531×2
- 535000055003Not stockedShaft×1
- 545000055001Not stockedExciter housing×1
- 685003008160Not stockedBushing×2
- 695000056106Not stockedBase×1
