VPR1330-VIBROPLATE

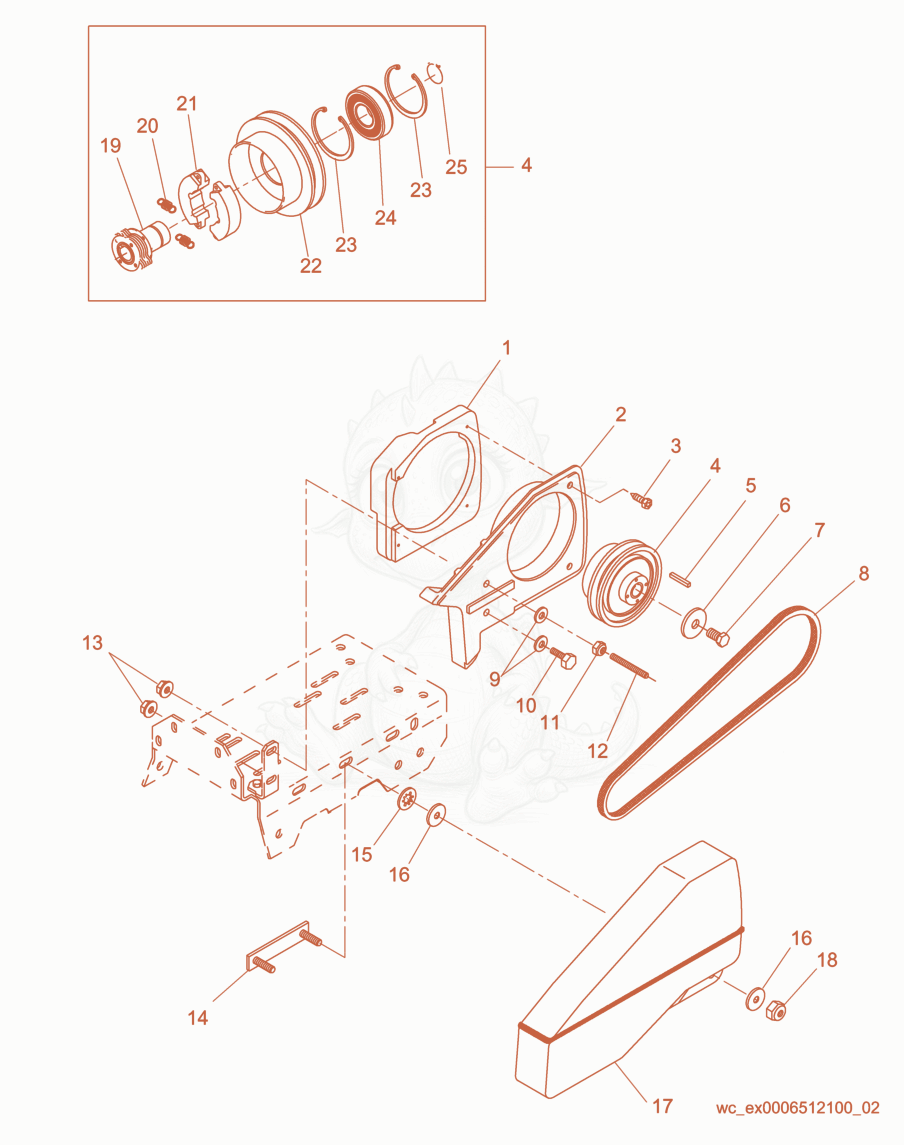

VPR1330 Drive cpl. Diagram

Exploded parts diagram of the Drive cpl. of a Wacker Neuson VPR1330, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000115523Not stocked
    Guard×1
  • 25000081577Not stocked
    Backplate Kit×1
  • 35000079294
    $0.50
    SCREW #10X5/8 SELF TAP,PHILLIP - 5000079294×3
  • 45000030832
    $441.41
    CLUTCH-CENTRIFUGAL W/.75 BORE - 5000030832×1
  • 55000051736
    $1.08
    KEY-SQUARE 3/16 X 1.50 - 5000051736×1
  • 65001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 75000026169
    $0.25
    SCREW 5/16-24 X 3/4,HX.HD. - 5000026169×1
  • 85000027253
    $10.16
    BELT-V A31LI - 5000027253×1
  • 95000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 105000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 115000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 125000073573
    $18.22
    STUD M8 X 2-3/4 ,FULL THREAD - 5000073573×1
  • 135000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 145000078228
    $38.84
    MOUNT-BELT GUARD P-5000112007 - 5000078228×1
  • 155000084556
    $0.66
    WASHER-RETAINING - 5000084556×2
  • 165000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 175000086796
    $420.45
    Beltguard 5000086796×1
  • 185000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×2
  • 195000053804
    $251.41
    HUB-CLUTCH,CENTRIFUGAL - 5000053804×1
  • 205000054527
    $8.54
    SPRING-CENTRIFUGAL CLUTCH - 5000054527×2
  • 215000054526
    $18.39
    SHOE-CENTRIFUGAL CLUTCH - 5000054526×2
  • 225000025363
    $241.32
    DRUM-CENTRIFUGAL CLUTCH - 5000025363×1
  • 235000025364
    $7.89
    RET.RING-INT 2.437 X.078 - 5000025364×2
  • 245000025365
    $43.10
    BEARING-RADIAL BALL,6206 - 5000025365×1
  • 255000025366
    $7.89
    RET.RING-EXT 29MMX1.5MM, - 5000025366×1
