VPR1330-VIBROPLATE

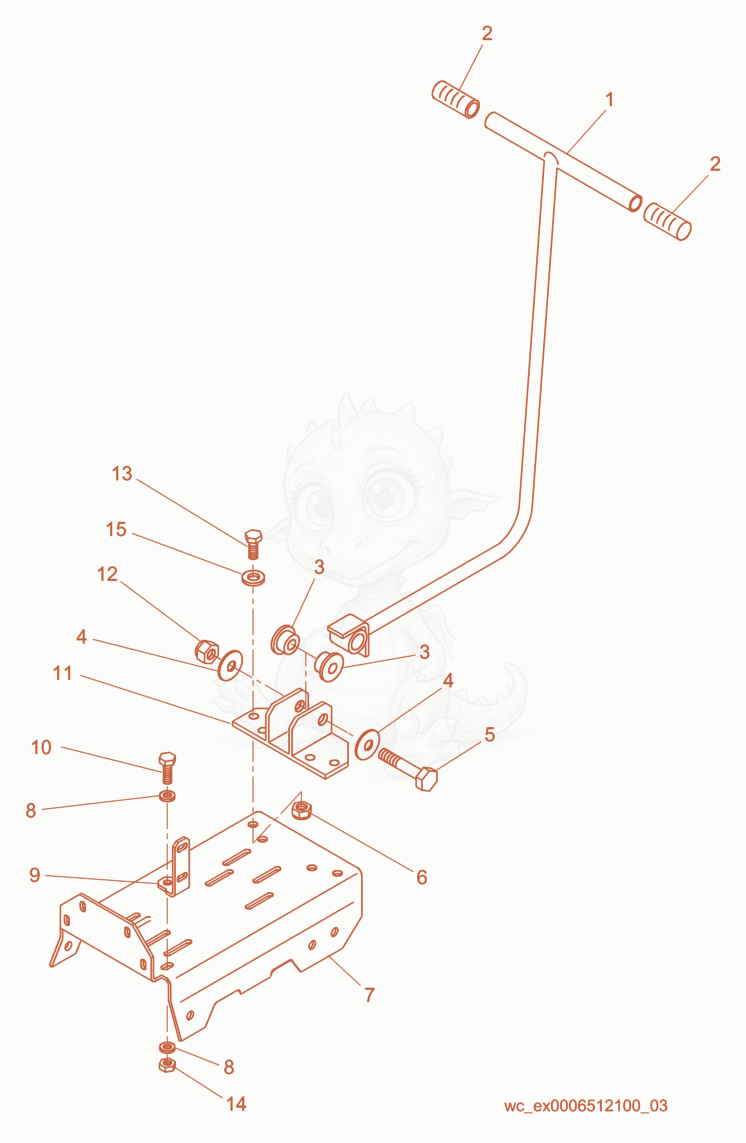

VPR1330 Guide Handle cpl. Diagram

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson VPR1330, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000080711
    $486.55
    NLA GUIDE HANDLE-WELDMENT - 5000080711×1
  • 25002001406
    $2.98
    HANDLE-GRIP - 5002001406×2
  • 35000080705
    $32.90
    NLA BUSHING - 5000080705×2
  • 45000010618
    $0.28
    WASHER B17 FLAT - 5000010618×2
  • 55000011380
    $2.82
    SCREW M16 X 80 HX.HD,GR 8.8,ZINC - 5000011380×1
  • 65000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 75000082538
    $179.84
    NLA PLATE-CONSOLE - 5000082538×1
  • 85000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×2
  • 95000079968
    $16.95
    BRACKET-MOUNT,BACKPLATE - 5000079968×1
  • 105000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×1
  • 115000080707Not stocked
    Handle×1
  • 125000013469Not stocked
    Setscrew×1
  • 135000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×4
  • 145000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 155000010620
    $0.26
    WASHER B13 FLAT - 5000010620×4
