VPR1330-VIBROPLATE

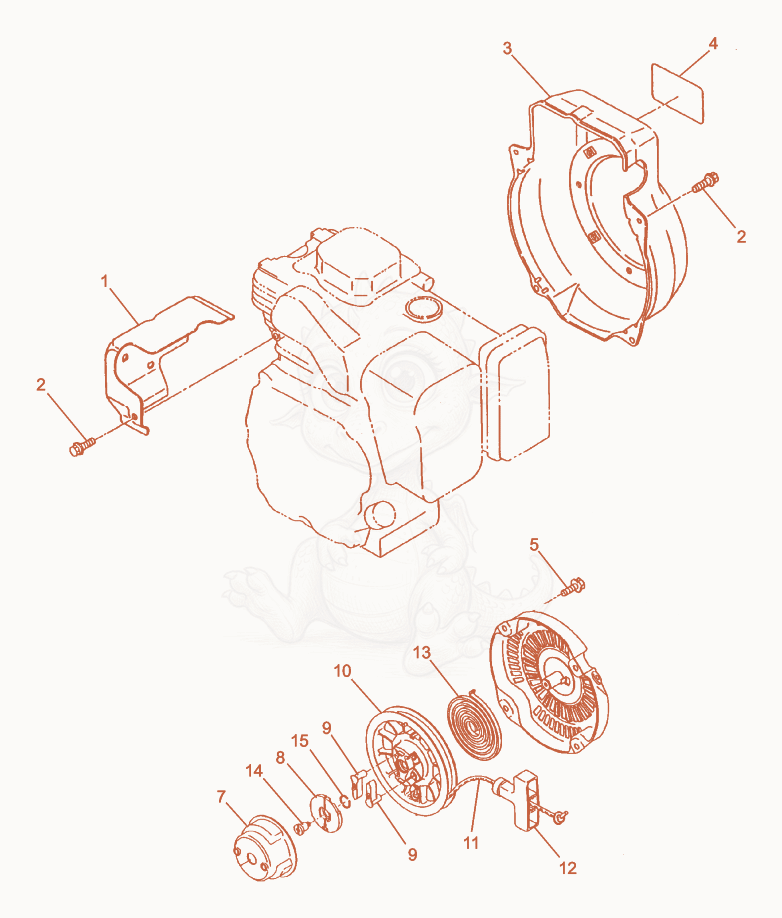

VPR1330 Starter/Blower Housing Diagram

Exploded parts diagram of the Starter/Blower Housing of a Wacker Neuson VPR1330, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000084371
    $41.01
    COVER-HEAD - 5000084371×1
  • 25000053612Not stocked
    Screw×5
  • 35000117254
    $229.08
    HOUSING-BLOWER - 5000117254×1
  • 45000117255
    $11.54
    Label - 5000117255×1
  • 55000030814Not stocked
    Screw×4
  • 65000117256
    $257.64
    STARTER-RECOIL,COMPLETE - 5000117256×1
  • 75000117262
    $55.74
    PULLEY-STARTER - 5000117262×1
  • 85000117263
    $12.36
    GUIDE-RATCHET - 5000117263×1
  • 95000117261
    $13.96
    RATCHET-PAWL - 5000117261×2
  • 105000117258
    $65.47
    REEL-STARTER - 5000117258×1
  • 115000117259
    $25.52
    ROPE-STARTER - 5000117259×1
  • 125000117260
    $19.86
    HANDLE-STARTER - 5000117260×1
  • 135000117257
    $33.57
    SPRING-SPIRAL - 5000117257×1
  • 145000083891
    $5.76
    SCREW-SET - 5000083891×1
  • 155000083889
    $7.36
    SPRING-FRICTION,RECOIL STARTER - 5000083889×1
