VPR1330-VIBROPLATE

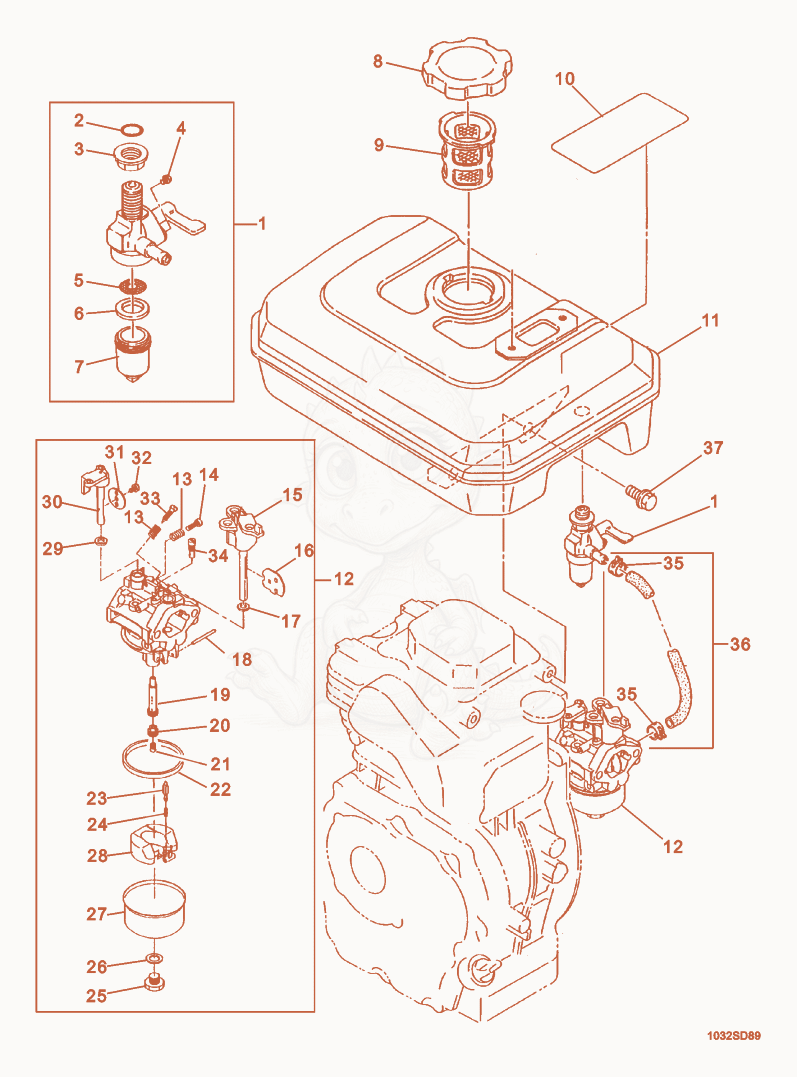

VPR1330 Fuel Tank/Carburetor Diagram
- STRAINER-FUEL - 5000084380×1
- O-ring - 5000084384×1
- Nut - 5000084383×1
- SCREW-PANHEAD - 5000084385×2
- ELEMENT-FILTER SCREEN - 5000053662×1
- 65000084381Not stockedGasket×1
- 75000084382Not stockedFilter×1
- 85000054784Not stockedTank cover×1
- FILTER-ENGINE FUEL - 5000053660×1
- Label - 5000110894×1
- TANK-FUEL,COMPLETE - 5000117264×1
- CARBURETOR COMPLETE - 5000117266×1
- Spring - 5000053699×2
- SCREW-ADJUST - 5000084402×1
- LEVER-CHOKE - 5000117270×1
- VALVE-CHOKE - 5000117268×1
- Ring - 5000117273×1
- PIN-FLOAT - 5000084396×1
- JET-MAIN NOZZLE - 5000117271×1
- GUIDE-HOLDER - 5000084404×1
- JET-MAIN - 5000117272×1
- PACKING (CHAMBER) - 5000084350×1
- VALVE-NEEDLE - 5000084395×1
- Spring - 5000084403×1
- BOLT - 5000084394×1
- PACKING - 5000084398×1
- FLOAT-CHAMBER - 5000084397×1
- Float - 5000084399×1
- SEAL - 5000084501×2
- VALVE-THROTTLE CONTROL - 5000077417×1
- Screw - 5000117267×1
- CONTROL-ADJUSTER - 5000084391×1
- JET-PILOT - 5000117269×1
- clamp - 5000075269×2
- HOSE-FUEL - 5000117265×1
- SCREW M6 X 14,HEX.FLANGE - 5000053648×4
