VPY1750 VIBROPLATE,STD.

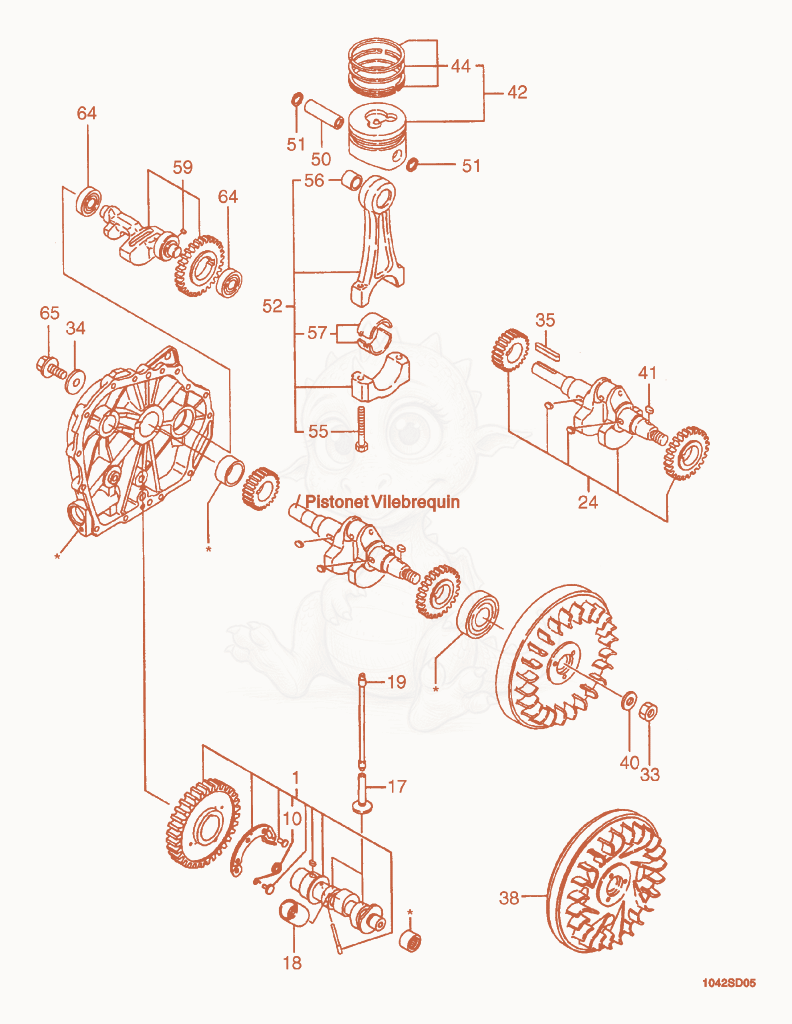

VPY1750 Piston/Crankshaft Diagram
- CAMSHAFT ASSEMBLY - 5000119699×1
- spring - 5000119743×1
- TAPPET-ENGINE VALVE LIFTER - 5000073671×2
- tappet - 5000119744×1
- PUSHROD - 5000096737×2
- CRANKSHAFT ASSEMBLY - 5000119698×1
- NUT M16 X 1.5,HEX. - 5000073675×1
- washer - 5000073674×1
- KEY 4.7 X 30 - 5000073669×1
- FAN-WHEEL - 5000096733×1
- Washer - 5000073678×1
- KEY 4 X 4 X 12 - 5000073670×1
- PISTON-W/RINGS - 5000119696×1
- SET-PISTON RINGS - 5000085739×1
- PIN - 5000096727×1
- RET.RING - 5000085602×2
- CONNECTING ROD COMPLETE,STEEL - 5000153431×1
- bolt - 5000119749×2
- BUSHING-PISTON PIN - 5000119750×1
- BEARING-CRANKPIN - 5000119747×1
- SHAFT-BALANCER - 5000153693×1
- bearing - 5000085603×2
- bolt - 5000119748×1
- BEARING-PIN U.S.=0.25 - 5000119724×1
- BEARING-PIN U.S.=0.50 - 5000119740×1
