VPY70 Vibratory Plate

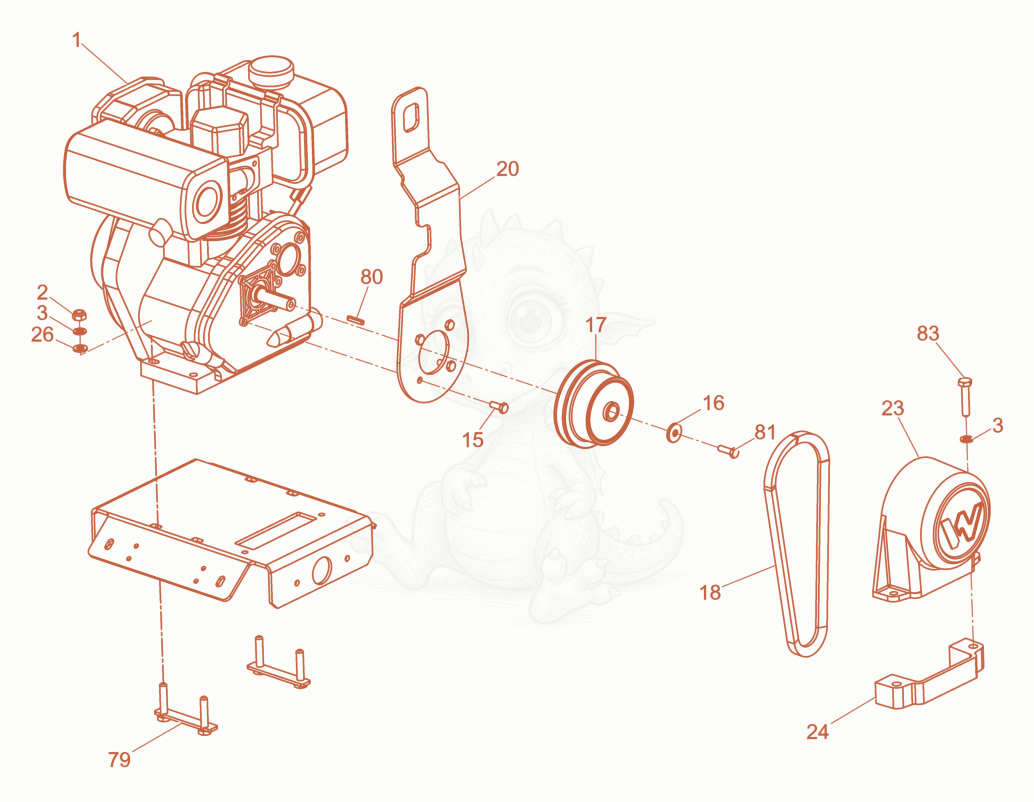

VPY70 Beltguard/Clutch Diagram

Exploded parts diagram of the Beltguard/Clutch of a Wacker Neuson VPY70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000402069Not stocked
    Engine-Yanmar×1
  • 25000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 35000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×6
  • 155000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
  • 165000031632
    $1.33
    WASHER - 5000031632×1
  • 175000405156Not stocked
    Clutch×1
  • 185000114178
    $7.95
    BELT-V A30 - 5000114178×1
  • 205000056678
    $164.96
    Lifting Bracket - 5000056678×1
  • 235003007011
    $120.32
    BELTGUARD - 5003007011×1
  • 245000056383Not stocked
    Adapter×1
  • 265000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 795100052565Not stocked
    Engine Bar×2
  • 805000402754Not stocked
    Key×1
  • 815000072017
    $0.65
    SCREW 5/16-24 X 1 HX,HD,CAP,GR5,A2K - 5000072017×1
  • 835000011320
    $1.51
    SCREW M10 X 50 HX.HD. - 5000011320×2
