WL20e

WL20E(A09-01) wheel cover Diagram

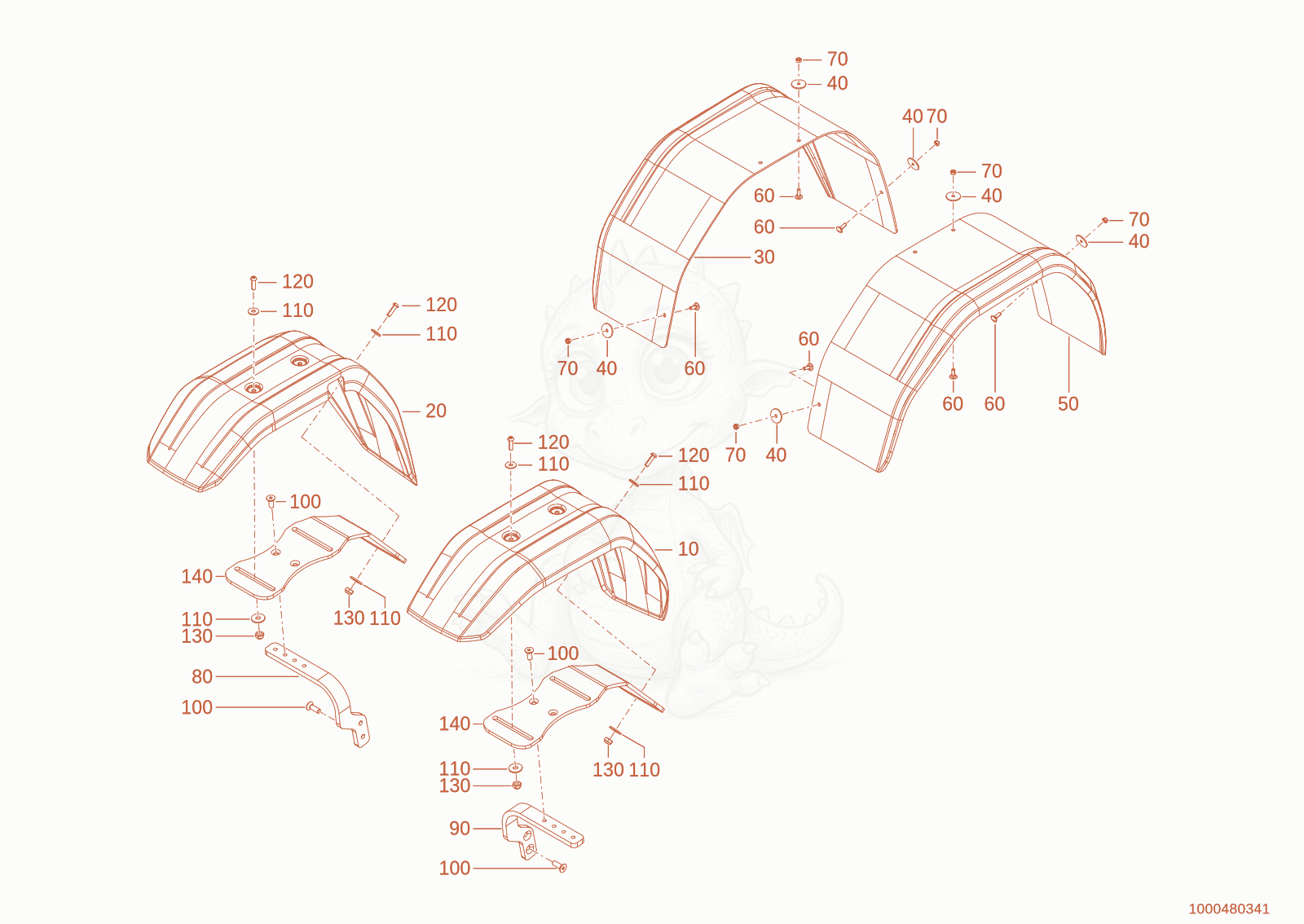

Exploded parts diagram of the wheel cover of a Wacker Neuson WL20E(A09-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000503140Not stocked
    wheel cover×1
  • 201000503141Not stocked
    wheel cover×1
  • 301000429781Not stocked
    wheel cover×1
  • 401000222996
    $1.45
    u-washer - 1000222996×8
  • 501000429783Not stocked
    wheel cover×1
  • 601000048572Not stocked
    flat head screw×8
  • 701000013022Not stocked
    hexagon nut×8
  • 801000503124Not stocked
    Bracket×1
  • 901000503123Not stocked
    Bracket×1
  • 1001000224077
    $1.34
    SCREW - 1000224077×8
  • 1101000124882
    $1.11
    Body washer 10,5x30x2,5 - 1000124882×12
  • 1201000444942Not stocked
    ovalhead screw×6
  • 1301000222526
    $1.19
    NUT-HEXAGON - 1000222526×6
  • 1401000443292
    $279.16
    Bracket - 1000443292×2
