Articulated wheel loader WL28

WL28 working hydraulic Diagram

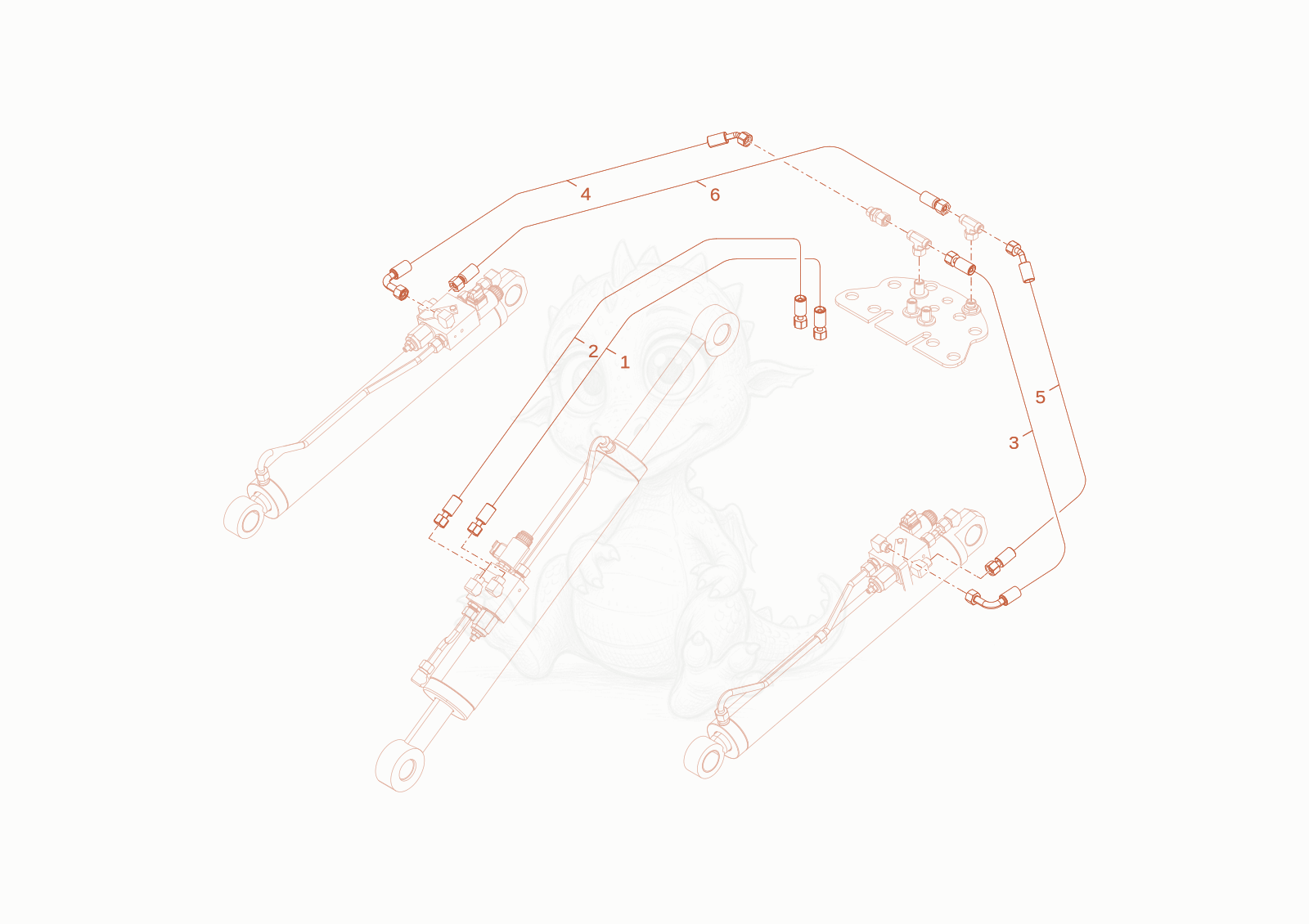

Exploded parts diagram of the working hydraulic of a Wacker Neuson WL28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000363232Not stocked
    Hose×1
  • 21000363233Not stocked
    Hose×1
  • 31000370409Not stocked
    Hose×1
  • 41000370410Not stocked
    Hose×1
  • 51000368717Not stocked
    Hose×1
  • 61000370411Not stocked
    Hose×1
