WN wheel loader WL30

WL30 insulating mat cabine Diagram

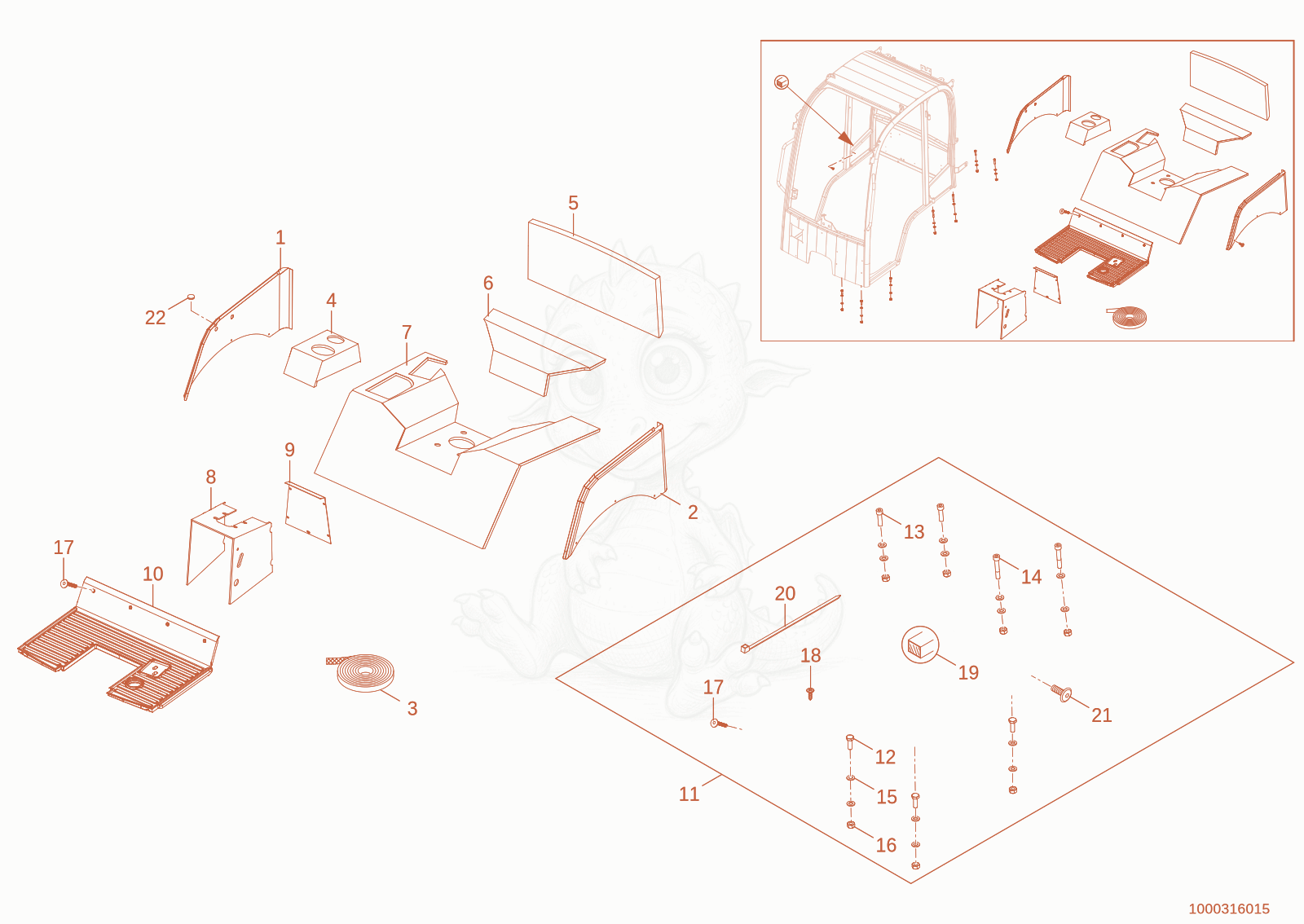

Exploded parts diagram of the insulating mat cabine of a Wacker Neuson WL30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000208192
    $504.74
    Sidecover 1000208192×1
  • 21000208193
    $337.70
    Sidecover 1000208193×1
  • 31000215422
    $46.56
    BUR STRAP - 1000215422×1
  • 41000213412
    $648.34
    TRIM - 1000213412×1
  • 51000208443
    $656.99
    Lining - 1000208443×1
  • 61000208445
    $539.85
    Lining - 1000208445×1
  • 71000249805
    $2,127.79
    TRIM-CAB - 1000249805×1
  • 81000208432
    $1,067.59
    Lining - 1000208432×1
  • 91000213354
    $292.93
    Cover - 1000213354×1
  • 101000232084
    $625.80
    Mat Rubber 1000232084×1
  • 111000207246
    $779.88
    Mountingsetsubassembly 1000207246×1
  • 121000015364Not stocked
    hex screw×6
  • 131000223842
    $3.95
    INNER HEXAGON SCREW - 1000223842×4
  • 141000223845
    $1.96
    INNER HEXAGON SCREW - 1000223845×4
  • 151000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×28
  • 161000013022Not stocked
    hexagon nut×16
  • 171000065252Not stocked
    insulating washer×4
  • 181000085563
    $0.98
    countersunk screw - 1000085563×16
  • 191000386704Not stocked
    strap×3
  • 201000193825
    $1.12
    cable strap - 1000193825×5
  • 211000187775
    $1.11
    SCREW - 1000187775×6
  • 221000228498
    $2.45
    rubber plug - 1000228498×3
