WL300e

WL300E(A15-01) wiring harness Diagram

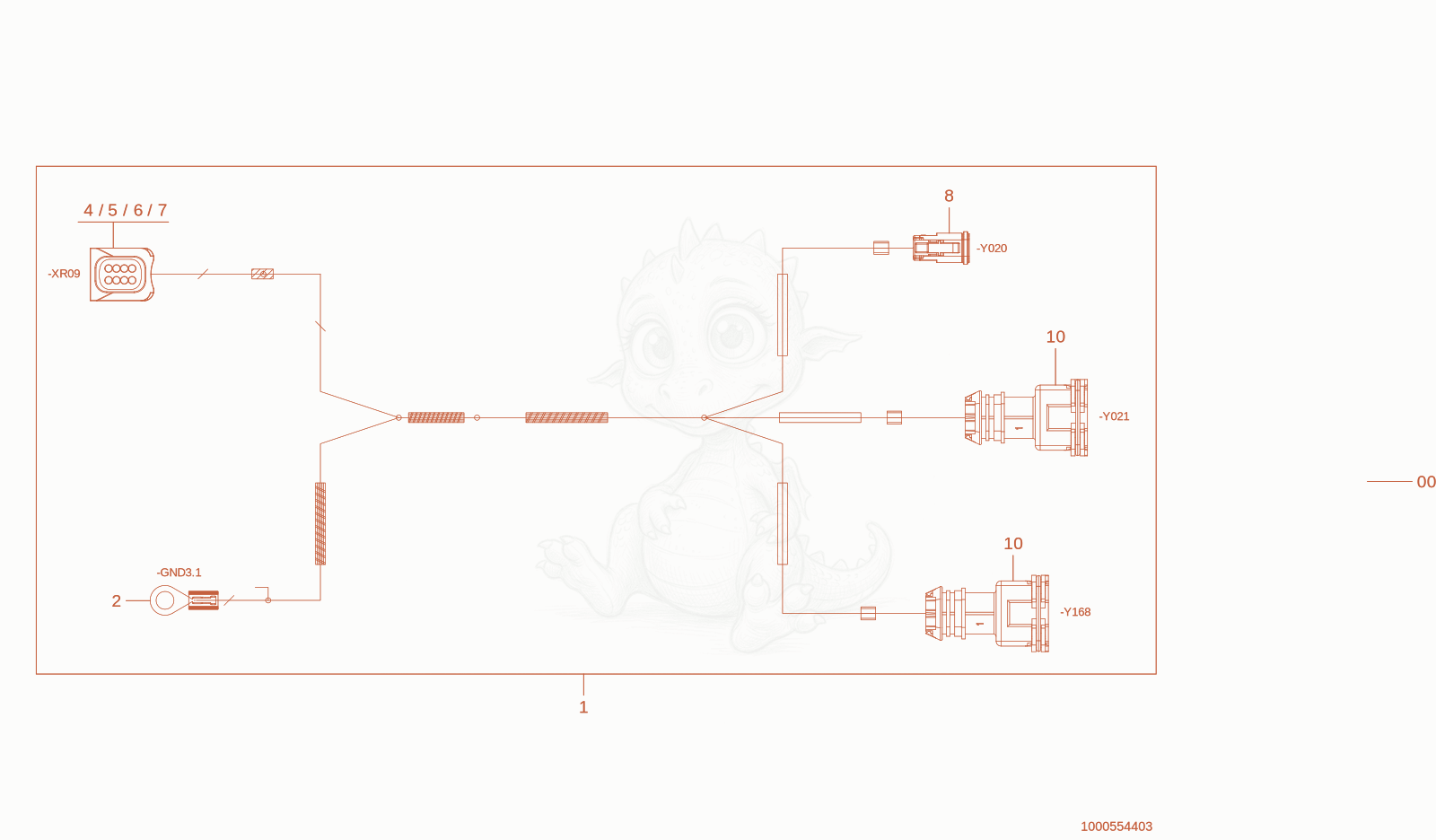

Exploded parts diagram of the wiring harness of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000549976Not stocked
    wiring harness×1
  • 21000050028Not stocked
    cable lug×1
  • 41000504290Not stocked
    plug housing×1
  • 51000442912
    $1.37
    pin contact - 1000442912×3
  • 61000104740
    $1.41
    lock plug - 1000104740×5
  • 71000104738
    $1.51
    seal - 1000104738×3
  • 81000494189Not stocked
    plug housing×1
  • 101000483960Not stocked
    plug×2
