WL300e

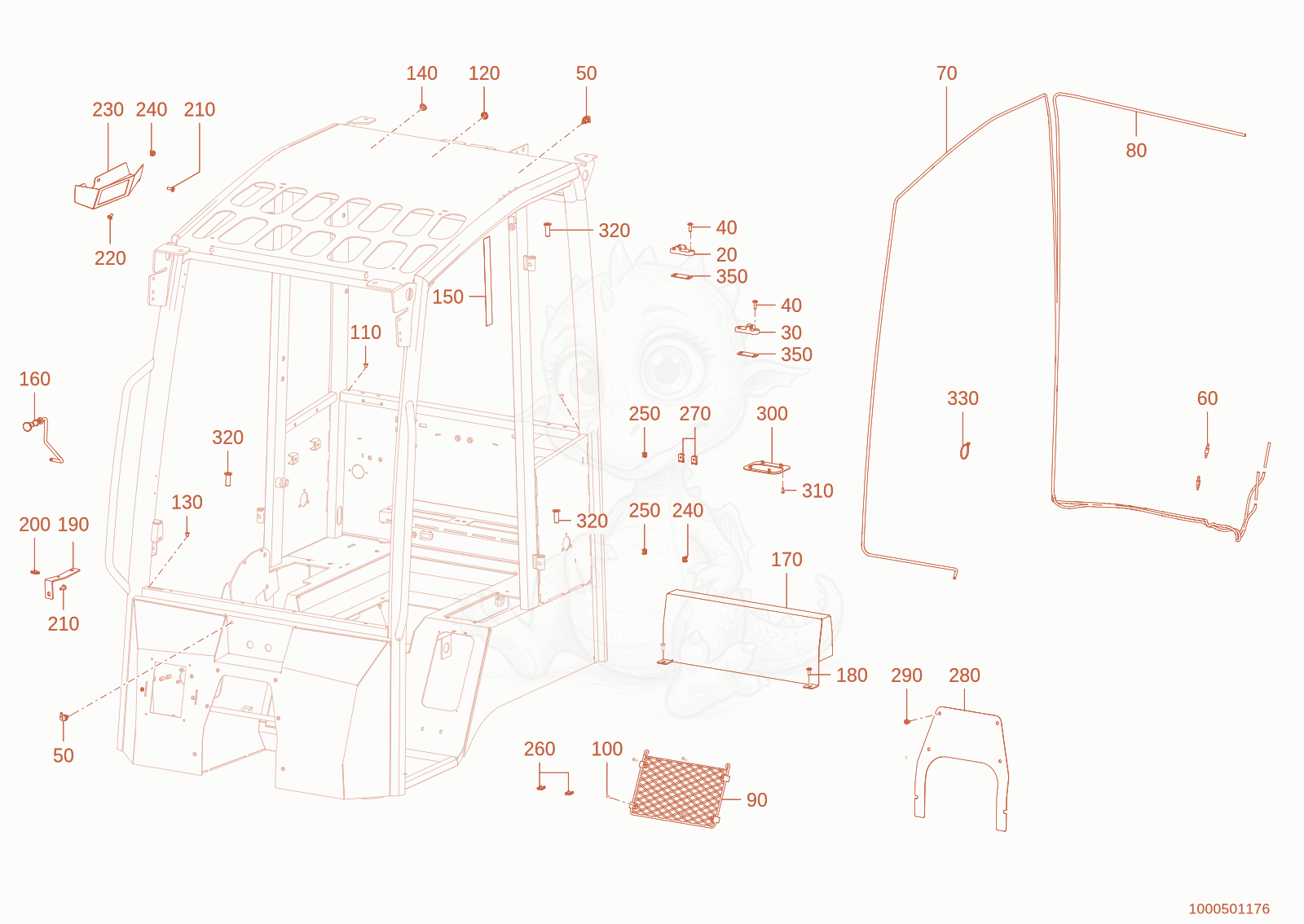

WL300E(A15-01) mounting set cabine Diagram

Exploded parts diagram of the mounting set cabine of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000497602
    $25.81
    Locking part for window opener right - 1000497602×1
  • 301000455850Not stocked
    Lever×1
  • 401000313423
    $5.29
    SCREW - 1000313423×4
  • 501000243865
    $9.14
    Hose duct - 1000243865×2
  • 601000198952
    $45.84
    Valve - 1000198952×2
  • 701000497568Not stocked
    water hose×1
  • 801000497567Not stocked
    water hose×1
  • 901000249803
    $92.33
    NET - 1000249803×1
  • 1001000052485Not stocked
    countersunk screw×4
  • 1101000372059Not stocked
    plug×2
  • 1201000270047
    $1.84
    screw - 1000270047×1
  • 1301000372059Not stocked
    plug×2
  • 1401000075523
    $2.92
    blind plug - 1000075523×1
  • 1601000497604Not stocked
    antilock rod×1
  • 1701000497587Not stocked
    cover×1
  • 1801000313423
    $5.29
    SCREW - 1000313423×2
  • 1901000497571Not stocked
    angle bracket×1
  • 2001000451191
    $2.22
    NUT - 1000451191×1
  • 2101000313423
    $5.29
    SCREW - 1000313423×3
  • 2201000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×1
  • 2301000497599Not stocked
    shift console×1
  • 2401000251957
    $1.19
    cage nut - 1000251957×3
  • 2501000015426Not stocked
    cage nut×2
  • 2601000451191
    $2.22
    NUT - 1000451191×2
  • 2701000316099Not stocked
    nut×2
  • 2801000497597Not stocked
    cover×1
  • 2901000313423
    $5.29
    SCREW - 1000313423×6
  • 3001000497578Not stocked
    plate×1
  • 3101000324190Not stocked
    blind rivet×2
  • 3201000297225
    $2.01
    bearing bush - 1000297225×4
  • 3301000331999Not stocked
    cable strap×2
  • 3401000515775Not stocked
    shim×2
