WL300e

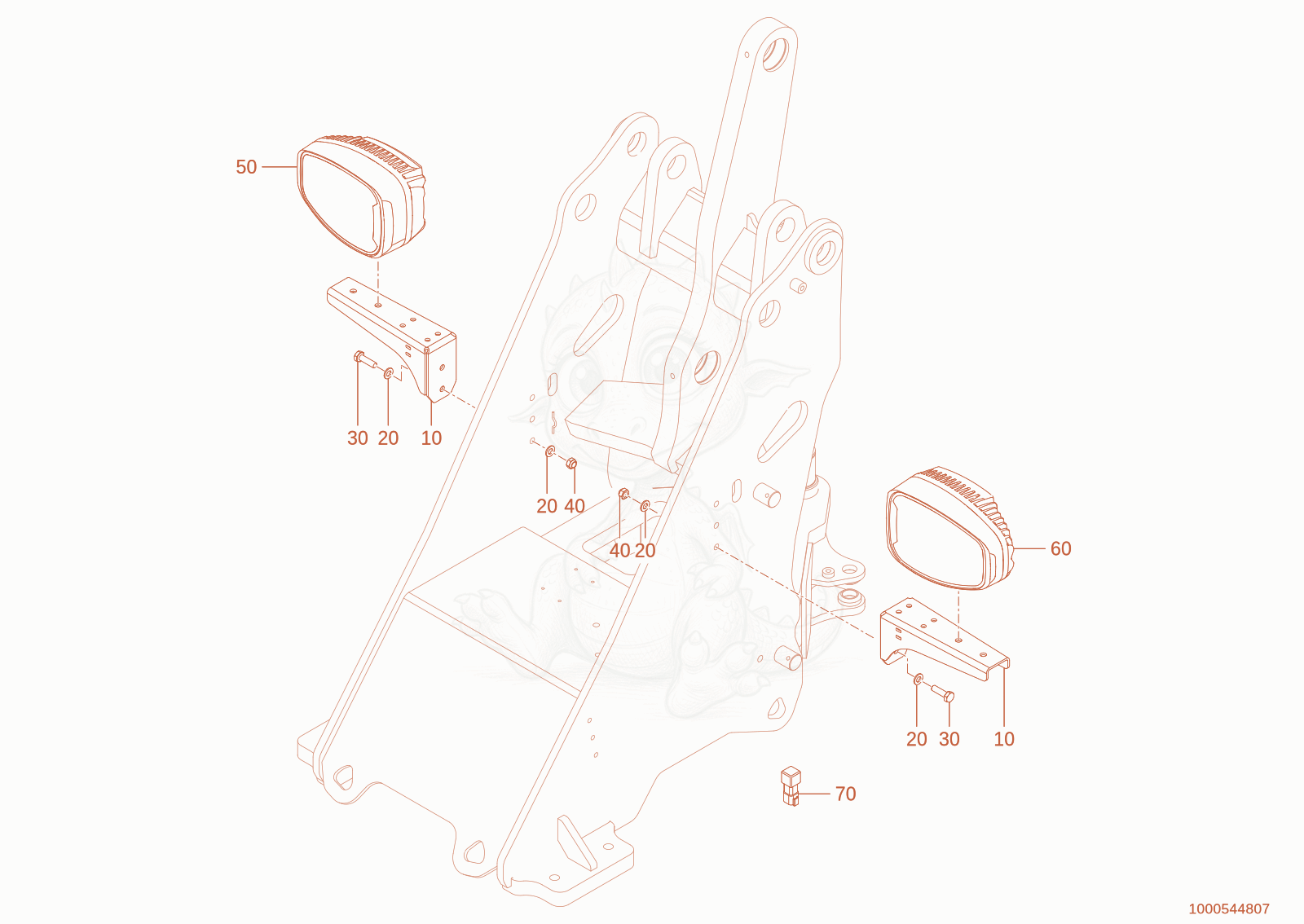

WL300E(A15-01) FRONTLIGHTS Diagram

Exploded parts diagram of the FRONTLIGHTS of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000505302Not stocked
    bracket headlight×2
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 301000015346Not stocked
    hex screw×4
  • 301000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 401000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 501000532158Not stocked
    headlight×1
  • 501000532162Not stocked
    headlight×1
  • 601000532160Not stocked
    headlight×1
  • 601000532164Not stocked
    headlight×1
  • 701000435777Not stocked
    connection×1
