WL300E(A15-01) mounting set cabine Diagram

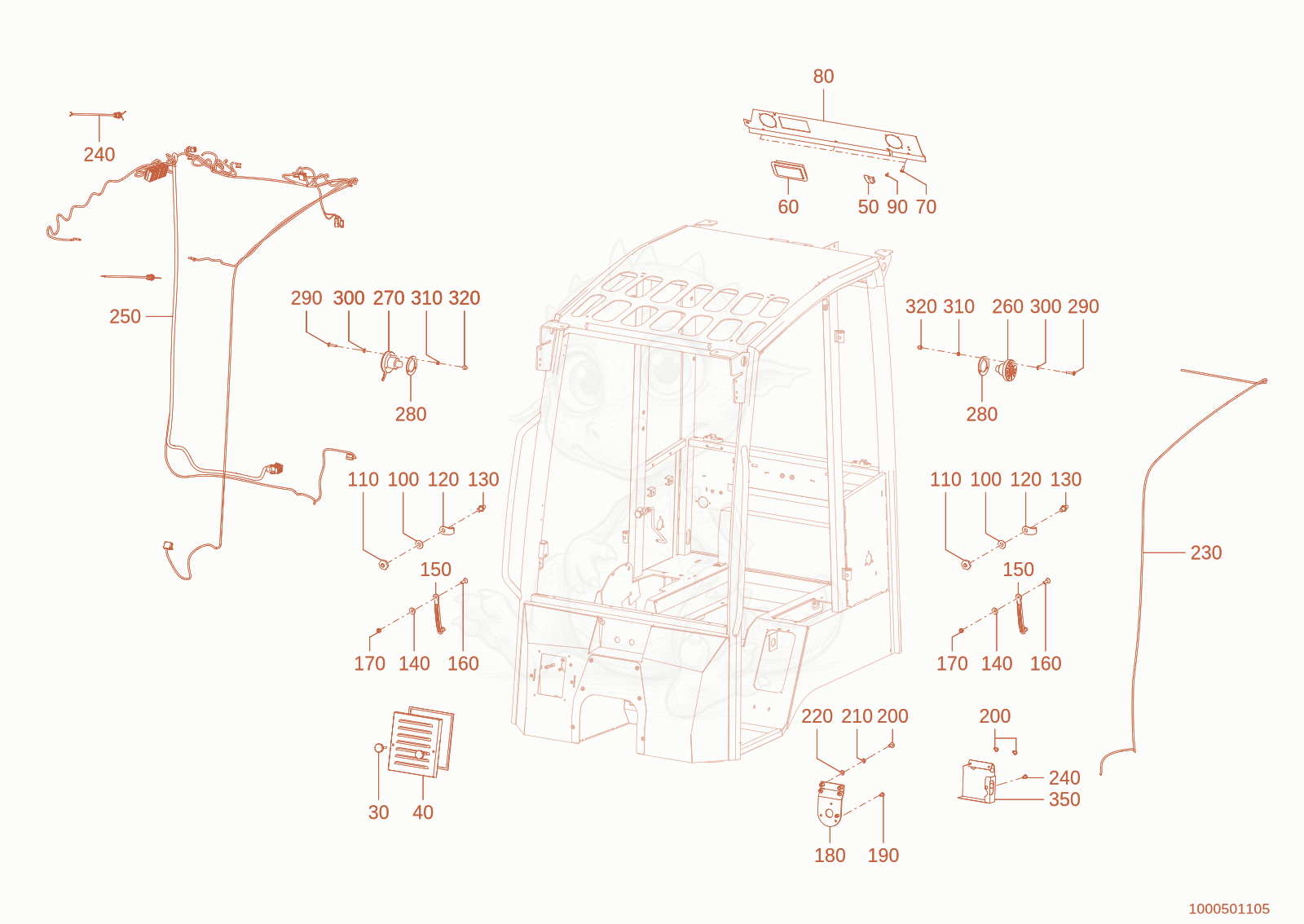

Exploded parts diagram of the mounting set cabine of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000232096Not stocked
    foam strap×1
  • 301000061272Not stocked
    grooved screw×1
  • 401000497554Not stocked
    airoutput screen×1
  • 501000124822
    $19.56
    cloth hook - 1000124822×1
  • 601000213491
    $42.16
    Light - 1000213491×1
  • 701000313423
    $5.29
    SCREW - 1000313423×3
  • 801000497230Not stocked
    cab trim×1
  • 901000248703
    $2.64
    blind rivet - 1000248703×1
  • 1001000004273
    $0.97
    WASHER - 1000004273×2
  • 1101000317566Not stocked
    thread plate×2
  • 1201000075584
    $3.16
    BRACKET - 1000075584×2
  • 1301000327097Not stocked
    catch bolt×2
  • 1401000255489
    $4.72
    WASHER - 1000255489×2
  • 1501000004275Not stocked
    door hinge×2
  • 1601000174473
    $2.31
    x-1000021779 COUNTERSUNK SCREW - 1000174473×2
  • 1701000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 1801000497561Not stocked
    Bracket×1
  • 1901000313423
    $5.29
    SCREW - 1000313423×3
  • 2001000347574Not stocked
    ovalhead screw×2
  • 2101000461577Not stocked
    bushing×2
  • 2201000147300
    $1.03
    WASHER - 1000147300×2
  • 2301000497643Not stocked
    extension cable×1
  • 2401000410004Not stocked
    connection cable×2
  • 2501000458692Not stocked
    wiring harness×1
  • 2601000089459
    $53.84
    DOOR FASTENER - 1000089459×1
  • 2701000243747
    $136.27
    DOOR FASTENER - 1000243747×1
  • 2801000124797
    $11.44
    rubber disc - 1000124797×2
  • 2901000317564Not stocked
    ovalhead screw×6
  • 3001000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×6
  • 3101000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
  • 3201000073525
    $1.49
    cover cap - 1000073525×6
  • 3301000313423
    $5.29
    SCREW - 1000313423×2
  • 3401000313423
    $5.29
    SCREW - 1000313423×1
  • 3501000515229Not stocked
    cover plate×1
